Specifications
real time monitoring and control the ambiancerelative humidity by control a humidifier or dehumidifier
high accuracy

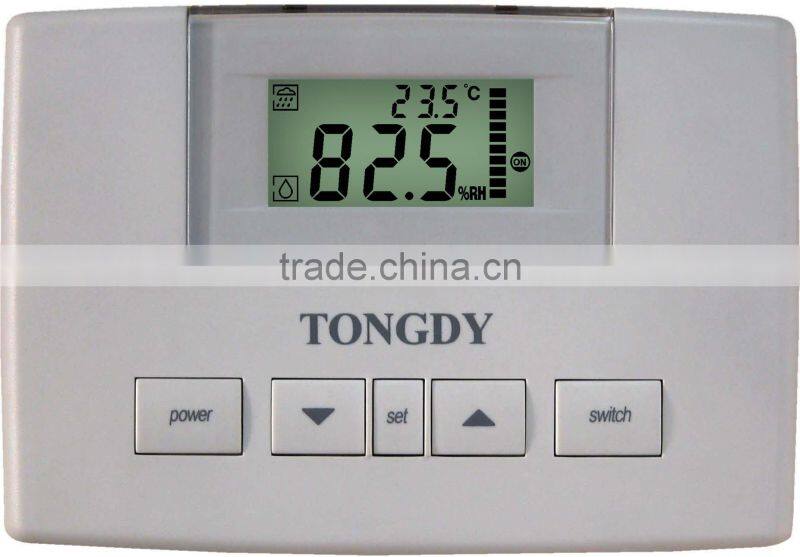

Wholesale RS485 output temperature humidity controller ¨ Temperature Humidity Controller Features
Designed for monitoring andcontrol the ambiance
relative humidity by control a humidifieror
dehumidifier
Temperature detection and controloptional
Microprocessor makesdetection and controlling
more accurately
Providetwo accuracies types with different
accuracysensors
LCDcan displayworking status such as %RH,
temperature, set point, anddevice mode, etc.
Makes reading andoperating easy and accurate
All models featureuser-friendly setting buttons
Enoughparameters setup let the controller meeting
wide range application. All setup will be held even if
them power failure
Lock function avoids wrong operation andmakes
setting to be held
Provideone or two max. 5 amp dry contact outputs.
Infrared Remote Control (optional)
Blue backlight (optional)
RS485 communication interface (optional)
Externalsensors (optional)
We alsoprovide other wall mounting and duct mounting humidity controllers, please seethe high accuracy hygrostat THP/TH9-Hygro series and THP –Hygro16 Plug-and-Playhigh-power humidity controller.
¨ Models
Product Name | Model | Description |
Humidity Controller Power supply: -(A)/(B)/(C) A: 230VAC B: 110VAC C: 24 VAC | F2000LB-H1-(C ) | Monitoring temperature, setting humidity, 1 ON/OFF triac output to control a humidifier or a dehumidifier. |
F2000P-TH-K01-(A)/(B)(C) | Detection temperature and humidity, 1XON/OFF relay output to control a humidifier or dehumidifier. The max. current is up to 5A. | |
F2000P-TH-K01-a | High accuracy for F2000P-TH-K01 | |
F2000P-TH-K02-(A)/(B)(C) | Detection temperature and humidity, 2 ON/OFF relay outputs to control humidifier/ dehumidifier and a cooling/heating device. The max. current is up to 5A. | |
F2000P-TH-K02-a | High accuracy for F2000P-TH-K02 | |
F2000P-TH-K01-WT-(A)/(B)(C) | High accuracy version. Detection temperature and humidity, 1XON/OFF relay output to control a humidifier or dehumidifier., It uses an external compositive digital sensor (WT) | |
F2000P-TH-K02-WT-(A)/(B)(C) | High accuracy version. Detection temperature and humidity, 2 ON/OFF relay outputs to control humidifier/ dehumidifier and a cooling/heating device. It uses the external compositive digital sensor (WT) | |
Humidity Controller with RS485 interface | F2000PC-TH-K01-(A)/(B)(C) | High accuracy version. Detection temperature and humidity, 1XON/OFF relay output to control a humidifier or dehumidifier. RS485 communication interface. |
F2000PC-TH-K02-(A)/(B)(C) | High accuracy version. Detection temperature and humidity, 2XON/OFF relay outputs to control a humidifier/dehumidifier and a AC device or a fan. RS485 communication interface. | |
Split Humidity Control Unit | F2000PC-TH-01-TSM-(A)/(B)(C) | Humidity controller with temperature detection, it’s used with a external sensor box (wall mounting type or duct type) together via RS485 connection |
F2000PC-TH-02-TSM-(A)/(B)(C) | Temperature &humidity controller , it’s used with a external sensor box (wall mounting type or duct type) together via RS485 connection | |
External sensor box F2000TSM-TH-M101-N | Wall mounting external sensor box with the humidity sensor inside. It must be connected with F2000PC-TH-01-TSM by RS485. The maximum connecting length is 100 meters. | |
External sensor box F2000TSM-TH-M201-N | Wall mounting external sensor box with the humidity& temperature sensors inside. It must be connected with F2000PC-TH-02-TSM by RS485. The maximum connecting length is 100 meters. | |
External sensor box F2000TSM-TH-D101-N | Duct type of external sensor box with the humidity sensor inside. It can be put into an air duct and must be connected with F2000PC-TH-01-TSM by RS485. | |
External sensor box F2000TSM-TH-D201-N | Duct type of external sensor box with the humidity sensor inside. It can be put into an air duct and must be connected with F2000PC-TH-02-TSM by RS485. | |
Options for Above Models | ||
Accessories | Back light-EL | Blue back light displaying |
Remote receiving-R | Remote control humidity with the infrared hand held controller | |
Specifications
| Power supply | 230VAC/110VAC/24VAC selectable at placing the order |
| |||
| Output | F2000LB-H1: triac resource output F2000P-TH series: 5A relay for the On/Off output F2000PC-TH-K01/K02: 5A relay for the On/Off output |
| |||
| Displaying | LCD |
| |||
| Connection length between the controller with the external sensor box | Maximum 100 meters |
| |||
| Net weight of the controller | F2000LB-H1: 230g F2000P-TH Series: 280g | ||||
| Dimensions | F2000LB: 120mm(L)×90mm(W)×24mm(H) F2000P-TH: 120mm(L)×90mm(W)×32mm(H) | ||||
| Mounting standard | Wall mounting in the wire box of 2”×4” or 65mm×65mm | ||||
Sensors spec. | Temperature | Humidity |
| |||
Accuracy | ±0.5°C ±0.4°C-high accuracy version | ±5%RH (30%-70%RH) ±4% RH (20%-80%RH)- high accuracy version |
| |||
Measuring range | 0°C~60°C | 0~99%RH 0~100%RH-high version |
| |||
Display resolution | 5°C 0.1°C-high version | 1% RH 0.1%RH-high version |
| |||
Stability | ±0.1°C | ±1%RH per year |
| |||
Storage environment | 10°C-50°C, 10%RH~80%RH |
| ||||
¨
