Brand Name Tongdy
Model Number F2000IAQ-CO2-31XX/51XX

Specifications

Real-time monitoring carbon dioxide (CO2) measurements during 0 to 20,000ppm range
Optional real-time monitoring temp.,RH%

CO2 Detector

CO2 Detector

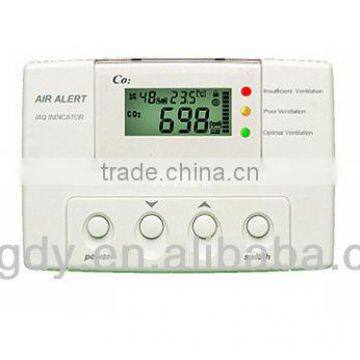

F2000IAQ-CO2 detector/Indicator is used to monitor and alarm CO2 level and room temperature. Relative humidity detection and display can be as an option. Other options can be provided to users: RS485 communication interface with independent address; one dry contact output to control a ventilation device.

Especial design for schools, kindergartens, office buildings, conference rooms, rest rooms as well as other public places



u  Built-in NDIR CO2 module, 15 years long life.

u  ABC Logic self calibration algorithm for CO2 sensor.

u  Real-time detect and display room CO2 and temperature

u  3 LED indicator lights following three different CO2 ranges to indicate

ambiance ventilation situation: Optimal Ventilation; Poor Ventilation and Insufficient Ventilation.

u  Optional humidity detection and display



    CO2 Detector Features



u  Real-time detecting and display CO2 level during 0ppm to 20,000ppm CO2 range; Also detecting room temperature from 5 to 45°C

u  Optional real-time humidity from 5%RH to 95%RH

u  NDIR CO2 sensor technology of infrared self diffusion, 15 years lifetime

u  Self Calibration Algorithm makes it in using without calibration amending

u  The three measured CO2 ranges for 3-LED indicator lights selectable by end users

u  LED’s brightness adjustment

u  Optional 1X dry contact output or one 0~10VDC output to control a ventilation device

u  Easy preset CO2 level for buzzer alert (optional)

u  Optional RS485 interface to connect to a PC or another system (optional)



 Specifications

Gas detected

Carbon Dioxide (CO2)

Sensing element

Non-Depressive Infrared Detector (NDIR)

Temperature sensor

NTC

Temperature correction

Self compensation

CO2 NDIR life

15 years

Consumption

3.5W/ Max, 2.5W/ Average

Accuracy@25°C(77°F)

±40ppm + 3% of reading

Stability

<2% of FS over life of sensor (15 yr typical)

Warm up time

2 hours (first time)

2 minutes (operation)

CO2 measuring range

0~2000ppm, which is default value

0~(1,000~20,000)ppm, programmable selection

CO2 setting & Display resolution

1ppm

Temperature measuring range

0~50°C(32~122°F)

Temperature setting range

5~45°C(41~113°F)

Option: 1X dry contact output

Rated currency for contact point: 3A220VAC/30VDC, resistance load

Option: RS485 communication interface

9600/14400/19200(default)/28800/38400bps rates selectable by program,15KV protection for static, independent address setting

Operation condition

0~50°C (32~122°F), 0~95%RH without condensing

Power supply

220VAC/110VAC or 24VAC 50/60HZ±10%

Weight

380g

Dimensions

130mm×90mm×40mm

Connections Interface

Locate in interface of connection

Installment standard

65mm×65mm or 2”×4” wire box

Wiring standard

Wire section area<1.5mm2

Approval Standard

CE-Approval

Programming and selection

DIP switches inside and external push-buttons



Model Guide



Gas Type



CO2

Carbon Dioxide







Code

Model

3

1

Standard model (CO2 &temperature detection)

5

1

CO2 &temperature detection with RS-485 network communication







Code

Analog output

0

No analog output

1

1X 0~10V output











Code

Dry contact output

0

No dry contact output

1

1X dry contact output







Code

Humidity option

RH

Relative humidity detection





Code

Power supply

A

220/240VAC

B

100/120VAC

C

24VAC







F2000IAQ

CO2

—

X1

1

X2

X3

—

Y1

—

Y2



Note: X2 + X3≤1



Example: F2000IAQ-CO2-3100 indicates that it is a CO2 indicator with temperature detection.
