Home > Products > NDIR CO2 Monitor/Alarm > CO2 Monitor and Alarm
CO2 Monitor and Alarm
- 3000 Piece / Pieces per Month
- Beijng
- UV measuring sticker/4 types are available depending on sensitivity/Made in Japan
- UV measuring label/Ultraviolet irradiation sticker/Made in Japan
- Ultraviolet irradiation sticker/Sunburn alert stickers/ Made in Japan
- UV irradiation measuring sticker/UV alert label/Single use/Made in Japan
- Ultraviolet irradiation measuring sticker/Widely used for UV lamp, curing resin/Made in Japan/Irreversible
- UV irradiation measuring label/Color changing indication/Single use/Made in Japan
Product Details
Place of Origin: | Beijing, China | Brand Name: | TONGDY | Model Number: | G01-CO2-B3 |
Usage: | Auto |
Product Description
Specifications
LCD display with three colorbuzzer alarm and backlight colors switchover
1X relay output
touch button

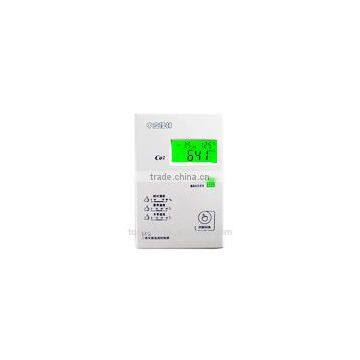

CO2 Monitor and Alarm
CO2 Monitor and Alarm Features:
u Design for real time monitoring room carbon dioxide
level
u NDIR infrared CO2 sensor inside with special Self Calibration System. It makes the CO2 measurement more accurate and more reliable in use.
u More than 10 years lifetime of CO2 sensor
u Temperature and humidity monitoring
u Three-color (green/yellow/red) LCD backlitindicating ventilation optimal/moderate/poor based on the CO2 measurement
u Two alarm ways: buzzer alarm and backlight
Colours switch
u Provide optional 1xrelay output to control a ventilator
u Easy touch button for operation
u High quality with the perfect appearance,
best choice for home and office
u 220VAC or 24VAC/VDC power selectable; power adaptor available; desktop and wall mounting type available
u EU standard and CE-approval
n Application
New G01-CO2 monitor/alarm is used to monitoring room CO2 level, as well as room temperature and humidity. It provides one on/off output to control a ventilator with four CO2 levels presetting. Especially it provides both buzzer alarm and three colors backlit switching alarm.
u Hotel, exhibition hall, hospital, shop, restaurant, air port, train station, theater and other public places
u House, villa, office, meeting room, classroom and other rooms
u All ventilation systems
n Models Guide
Model | Name | Description | Power Supply | Type | |
G01-CO2-B320D | CO2, temperature and humidity monitor/alarm | Three-color backlit LCD, buzzer alarm | 100~240VAC | Wall mounting | |
G01-CO2-B320D-NR | CO2 and temperature monitor/alarm (no RH option) | Three-color backlit LCD, buzzer alarm | 100~240VAC | Wall mounting | |
G01-CO2-B331C | CO2, temperature and humidity monitor/alarm | Three-color backlit LCD, buzzer alarm | 18~24VAC/VDC with a DC socket. | Wall mounting | |
G01-CO2-B331C-NR | CO2 and temperature monitor/alarm (no RH option) | Three-color backlit LCD, buzzer alarm | 18~24VAC/VDC with a DC socket. | Wall mounting | |
G01-CO2-B340C | CO2, temperature and humidity monitor/controller | Three-color backlit LCD, buzzer alarm; 1 on/off output; touch-key for operation | 18~24VAC/VDC | Wall mounting | |
G01-CO2-B340C-NR | CO2 and temperature monitor/controller (no RH option) | Three-color backlit LCD, buzzer alarm; 1 on/off output; touch-key for operation | 18~24VAC/VDC | Wall mounting | |
G01-CO2-B340D | CO2, temperature and humidity monitor/controller | Three-color backlit LCD, buzzer alarm; 1 on/off output; touch-key for operation | 100~240VAC | Wall mounting | |
G01-CO2-B340D-NR | CO2 and temperature monitor/controller (no RH option) | Three-color backlit LCD, buzzer alarm; 1 on/off output; touch-key for operation | 100~240VAC | Wall mounting | |
Optional Accessories |
| ||||
870 | Power adaptor | Input:100~240VAC, Output: DC 24V/ 240mA | Just for G01-CO2-B331C or G01-CO2-B331C-NR |
| |
921 | Wall mounting plate | Accessory for wall mounting |
|
| |
921+922 | Desktop bracket | As be the desktop type | Just for G01-CO2-B331C or G01-CO2-B331C-NR |
|
1.CO2 monitor is designed for real time monitoring ambiance carbon monoxide
2.LCD display detecting CO2 level, as well as temperature and relative humidity
3.NDIR infrared CO2 module inside with special ABC_Logic Self Calibration System. It makes the CO2 measurement more accurate and more reliable in use.
4.15 years lifetime of CO2 sensor
5.Gentlest shape and convenient installation structure
6.Particular LCD display with three color (Green/Yellow/Red) backlights
7.Two alarm ways: buzzer alarm and backlight colours switch
8.Provide optional 1xrelay output to control a ventilator
9.Easy touch button for operation
10.Provide four CO2 values to be preset to control the relay.
11.Optional RS485 communication interface, 15 KV antistatic protection, individual IP address
12.Trusty quality with lower prices
