Help CenterWholesale Room Thermostat for FCU Air Conditioner System
Related Products
Specifications
1 Thermostat designed for 3-speed fan and one or two water valves controlling. Up to 5amp relay outputs to control 3-speed fan

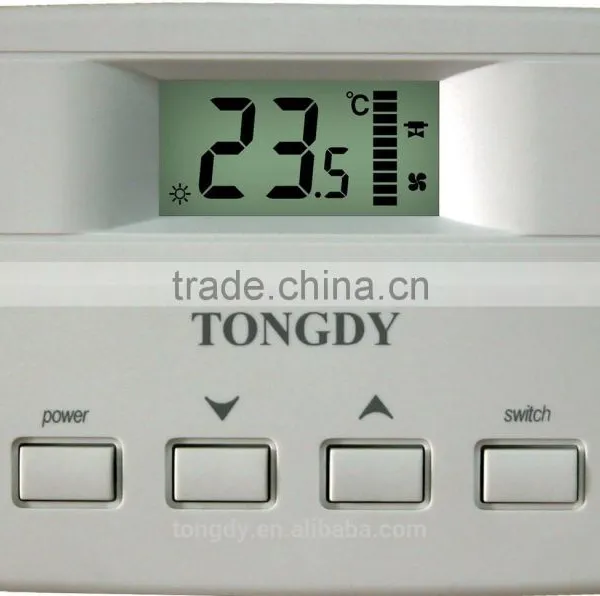

Wholesale Room Thermostat for FCU air conditioner system
Features
u Designed for control a 3-speed fan and one or two water valves with fan speed auto or manual adjustment selectable.
u LCD displays working status such as room temperature, set point, fan speed, etc. Makes reading and operating easy and accurate.
u All models feature user-friendly setting buttons
u Large set point range, the min. and max. limit of temperature presetting by end users
u Low temperature protection
u Celsius or Fahrenheit degree selectable
u Up to 5amp relay outputs to control a 3-speed fan
u Key-Card function is used for hotels to keep on
saving-energy temperature in non-occupancy and return back the set point in occupancy.
u Infrared Remote Control (optional)
u Blue backlight (optional)
u RS485 communication interface (optional)
u For the FCU systems with a Proportional-Action water valve, please see the F2000PS-A series thermostats
Specifications
Power supply |
230VAC±10% or 110VAC±10%, 50/60HZ |
Electrical rating |
F2000LB-S: 2 amp maximum load for 3 speed fan F2000PS/PSC series: 5 amp rated relay outputs for 3-speed fan |
Sensor |
NTC 5K |
Temperature Control Range |
5-35℃ (41℉-95℉) |
Accuracy |
±0.5℃ (±1℉) @25℃ |
Display |
LCD |
Net Weight |
F2000LB: 260g F2000PS/PSC series: 280g |
Dimensions |
F2000LB-S: 120mm(L)×90mm(W)×22mm(H)+28.5mm(bulge) F2000PS: 130mm(L)×90mm(W)×32mm(H) |
Mounting Standard |
Mounting on or inside the wall, 2“×4“/ 65mm×65mm box |
Standard |
CE-Approval for F2000PS series |
¨ Models
Types |
Model |
Characteristic |
|
F2000LB Series FCU thermostat for 2-pipes FCU systems |
F2000LB-S-21 |
3-speed fan auto adjustment, 1*on/off output to a 2-wire/3 wire water valve cooling/heating manual switch |
F2000LB-S-21-K |
3-speed fan auto adjustment, 1*on/off output to a 2-wire/3 wire water valve. Key-card option. cooling/heating manual switch |
|
|
F2000PS Series FCU thermostat for 2-pipes or 4-pipes FCU systems |
F2000PS-21 |
3-speed fan auto or manual adjustment with each 5A rated load, 1X on/off output to one 2-wire water valve. cooling/heating manual switch |
F2000PS-22 |
3-speed fan auto or manual adjustment with each 5A rated load, 2X on/off outputs to two 2-wire water valves for 4 pipes systems cooling/heating changeover. |
|
F2000PS-22-K |
3-speed fan auto or manual adjustment with each 5A rated load, 2X on/off outputs to two 2-wire water valves for 4 pipes systems. cooling/heating changeover. Key-card option |
|
FCU thermostat with Modbus RS485 interface |
F2000PSC-21 |
3-speed fan auto or manual adjustment with each 5A rated load, 1X on/off output to one 2-wire water valve. Modbus RS485 communication interface. |
F2000PSC-22 |
3-speed fan auto or manual adjustment with each 5A rated load,, 2X on/off outputs to two 2-wire water valves for 4 pipes systems. Modbus RS485 communication interface |
|
F2000PSC-21-K |
3-speed fan auto or manual adjustment with each 5A rated load, 1X on/off output to one 2-wire water valve. Key-card option. Modbus RS485 communication interface. |
|
F2000PSC-22-K |
3-speed fan auto or manual adjustment with each 5A rated load,, 2X on/off outputs to two 2-wire water valves for 4 pipes systems. Key-card option. Modbus RS485 communication interface |
|
Types |
Options |
Characteristic |
Options for above models |
Blue Backlight -EL |
Blue backlight of LCD. |
Remote Control-R |
Infrared remote control |
|
Sensor External-W |
Temperature sensor is external (cannot be used with Key-card option) |
