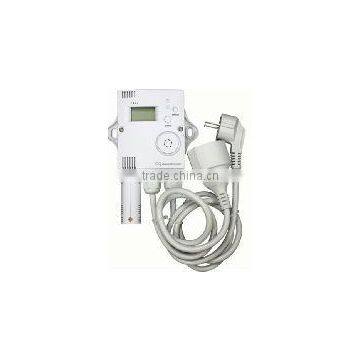

Special designed growing room CO2 controller agriculture carbon dioxide detector
Features
u Design for control the CO2 concentration in greenhouses or mushrooms
u NDIR infrared CO2 sensor inside with Self-Calibration and up to more than 10 years lifetime.
u Plug & play type, very easy to connect the power and a fan or CO2 generator.
u 100VAC~240VAC range power supply withEuropean or American power plug and power connector.
u A max. 8A relay dry contact output
u Inside a photosensitive sensor for auto changeover day/night work mode
u Replaceable filter in the probe and extendable probe length.
u Design the convenient and easier buttons for operation.

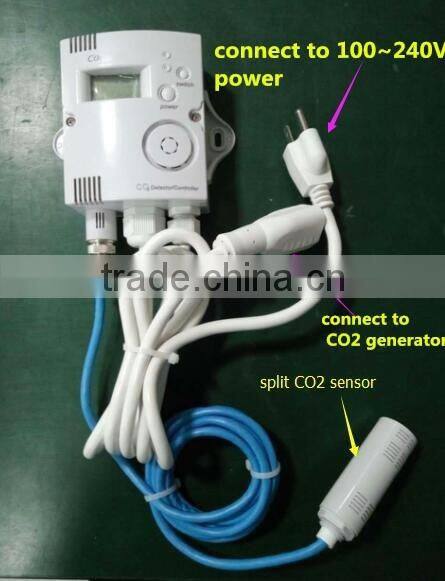

u Optional split external sensor with 2 meter cables
u CE-Approval.
Specifications
CO2 Sensor |
Non-Dispersive Infrared Detector (NDIR) |
Measurement Range |
0~2,000ppm (default) 0~5,000ppm (preset) |
Accuracy |
±60ppm + 3% of reading @22℃(72℉) |
Stability |
<2% of full scale over the life of the sensor |
Calibration |
Self-calibration system |
Response Time |
<5 minutes for 90% step change at low duct speed |
Non-linearity |
<1% of full scale @22℃(72℉) |
Duct Air Velocity |
0~450m/min |
Pressure Dependence |
0.135% of reading per mm Hg |
Warm up time |
2 hours (first time) 2 minutes (operation) |
Split CO2 sensor |
2 meter cable connection between the senor and the controller |
Power supply |
100VAC~240VAC |
Consumption |
1.8 W max. ; 1.0 W avg. |
LCD display |
Display CO2 measurement |
Dry contact output (optional) |
1xdry contact output Max. switch current: 8A (load resistance) SPDT relay |
Plug& play type |
100VAC~240VAC power supply with European or American power plug and power connector to the CO2 generator |
Operation conditions |
0℃~60℃(32~140℉); 0~99%RH, non condensing |
Storage conditions |
0~50℃(32~122℉)/ 0~80%RH |
IP class |
IP30 |
Standard Approval |
CE-Approval |
Typical Application:
u TKG-CO2-1010D-PP Controller is used to control CO2 level in greenhouse and other similar applications,
providing a max 8A relay on/off output to control a CO2 generator or a fan.
u For CO2 laboratory
u For ventilation system in greenhouse.
u The CO2 generator(default) or ventilator working mode can be preset by the end users
Company Information
Founded in 1999, Tongdy Control Technology is an industry leader which has designed and manufactured high quality IAQ products and HVAC controllers for 12 years.
Tongdy provides IAQ products including transmitters/controllers of carbon dioxide and carbon monoxide, with or without temperature and humidity detection; other IAQ indicators
and controllers of ozone and VOC’s, as well as micro particles.
The HVAC products include temperature and humidity transmitters, programmable and non-programmable digital thermostats and humidity controllers with Modbus and Bacnet
interface. Not only these products have Modbus or Bacnet option but also some of them have Zigbee or Wifi communication option.
All of these products have CE-approval.
