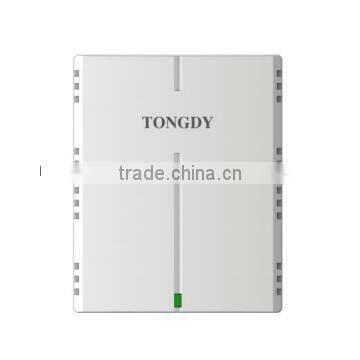

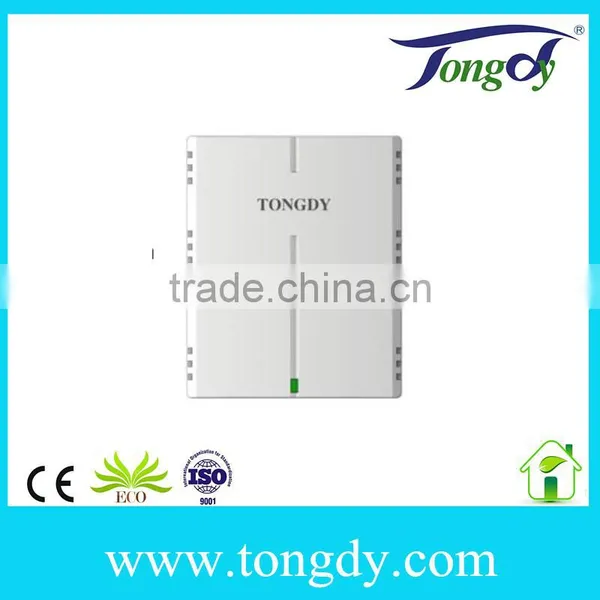

smart gas detector co sensor 0-10v anaglog output carbon monoxide transmitter
Features
1.Real-time monitoring Carbon Monoxide concentration in the air,Temperature and Humidity detection optional
2.Industrial class housings structure design, firm and durable
3. Inside famous Japanese Carbon Monoxide sensor with more than 5 years lifetime
4.BACnet -MS/TP or Modbus RTU communication optional
5. LCD display measured value or setting value optional
6. Double color working and alarm indicator lights, buzzer alarm
7.Provide different CO ranges selection
8.1x 0-10V or 4-20mA analog linear output for CO measured value
9. Provide two on/off relay outputs, a variety of combination to control carbon monoxide or temperature output optional
10. Provide different standard audible alarm with
11.Chinese (GB15322),European (EN50291) and American (UL2034)
Below is Advanced digital CO Monitor Carbon Monoxide analyzer TSP-CO series specifiations:
Parameters | ||
Power Supply |
24VAC/VDC |
|
Power Consumption |
2.8W |
|
Connection Standard |
Wire cross-sectional area<1.5mm2 |
|
Operating Environment |
-10-50℃,10~95%RH |
|
Storage Environment |
-10-60℃/ 0~90%RH,non-condensing |
|
Dimension/Net Weight |
95mm(W)*117mm(L)*36mm(H) / 280g |
|
Manufacturing Standard |
ISO 9001 |
|
Housings and IP class |
PC/ABS fire-proof material; IP30 protection class |
|
Design Standard |
CE-EMC Approval |
|
Sensor | ||
CO Sensor |
Japanese Electrochemical CO Sensor |
|
Sensor Lifetime |
Up to 3~5 years and replaceable |
|
Warm Up Time |
60 minutes(First use),1 minute(daily use) |
|
Response Time(T90) |
<130 seconds |
|
Signal Refreshing |
One second |
|
CO Range (Optional) |
0-100ppm(Default)/0-200ppm/0-300ppm/0-500ppm/0~1000ppm |
|
Accuracy |
<±1 ppm (15~20℃/ 30~60%RH) |
|
Stability |
±5% (over 900 days) |
|
Temperature or Humidity Sensor(Optional) |
Temperature |
Relative Humidity |
Measuring Range |
-20℃-60℃ |
0 -100%RH |
Accuracy |
±0.5℃ (20~40℃) |
±3.0%RH (25℃, 10%-90%RH) |
Display Resolution |
0.1℃ |
0.1%RH |
Stability |
±0.1℃/year |
±1%RH/year |
Outputs | ||
LCD Display(Optional) |
OLED screen, display real-time measured values with CO & Temp or CO, Temp & RH. (LCD display is required for models with relay outputs) |
|
Analog Output |
1x0-10VDC/4-20mA linear output for CO measured value |
|
Analog Output Resolution |
16Bit |
|
Relay Dry Contact outputs |
One or two on/off relay outputs, max current 5A (230VAC/30VDC), Resistive load separately controls CO, Temperature or Humidity |
|
|
RS485 Communication (Optional) |
.BACnet MS/TP, Communication Baud:9600bps(Default) .Modbus RTU, Communication Baud:9600bps(Default) 15KV anti-static protection |
|
Double-color working indicator lights |
Green: Normal Work Red: Alarm Indication |
|
Buzzer Alarm |
When CO concentration exceeds the alarm value, the buzzer will ring |
|
Alarm Standards | ||
|
Audible alarm and CO set point |
Chinese Standard: GB15322 European Standard: EN50291 American Standard: UL2034 |
|
Calibration Functions (Follow-up Supply ) | ||
DIP Switches |
Used for zero calibration mode setting |
|
|
Sensor air chamber Accessories |
Connect windpipe, cover the air chamber to make zero calibration |
|
Models Guide
Models |
Descriptions |
|
CO Transmitter |
TSP-CO-B100 |
1x0~10V / 4~20mA analog output for CO value |
TSP-CO-B101 |
1x0~10V / 4~20mA analog output for CO value with Modbus RS485 interface |
|
TSP-CO-B102 |
1x0~10V / 4~20mA analog output for CO value with BACnet interface |
|
TSP-CO-B001 |
Modbus RS485 interface |
|
TSP-CO-B002 |
BACnet interface |
|
|
CO Detector (with LCD) |
TSP-CO-D010 |
1x relay output for CO value |
TSP-CO-D110 |
1x relay output , and 1x0~10V / 4~20mA analog output for CO value |
|
TSP-CO-D101 |
1x0~10V / 4~20mA analog output for CO value with Modbus RS485 interface |
|
TSP-CO-D102 |
1x0~10V / 4~20mA analog output for CO value with BACnet interface |
|
Notice: All models with -T suffix mean this model has temperature measuring
Suffix CO range selection for all models:
-001: 0~100ppm
-002: 0~200ppm
-003: 0~300ppm
-005: 0~500ppm
-010: 0~1000ppm
