Specifications
1.Indoor Carbon Monoxide Detector and Controller,2.With 6 indicator lights
3.Semiconductor sensor

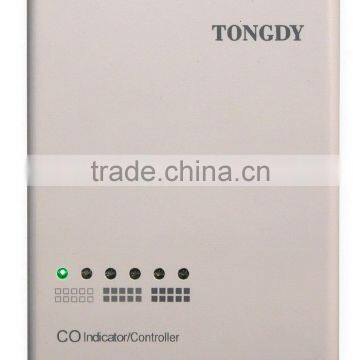

Super Semiconductor 6 LED Lights CO transmitter
Features
u Wall mounting, real time detect CO level with measuring range of 0~500ppm.
u Japanese semiconductor CO gas sensor is inside with normal 5 years lifetime.
u Full time detects CO level, even the slightest leak can be detected
u One on/off output optional for control a fan or an alarm device.
u Convenient to select the CO range during four carbon monoxide ranges via a set of jumpers so that to control the relay output
u Special six indicator lights indicate six different CO level ranges.
u RS-485 communication interface optional with 15KV antistatic protection, independent address setting
¨Application
u Detect and indicate ambiance carbon monoxide level
u Used in both human and Industrial environment
u Kitchen rooms and restaurants
u Underground parking lots, maintenance garages
u Freezing machine rooms and other places where air quality is easy to worsen
u Automatic ventilation control
¨Specifications
Gas detected |
Carbon monoxide |
Sensing element |
Semiconductor carbon monoxide gas sensor |
Power Supply |
24VAC/VDC |
Consumption |
2.5 W |
Warm up time |
36 hours (first time) 10 minutes (operational) |
Response Time |
<5 minutes for 90% step change |
Signal Update |
1s |
CO Measuring Range |
0~500ppm |
Six indicator lights |
The first green indicator light: CO≤0ppm The first and the second green indicator lights: CO ≥20ppm The first orange indicator light: CO≥50ppm The first and the second orange indicator lights: CO ≥100ppm The first red indicator light: CO≥200ppm The first and the second red indicator lights: CO≥300ppm |
Relay output |
One dry contact output, rated switching current 2A (resistant load) |
Communication rate |
RS485, 19200bps rate, 15KV antistatic protection |
Operation temperature |
0~60°C(32~140°F) |
Operation humidity |
5~95%RH, non condensing |
Storage conditions |
10~50°C |
Net Weight |
195g |
Dimensions |
100mm×80mm×28mm |
Installation standard |
65mm×65mm or 2”×4” junking box |
Wiring terminals (max.) |
6 |
Housing and IP class |
PC/ABS fireproof plastic material, protection class: IP30 |
Models
ITEM |
MODEL |
DESCRIPTION |
|
Carbon Monoxide Indicator and Controller
|
F2000TSM-CO-L100 |
CO indicator with 6 LED indicator lights |
F2000TSM-CO-L100C |
CO detector with 6 LED indicator lights, RS485 communication interface |
|
F2000TSM-CO-L101 |
CO controller with 6 LED indicator lights, One relay output |
|
F2000TSM-CO-L101C |
CO controller with 6 LED indicator lights, One relay output. RS485 communication interface |
