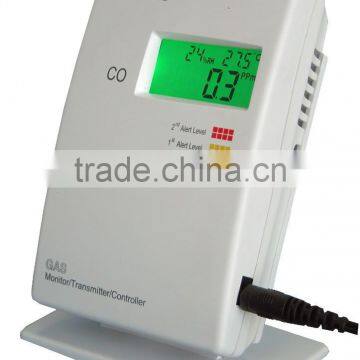

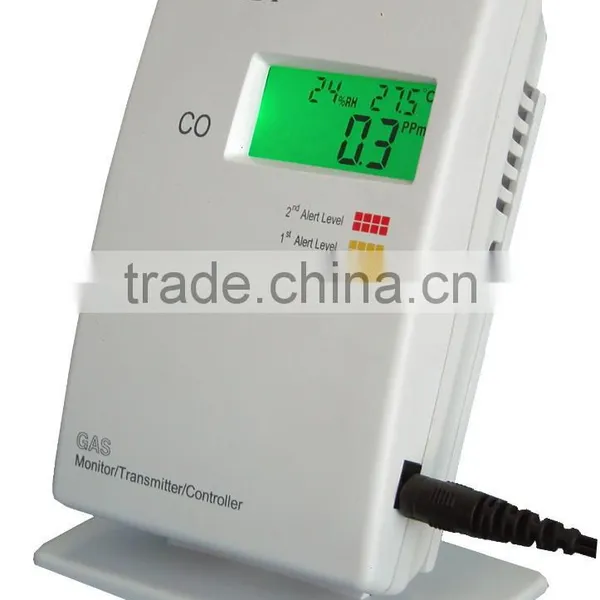

wholesale CO Monitor for Car parking
CO Monitor Features:
u Real time monitoring carbon monoxide level with
range from 0 to 500ppm.
u Semiconductor sensor with 5 years long lifetime
u Three-color (green/yellow/red) LCD backlit indicates
three carbon monoxide ranges
u Temperature detection and display
u Humidity detection and display optional
u Preset the buzzer alarm level for measured
carbon monoxide
u Provide 1xOn/Off relay output to control a ventilator
u Provide four setpoints of CO to control the relay
action
u Modbus RS485 communication interface optional, 15 KV antistatic protection, independent address setup
u 230VAC or 24VAC/VDC power supply
u Wall mounting type
u CE-Approval
Application
Carbon monoxide is a deleterious gas with colorless and odorless character , which could be absorbed by lung quickly, the speed rate of combination of CO and hemoglobin more than 250 times with oxygen, then stops oxygen circulation around the body; which have big character of heavy toxicity, so carbon monoxide poisoning have became a big problem around the world.
G02-CO is used to monitor room carbon monoxide level as well as temperature and optional humidity. With one dry-contact of relay output, it cancontrol a ventilatoraccording the setpoint of carbon monoxide.
With the Modbus RS-485 communication interface, it can be connected with a DDC/PLC or a PC.
u Indoor air quality detection
u Industrial environment
u Underground parking lot, maintenance garage
u Freezing machine room and other places
Specifications
Gas detection |
Carbon monoxide |
Sensing element |
Semiconductor gas-sensitive component |
Temperature sensor (option) |
NTC 5K |
Humidity sensor (option) |
HS series capacitive sensor |
Power supply |
24VAC/VDC or 230VAC |
Consumption |
2.8 W |
Signal update |
1s |
Warm up time |
36 hours (first time), 10 minutes (normal operation) |
CO measuring range |
0~500ppm or customized range |
Display resolution |
0.1ppm |
CO setting resolution |
0.1ppm |
Temperature measurement range |
0~70℃ |
Humidity measurement range |
0~99 %RH |
Relay output(option) |
1xRelay output to control a ventilator or air-purifier, Max. current 3A resistance |
Buzzer alarm |
Alarm starts when CO measurement reach up the presets |
LCD display |
Green—optimal air quality Yellow—1st CO alarm level Red—-2nd CO alarm level |
Modbus RS485 Interface(option) |
Communication rate: 19200bps 15KV antistatic protection, 3 independent base address |
Operation condition |
-20℃~60℃ (-4℉~140℉)/ 0~ 95% RH |
Storage conditions |
0℃~50℃ (32℉~122℉)/ 5~ 90% RH |
Net Weight |
260g |
Dimensions |
130mm(L)×85mm(W)×36.5mm(H) |
Installation standard |
wall mount (65mm×65mm or 85mmX85mm or 2”×4” wire box) |
Wiring standard |
Wire section area <1.5mm2 |
Quality System |
ISO 9001 |
Housing |
PC/ABS fire-proof, IP30 protection |
Certificate |
CE |
