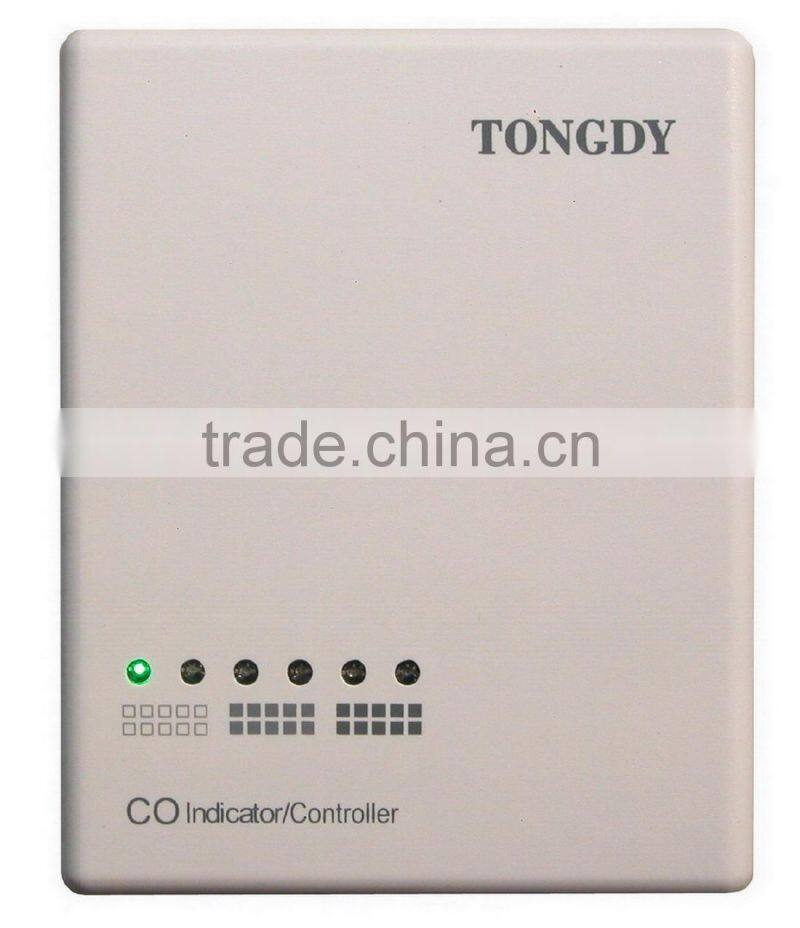

Indicator Lights Carbon Monoxide Transmitter

FOB Price

US$ 1 - 2 / Piece

10 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Beijing, China	Brand Name	TONGDY
Model Number	F2000TSM-CO	Usage	Gas Sensor
Theory	Other, detect and indicator co level	Output	Switching Transducer

Indoor Carbon Monoxide Detector and Controller, Real time detect and Indicate carbon monoxide level with 6 indicator lights.

Indicator Lights Carbon Monoxide Transmitter

Gas detected	Carbon monoxide
Sensing element	Semiconductor carbon monoxide gas sensor
Power Supply	24VAC/VDC
Consumption	2.5 W
Warm up time	36 hours (first time) 10 minutes (operational)
Response Time	<5 minutes for 90% step change
Signal Update	1s
CO Measuring Range	0~500ppm
Six indicator lights	The first green indicator light: CO≤0ppm The first and the second green indicator lights: CO ≥20ppm The first orange indicator light: CO≥50ppm The first and the second orange indicator lights: CO ≥100ppm The first red indicator light: CO≥200ppm The first and the second red indicator lights: CO≥300ppm
Relay output	One dry contact output, rated switching current 2A (resistant load)
Communication rate	RS485, 19200bps rate, 15KV antistatic protection
Operation temperature	0~60°C(32~140°F)
Operation humidity	5~95%RH, non condensing
Storage conditions	-10~60°C(14~140°F)
Net Weight	195g
Dimensions	100mm×80mm×28mm
Installation standard	65mm×65mm or 2”×4” junking box
Wiring terminals (max.)	6
Housing and IP class	PC/ABS fireproof plastic material, protection class: IP30

1. Wall mounting, real time detect CO level with measuring range of 0~500ppm.

2. Japanese semiconductor CO gas sensor is inside with normal 5 years lifetime.

3. Full time detects the ambiance carbon monoxide with six indicator lights indicating six different CO ranges

4. One on/off output optional for control a fan or an alarm device.

5. Convenient to select the CO range to control the relay output during four carbon monoxide ranges via a set of jumpers so that

RS-485 communication interface optional with 15KV antistatic protection
