China good quality pure uninterruptible low frequency online UPS.
BPN6-40KVA Introduction
BPN6-40KVA low frequency UPS is the second generation digital true double conversion on-line UPS designed by AnYing;it supplies pure and uninterruptible AC power to computer; date center; network administration center and other equipment etc.The system with good quality power components,lots of auto protection, advanced software management and comminication interface etc..
Competitive Advantages
- We are the online ups factory.
- With the wide input voltage and frequency range, it reduces the frequency of battery discharge so that the battery life can be prolonged and in the meantime, it can works with oil generator.
- High reliability design,double conversion on-line UPS,make sure the output of the UPS is pure positive ware power which is frequency tracking ,phase lock voltage regulator ,filter out noise ,low distortion and free of grid fluctuation interference.That make the ups equipment provide more safety and prefect protection for the users.
- Immediately convention output ,meet the requirements of high standard of precision equipment for power supply.
- Intelligent battery management,extend the life of battery.
- Big LCD display,friendly comminication interface.

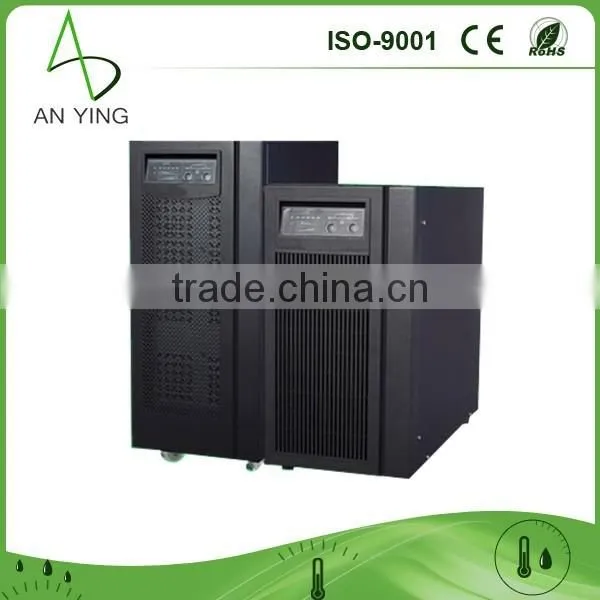

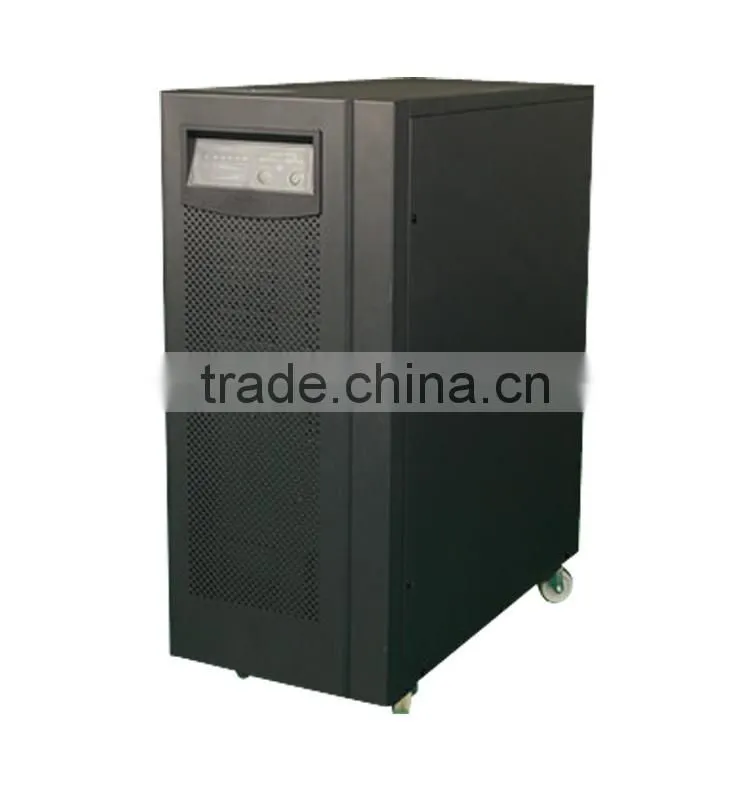

Photo showing
Technical parameters
| MODEL | BPN6-40KVA | |
| Capacity | 6-40KVA | |
| INPUT | ||
| Rated Voltage | 380/400VAC/415VAC | |
| Rated Frequency | 50/60Hz Auto Sensing | |
| Frequency Range | 40-70Hz | |
| Power Factor | ≥0.92 | |
| OUTPUT | ||
| Voltage | 220V/230V/240VAC | |
| Voltage Regulation | ±1% | |
| Frequency | Synchronized with utility on AC mode;50/60±0.1Hz on battery mode | |
| Waveform | Pure sine wave | |
| Transfer Time | AC mode to battery mode :0ms Inverter model to bypass mode:0ms | |
| SYSTEM | ||
| Efficiency | ≥85% | |
| Protection | Output short circuit, overload, output over/low voltage, battery low, over temperature | |
| ENVIRONMENT | ||
| Humidity | 0~95% RH @ 0~40℃(non-condensing) | |
| Noise Level | ≤55dB | ≤60dB |
BPN6-40KVA series UPS can be widely used in the filed of finance, telecommunication, revenue, traffic, insurance, government, corporation etc.
Shenzhen An Ying Technology Co.,Ltd was established in 2009.Our company has strong science and technology strength.Otherwise ,there are many high quality researching talents who own the master's and bachelor's degree.We have established the LED department and machine room monitoring departmen under our common efforts.We specialize in researching ,producing and processing LED lighting, leak detector,machine room monitoring device.The head office is located in Shenzhen.There is complete and scientific quality management system in Shenzhen An Ying Technoloey Co.,Ltd . The honesty, the strength and the high quality of the products has been recommended by the industy and the customers in the world. Your presence and guidance ,or business negotiation are warmly welcome.
