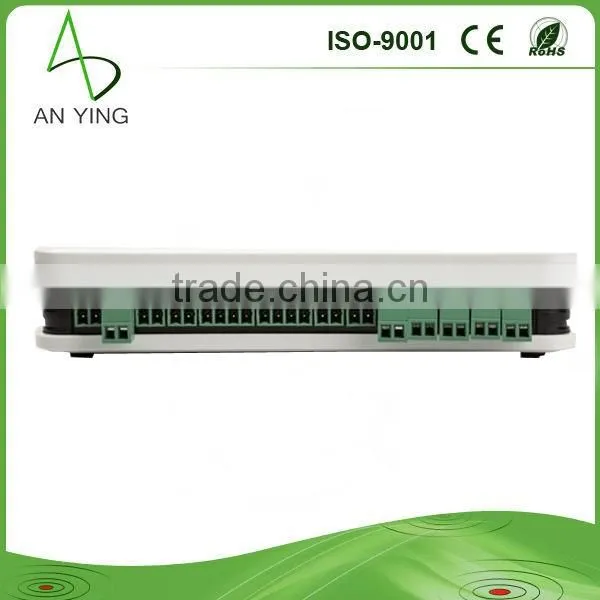

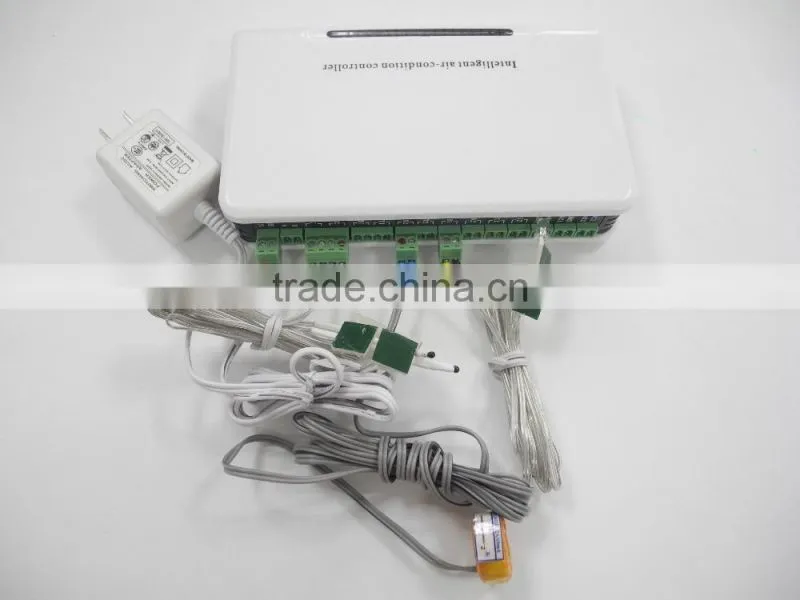

Item: Professional sms controller for air conditioner/central air conditioner controller
Operating power supply |
DC DC12V 300mA |
||||
Temperature of air outlet |
2 ways air outlet temperature detecting, standard wire 1 m |
||||
Temperature of return air inlet |
2 ways return air inlet temperature detecting, standard wire 1 m |
||||
Infrared signal transmitting |
2 ways infrared transmitting port, carrier frequency 38~42KHz,standard wire 1 m |
||||
DI port |
2 ways DI(connect smoke, infrared, door magnet etc.); |
||||
DO port |
2 ways relay output port(link sound and light alarm, fan); |
||||
Communication port |
1 way RS485,standard MODBUS protocol; |
||||
Restart after power restore |
automatic restart after power restore 1 minute; |
||||
Automatic control |
Automatically control the start time, temperature and mode setting of the air conditioner |
||||
Operating environment |
temperature |
-10℃~70℃ |
humidity |
10%~95% |
|
Storage environment |
temperature |
5℃~30℃ |
humidity |
30~90 RH% |
|
l Used widely:suitable for all air conditioner with infrared remote control in the market.
l Easy installation:no need to dismantle the original air conditioner and feeding circuit (not detecting current).
l Energy saving:timely turn on and turn off, double air conditioners automatic operating shift, turn off air conditioner when reach temperature setting and temperature automatic adjusting, for example, if user lower the temperature, this device can automatically restore the temperature set.
l Malfunction detecting:can detects malfunction exists in the freezing system and send out alarm, like lack of refrigerator, filtering net dirty, engine group dirty, compressor damage, freezing fan damage and so on key components affect freezing effect.
l Network connecting management: RS485 port execute remotely networking management and also can use alone.
Stability:Annual operating7x24 Continuously,without attended maintenance.
