Urban lighting use small size high precision light sensor, illumination sensor, photo sensor
Introduction
llumination sensor uses the super sensitive silicon photo voltaic as the sensor. Users can choose different range according
to the detected area. Good linearity, waterproof, easy installations and remote control makes it widely used in greenhouse and
urban lighting area etc.
Parameters
Detected range:0-200000Lux
Wavelength:380 nm-730 nm
Accuracy:±7%
Voltage:DC 12V
DC 24V
others
Outputs: Current:4~20mA
Voltage:0~5V
RS232
RS485
TTL electronic level(Frequency & Pulse width)
others
Device: wire length:2.5m
others
Load resistance: voltage output:RL≥1K
Current output: RL≤300Ω
Working temperature: -10℃~70℃
Relative humidity: 0~80%RH
Weight: 170 g
Calculation formula
Current output(4~20mA output):
L=( I-4 )/ 16 × Lm
(L--illumination(Lux),I -- outputting current(mA),Lm-- detecting range)
Voltage outputs(0~5V output):
L=V/ 5× Lm
(L--illumination(Lux),V—outputting voltage(V),Lm—detecting range)

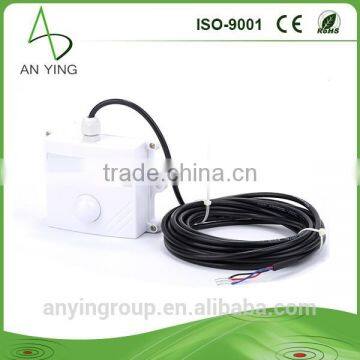

Photo showing
Installation Instructions
- Please install the device by using the screw M4.
- Please do not tear down the device when installing which should be indoor and please keep the device from the water or any rain.
User Instruction
Please put the device in the detected area after Finishing the wire connection as above. Please turn On the power of the device and the collector and then Start the detecting.
The light sensor has been widely used in many areas where needs to detect and control the light such as agriculture planting, workshop, warehouse, machine room lighting, smart building monitoring, outdoor lighting etc. The device uses super sensitive sensor and is armed with highly accurate linear amplifier circuit. Having passed more and more serious testing and manufacturing, it becomes a real functional product which supports various detecting ranges and output signal types.
Shenzhen An Ying Technology Co.,Ltd was established in 2009.Our company has strong science and technology strength.
Otherwise ,there are many high quality researching talents who own the master's and bachelor's degree.We have established the LED department and machine room monitoring departmen under our common efforts.We specialize in researching ,producing and processing LED lighting, leak detector,machine room monitoring device.The head office is located in Shenzhen.There is complete and scientific quality management system in Shenzhen An Ying Technoloey Co.,Ltd . The honesty, the strength and the high quality of the products has been recommended by the industy and the customers in the world. Your presence and guidance ,or business negotiation are warmly welcome.
