Home > Instruments & Meters > Weighing & Measuring Apparatus > Electronic Scale > Mini Digital Hanging Scale 300Kg 600Lb Scales Industrial Heavy Duty Crane Scale

Mini Digital Hanging Scale 300Kg 600Lb Scales Industrial Heavy Duty Crane Scale

Mini Digital Hanging Scale 300Kg 600Lb Scales Industrial Heavy Duty Crane Scale photo-1

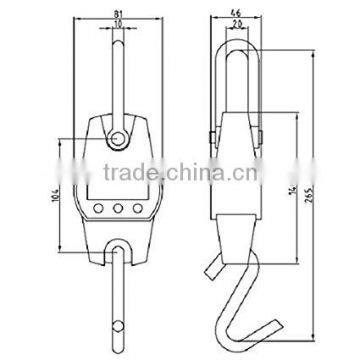

Mini Digital Hanging Scale 300Kg 600Lb Scales Industrial Heavy Duty Crane Scale photo-2
US$ 73 - 73 MOQ: 50 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Hyindoor
Model Number:
YDS-L300
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Zhejiang, China
Brand Name Hyindoor
Model Number YDS-L300
Type Crane Scale
Power Supply 3*AA Battery
Display Type LCD
Rated Load 300KG
  • ABS case
  • Double-sides Display
  • Uitra-thin Design
  • 22mm LCD Display with Backlight
  • AA*3 battery (We will not provide the battery,you need buy it yourself in your country)
  • Wireless Remote Control
  • Capacity: 300Kg
1. Safety Guide:

     For good performance and precise measurement, be careful with daily operation and maintenance.
  • Do NOT overload scale. This will damage loadcell and void warranty.
  • Do NOT leave load hung on the scale for long. This will decrease scale’s accuracy and shorten loadcell’s life.
  • Inspect shackle and hook before using. Check clips, pins and screws regularly.
  • Check battery frequently. When scale runs out of power, charge battery with its dedicated charger.
  • Rotate load rather than scale if needed.
  • Do NOT use scale under thunder or rain.
  • Hang scale on shelf in dry and well-ventilated room. Do NOT place scale on the ground directly.
  • Do NOT attempt to repair scale yourself. Contact your local representative
2. Features:

  This scale is a combination of sound and proven mechanical design, with today’s most advanced electronics to       provide a superb feature set. It is versatile, reliable, accurate and easy to operate.
  • Superb Quality. Strictly in accordance with OIML R76, Chinese GB/T11883-2002 national standards, and European CE directives
  • Strong Reliability. Cutting-edge technology, quality integrated circuit for high performance and long time stability.
  • Broad Applicability. Popular and applicable in storage, market, retail and so forth.
  • Easy to Use. Wireless remote controlling design. Easy to operate the scale in distance.
  • Complete Function. Division switch, unit conversion, automatic power save, battery inspection, idle mode, etc.



3. Specifications

Accuracy Class                       OIML III

Tare Range                             100% F.S.

Auto Zero Range                     ±20% F.S.

Zero Range                              4% F.S.

Safety Load                              120% F.S.

Ultimate Load                          400% F.S.

Scale Battery                            6V/3.2Ah

Scale Battery Life                    ≥150 hours (backlight off)

                                                   ≥26 hours (backlight level 3, no idle)

                                                   ≥14 hours (backlight level 5, no idle)

Remote Distance                   ≤10m

Remote Battery                       3 * AA carbon or alkaline battery

Remote Battery Life               120 ~ 140 days (alkaline battery)

Scale Battery                           100~220VAC 50/60Hz input

Charger                                    7.2VDC/1000mA output

Op. Temp.                                -10degree +40degree

4. Function

  • Zero
  • Tare
  • Hold
  • Battery Supervision
  • Unit Switch
  • 3-Point Calibration




5.Capital and Division



   Max.Cap          Min.Cap        Degree         Number

   Kg     Lb           Kg     Lb        Kg    Lb              n

   30      60           0.2     0.4      0.01   0.02         3000

   50      100         0.4      1        0.02   0.05         2500

   100    200          1        2        0.05   0.1           2000

   150    300          1        2        0.05   0.1           3000

   200    400          2        4         0.1    0.2           2000

   300    600          2        4         0.1    0.2           3000
