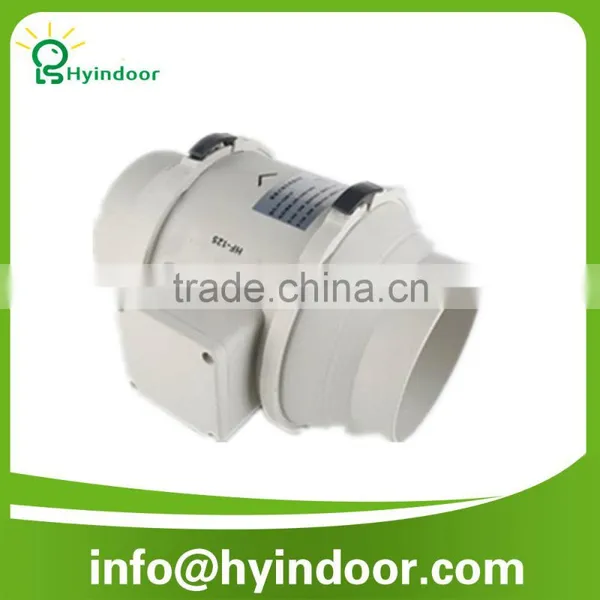

5 inch 2 Speed Control Mixed Flow In line Duct Fan

FOB Price

USD $30 - $40 / Piece

50 Pieces(Min.Order)

Supply Ability 30000 Piece / Pieces per Month
Port shanghai or ningbo
Payment TermsT/T D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Electric Current Type	DC	Blade Material	Plastic
Mounting	Duct Fan	Place of Origin	Zhejiang, China
Brand Name	HYINDOOR	Model Number	HY-125P
Power	33/27W	Voltage	120V/220V
Air Volume	284CBM/H	Speed	Max2250rpm
Certification	CE, ROHS, UL	After-sales Service Provided	No overseas service provided

Product Description

Product Name:

5" 2 Speed Control Mixed Flow In line Duct Fan

Product Description

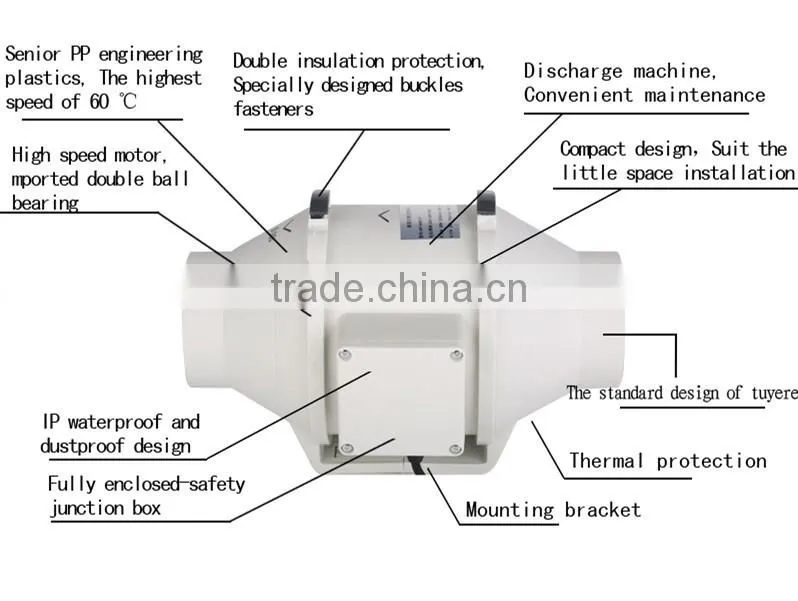

General Features

1. The shell is made of polypropylene plastic, one-time disposable molded, with high anti-acid function

2. Using ABS blades ,design by hydromechanics to reach the optimal air and pressure

3. Two -speed motor, imported NMB ball bearing, it’s life expectancy up to 50,000 hours

4. IP44 Protection class, waterroof and dustproof more effective

5. Can be designed with a delay function, temperature sensors and humidity sensors, more of user-friendly features design

6. Operating temperature range :-20°C~60°C

Performance Parameter:

Model	Gear	Voltage/Frequency	Current	Power	Speed	Weight	Air Flow	Air Pressure	Avg. dBA@3m
Model	Gear	Voltage/Frequency	(Amps)	(W)	(RPM)	(Kg)	(M³/H)	(Pa)	(db)
HY-100P (4")	H	230V/50Hz	0.12	26	2200	2.0	198	156	31
	L	230V/50Hz	0.11	23	1850		165	131	26
	H	115V/60Hz	0.26	30	2200		198	156	31
	L	115V/60Hz	0.24	28	1850		165	131	26
HY-125P (5")	H	230V/50Hz	0.14	33	2250	1.8	284	159	31
	L	230V/50Hz	0.13	28	1850		248	106	26
	H	115V/60Hz	0.30	32	2250		284	159	31
	L	115V/60Hz	0.26	27	1850		248	106	26
HY-150P (6")	H	230V/50Hz	0.24	54	2550	2.7	530	300	33
	L	230V/50Hz	0.21	48	1850		410	240	29
	H	115V/60Hz	0.58	65	2550		530	300	33
	L	115V/60Hz	0.49	53	1850		410	240	29
HY-200P (8")	H	230V/50Hz	0.57	128	2450	4.9	840	352	63
	L	230V/50Hz	0.52	123	1950		690	274	55
	H	115V/60Hz	1.41	162	2450		840	352	63
	L	115V/60Hz	1.28	146	1950		690	274	55

Dimensions(mm):

Model	X	A	øB	C	øD	E	F	G	H
HF-100	188	303	176	115	97	100	90	80	60
HF-125	188	258	176	115	123	100	90	80	60
HF-150	212	320	200	127	147	112	130	80	60
HF-200	232.5	302	217	141	197	124	140	100	94

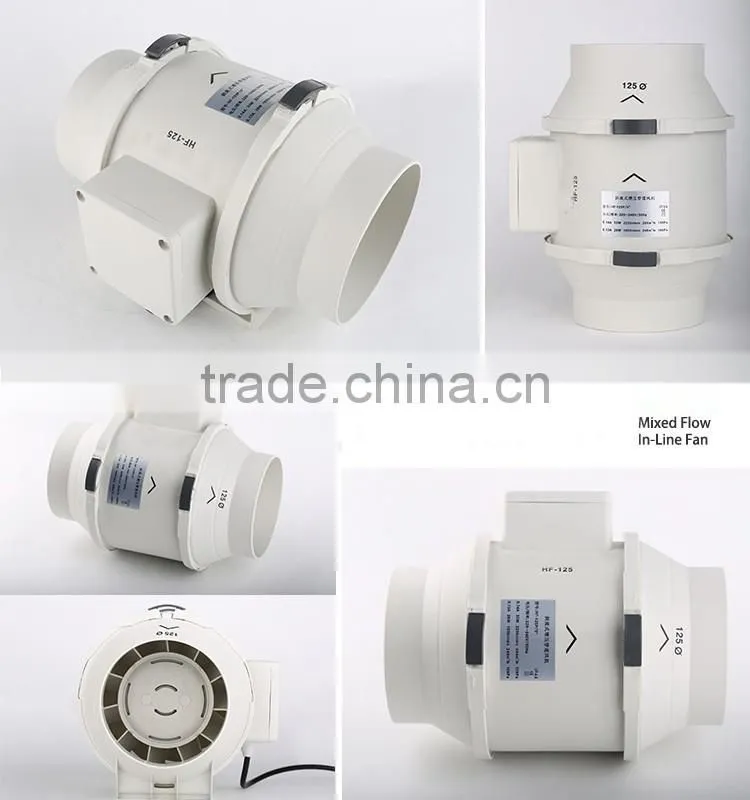

Product Details:

Fan Installation and Maintenance:

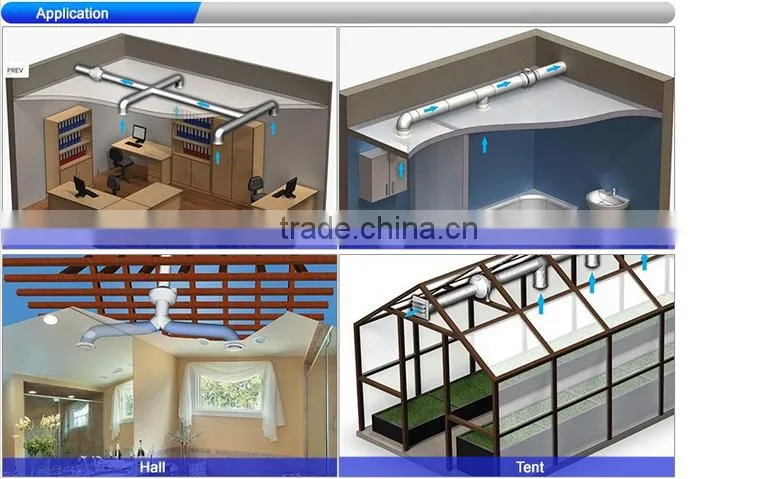

Application:

Practical examples of installation of the HF mixed flow fans range The HF fans provides a large number of solutions for small and large ventilations.

Residential-Kitchen, Domestic-Range Hood Exhaust, Commercial-Office, Industrial-Republic Restroom, School-Dining Hall, Industrial-Locker Room Health-Waiting Room, Meeting Room, Catering, Gym, Bathroom, Study Room.
