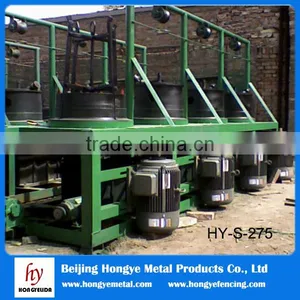

Straight Line Steel Wire Drawing Machine

Specifications

1no pollution
2.drawing wire steady and uniform
3.nice shape and easy operation
4. 12 years experience





 Features:

1. High speed and stable running
2. Easy operation, AC frequency control
3. Air cooling + Water cooling
4. Vacuum system-Clean the dust, protect environment
5. Capstan: Unique overlay welding technology, can use over 2000 hours
6. Remote control: Find and solve electrical problems

Application:



    It is applied for the production of prestressing strand, steel cord, bead wire, steel wire, spring steel wire, stainless steel wire, gas welding wire, arc welding wire,etc.







Specification:



Items	Unit	LZ9-12/1200	LZ10/800	LZ9/700	LZ10/560	LZ10/400
Reel diameter	mm	900	800	700	560	400
Draw passage	time	9-12	10	9	10	10
Incoming dia	mm	Φ14-8	Φ10-8	Φ8-6.5	Φ6.5-5.5	Φ14-8
Outgoing dia	mm	Φ5-3	Φ4-3	Φ3-2.5	Φ2-1.8	Φ1-0.8
Wire darwing line	m/min	300	360	480	720	840
Incoming strength	Mpa	≤1300	≤1300	≤1300	≤1300	≤1300
Total compressibility	%	87.24-85.94	84-85.94	85.94-85.21	90.53-89.29	87.24-84
Average compressibility	%	20.48-19.58	18.42-19.58	19.58-19.13	21.00-20.02	18.61-16.74
Single motor power	Kw	110-90	90-55	75-55	37-22	15-7.5





Note: We can design the machine according to customers' requirements.
