Gabions In South Africa
- 1000 Piece / Pieces per Month
- Tianjin
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Place of Origin: | Hebei, China | Brand Name: | HONGYE | Model Number: | HY-S-438, HY-S-438 |
Material: | Other, Low-Carbon Iron Wire, Galvanized Iron Wire | Type: | Other, Weave Wire Mesh | Application: | Other, Gabions, Protecting Mesh |
Hole Shape: | Hexagonal | Aperture: | 6cm * 8cm/ 8cm * 10cm/ 10cm * 12cm | Wire Gauge: | 1.5mm - 2.5mm |
Product Description
Gabion/ gabion box/ gabion mesh is made by our own factory in
Anping. We are focusing on the manufacture of varies metal mesh.
Gabions In South Africa

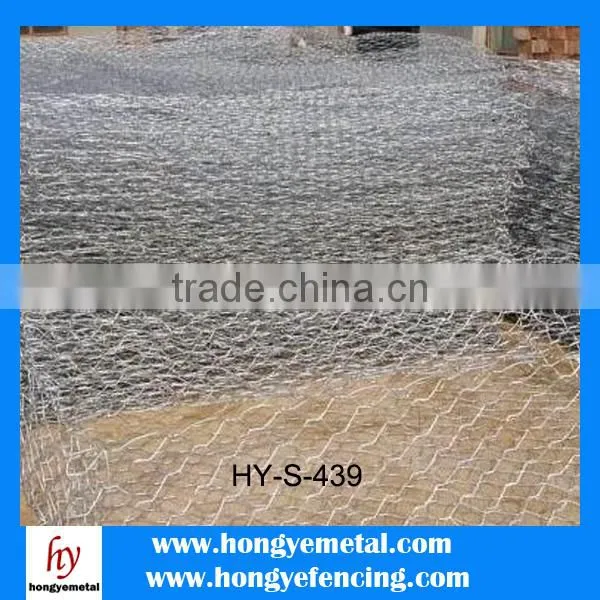

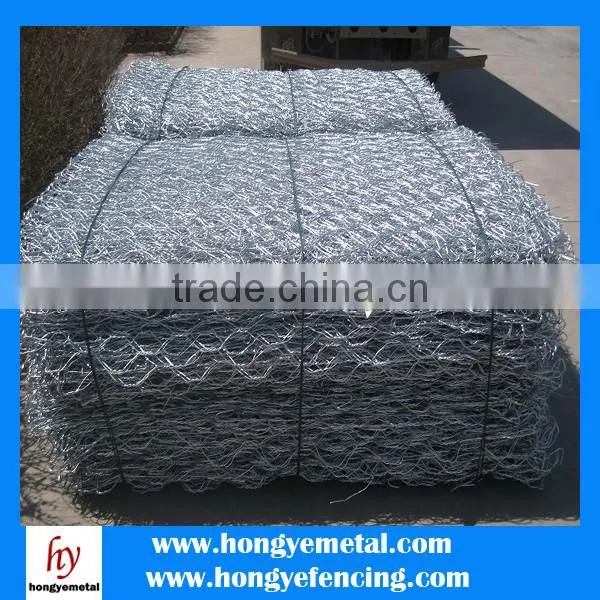

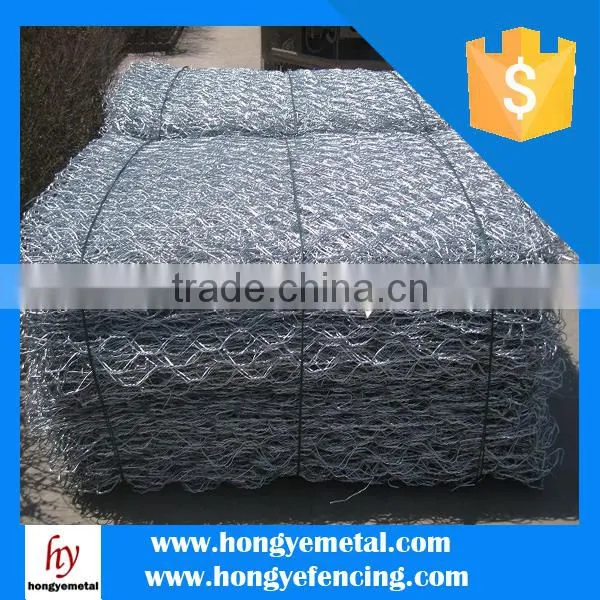

Gabion basket is a cage made of Hexagonal wire, the wire diameter is based on the size of hexagonal. If use metal coated wire, the diameter to be 2.0mm-4.0mm,If use PVC coated wire, The OD to be 3.0-4.5mm, the wire diameter of frame edge is larger than hexagonal wire, In recent years, an emerging zinc-aluminum alloy gabion basket which coated with zinc and aluminum and Mixed rare earth alloy, is more Corrosion resistance than zinc coated gabions.

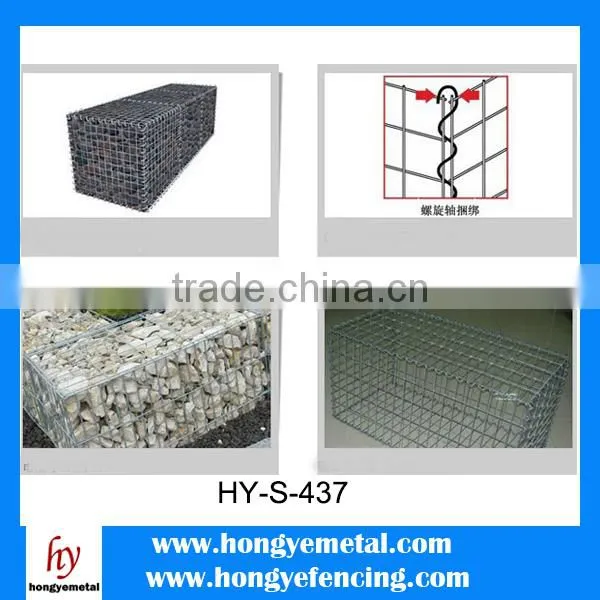

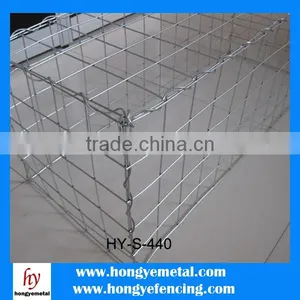

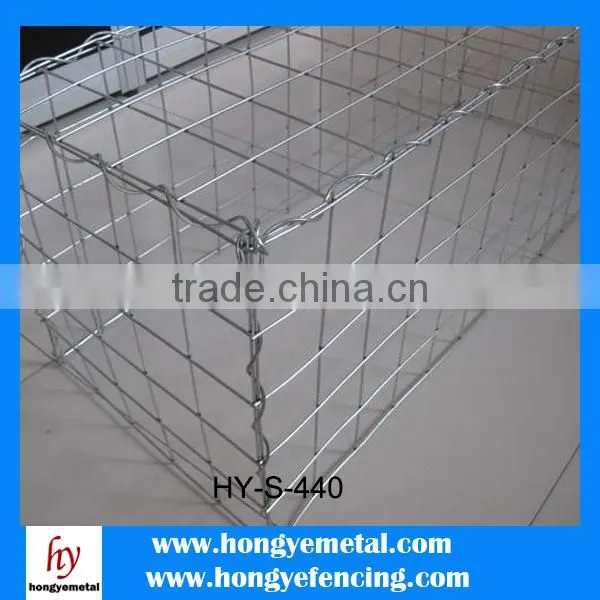

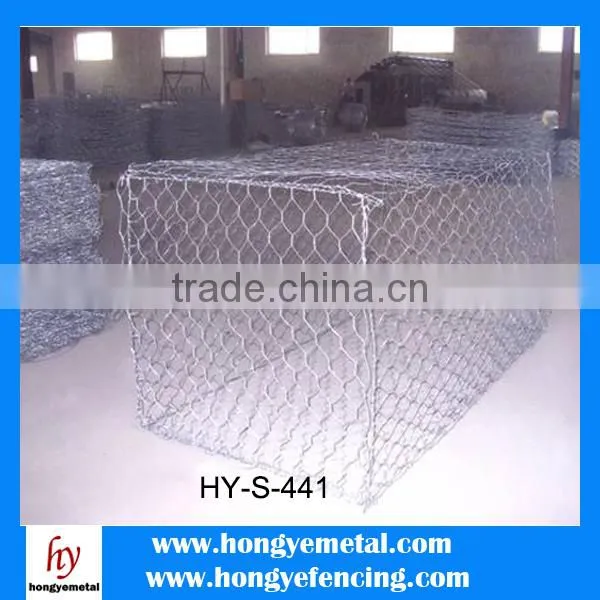

Gabion Basket
A twisted hexagonal mesh container of variable sizes, uniformly partitioned into internal cells, filled with stone at the project toform flexible, permeable, monolithic structures such as retaining walls, sea wall, channel linings, revetments, and weirs for erosion control projects.
Gabion Basket | ||||
Length | Width | Height | Number of | Volume |
2.0 | 1.0 | 1.0 | 2.0 | 2.0 |
3.0 | 1.0 | 1.0 | 3.0 | 3.0 |
4.0 | 1.0 | 1.0 | 4.0 | 4.0 |
2.0 | 1.0 | 0.5 | 2.0 | 1.0 |
3.0 | 1.0 | 0.5 | 3.0 | 1.5 |
4.0 | 1.0 | 0.5 | 4.0 | 2.0 |
2.0 | 1.0 | 0.3 | 2.0 | 0.6 |
3.0 | 1.0 | 0.3 | 3.0 | 0.9 |
4.0 | 1.0 | 0.3 | 4.0 | 1.2 |
The aperture is 60x80mm,80x100mm,80x120mm,100x120mm,etc
Gabion Mattress
A double-twisted wire mesh container uniformly partitioned into internal cells with relatively small height in relation to other dimensions, having smaller mesh openings than the mesh used for gabions;
gabion mattresses are generally used for riverbank protection and channel linings.
Gabion Mattress | ||||
Length | Width | Height | Number of | Area |
3.0 | 2.0 | 0.17 | 3.0 | 6.0 |
4.0 | 2.0 | 0.17 | 4.0 | 80 |
3.0 | 2.0 | 0.23 | 3.0 | 6.0 |
4.0 | 2.0 | 0.23 | 4.0 | 8.0 |
3.0 | 2.0 | 0.3 | 3.0 | 6.0 |
4.0 | 2.0 | 0.3 | 4.0 | 8.0 |
The aperture is 60x80mm,80x100mm,80x120mm,100x120mm,etc
Gabion Sacks
Gabion sacks are cylindrical baskets, which are good for water to seep through the structure, relieving the hydrostatic pressures, insure the earth's shear strength, well for whole structure's stable; meanwhile, saved the charge for traditional retaining drainage equipment, low down the whole cost.
Hexagonal opening (aperture):80x100mm
Wire diameter: 2.7mm
Selvedge wire: 3.4mm.
Production process
- 24 hours on-line service
- Excellent service for pre-sale,on-sale and after-sale
- Expert at our products
- Competitive price with superior higher quality products
- Factory with its own workshop
- Strict test before its delivery
Professional manufacturer, one-stop wire mesh supermarket
Hongye is home to a range of wire mesh products dedicated to providing online sales and service, where you can find almost all the related products. Some of the products are manufactured by our factory in Anping (since 1995) and some by our partner factories. All the products have been tested strictly before sales.
Hongye is proud of the people that work for us,the experienced workers, strict inspectors and energetic sales, whose work guarantees the best price, quality products and reliable service for customers.
Hongye is always ready to be your one-stop supermarket for wire mesh.
