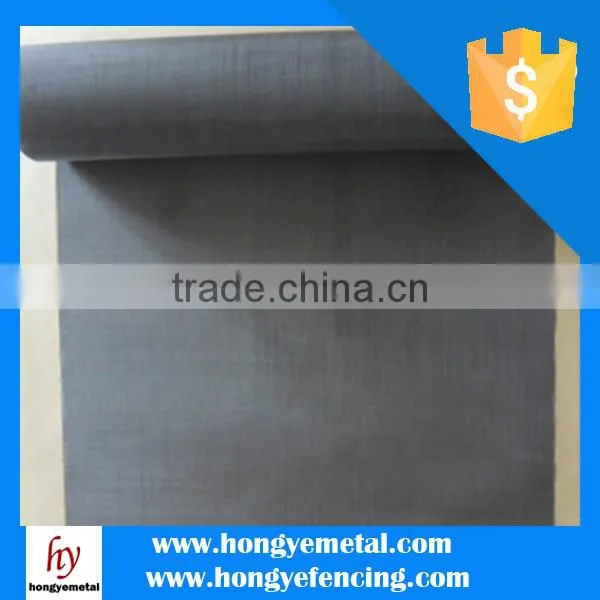

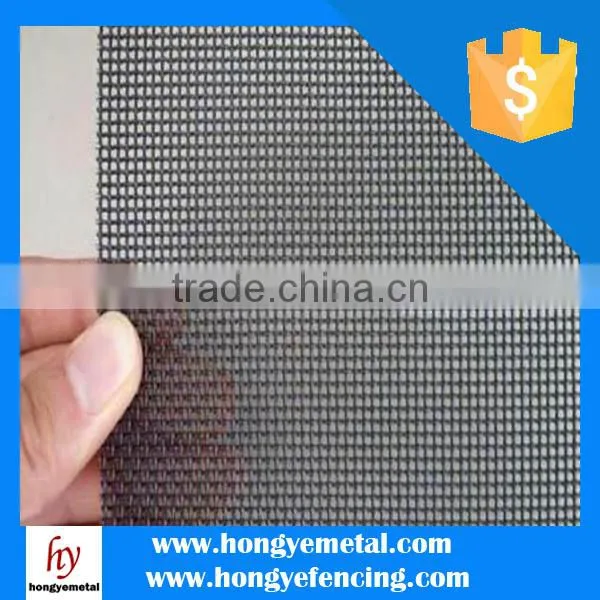

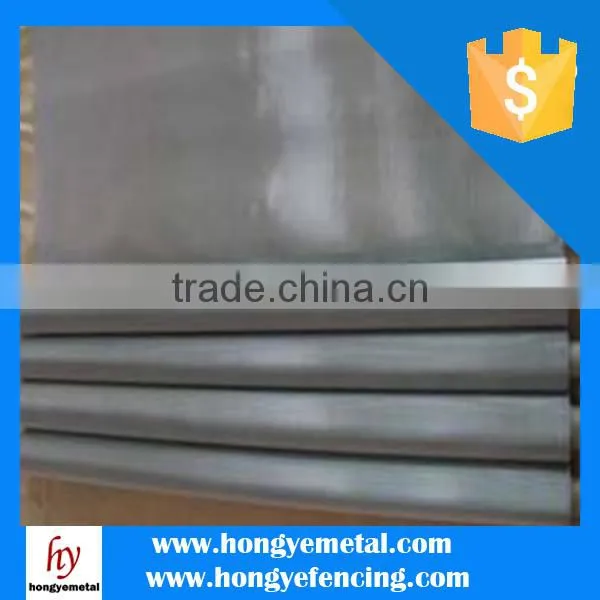

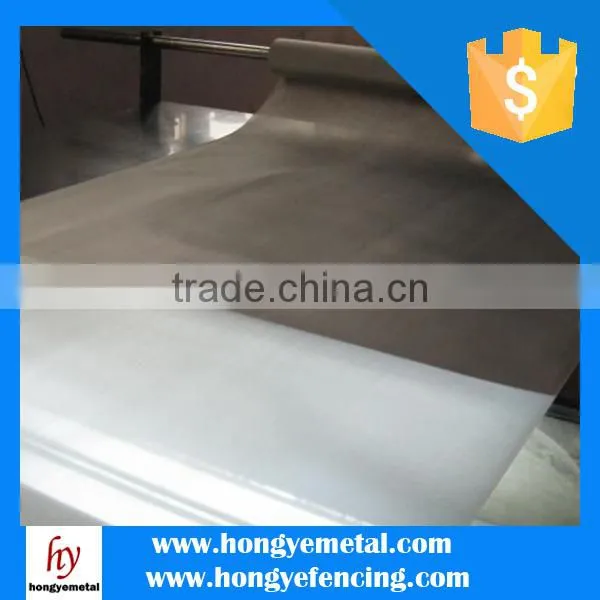

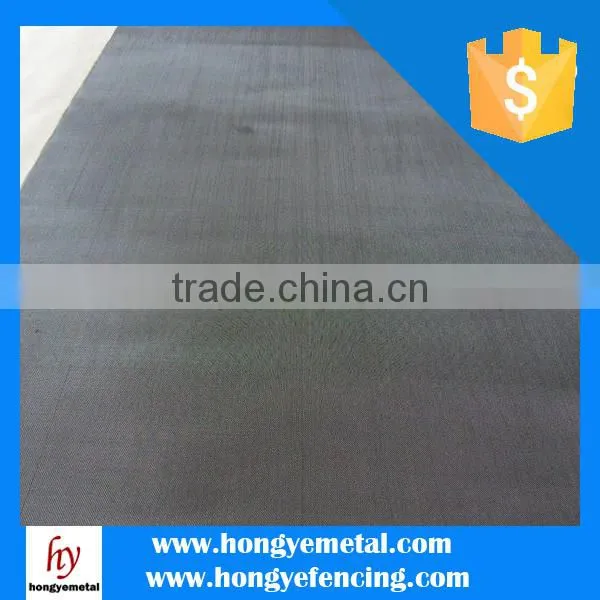

Tantalum Wire Mesh,Tantalum Woven Wire Mesh
tantalum wire mesh, from 8 to 400mesh.This kind of woven wire mesh is with almost complete immunity to attack by acids and liquid metal. Tantalum equals glass in resistance to acids, conducts heat better than the nickel alloys, and has an extremely high melting point.
Weave Pattern: plain weave, twill weave, dutch weave.
Tantalum Woven Wire Mesh is often used in chemical equipment, heat exchangers and elements, surgical implant, and electronic devices.
Packing: waterproof paper with plastic cloth, then put into wooden box.
Feature: Electronic components, and filtered. Tantalum wire mesh is with high melting points, boiling, although high, but the electronic work function than tungsten, molybdenum and other refractory metals is low, due to the ability of the emitted electrons is weak, has been applied in electric vacuum technology. Corrosion resistance of tantalum and glass the same network, only fluorine, hydrofluoric acid, sulfur trioxide (including fuming sulfuric acid), alkali and some molten salt tantalum influential in temperature (about 150 ℃).
Specification List of Tantalum Wire Mesh | |||||||||
Mesh/Inch |
Wire Dia |
Mesh |
Opening Area |
Weight |
Mesh /Inch |
Wire Dia |
Mesh Opening |
Opening Area |
Weight |
8 |
0.71 |
2.465 |
60.2% |
4.26 |
35 |
0.330 |
0.396 |
29.7% |
4.04 |
10 |
0.64 |
1.900 |
55.9% |
4.34 |
40 |
0.250 |
0.385 |
36.7% |
2.65 |
12 |
0.58 |
1.537 |
58.9% |
4.27 |
50 |
0.160 |
0.381 |
36% |
1.35 |
14 |
0.42 |
1.390 |
59.0% |
2.61 |
60 |
0.160 |
0.263 |
39% |
1.62 |
16 |
0.38 |
1.210 |
57.9% |
2.44 |
80 |
0.120 |
0.198 |
39% |
1.22 |
18 |
0.40 |
1.010 |
51.3% |
3.05 |
100 |
0.100 |
0.154 |
37% |
1.06 |
20 |
0.40 |
0.870 |
46.9% |
3.39 |
120 |
0.080 |
0.132 |
38.7% |
0.81 |
24 |
0.27 |
0.788 |
55.4% |
1.85 |
150 |
0.060 |
0.109 |
41.5% |
0.57 |
28 |
0.23 |
0.677 |
55.7% |
1.57 |
200 |
0.050 |
0.077 |
36.7% |
0.53 |
30 |
0.28 |
0.567 |
44.8% |
2.49 |
300 |
0.035 |
0.049 |
34.4% |
0.38 |
|
|
|
|
|
|
|
|
|
|
Tantalum Chemical Composition %
Grade |
Ni |
N |
O |
H |
Fe |
Mo |
Nb |
C |
Si |
Ti |
W |
Ta |
Ta1 |
0.002 |
0.005 |
0.015 |
0.002 |
0.005 |
0.01 |
0.05 |
0.01 |
0.005 |
0.002 |
0.01 |
Rem |
Ta2 |
0.005 |
0.025 |
0.03 |
0.005 |
0.03 |
0.02 |
0.10 |
0.02 |
0.02 |
0.005 |
0.04 |
Rem |
Hongye is home to a range of wire mesh products dedicated to providing online sales and service, where you can find almost all the related products. Some of the products are manufactured by our factory in Anping (since 1995) and some by our partner factories. All the products have been tested strictly before sales.
Hongye is proud of the people that work for us,the experienced workers, strict inspectors and energetic sales, whose work guarantees the best price, quality products and reliable service for customers.
Hongye is always ready to be your one-stop supermarket for wire mesh.
