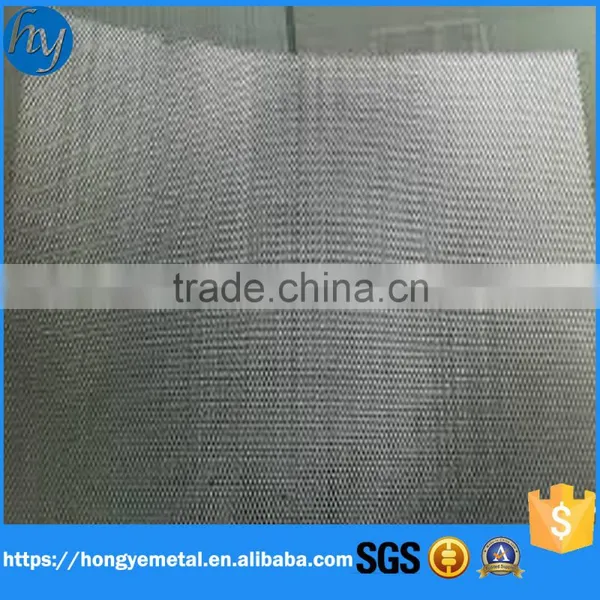

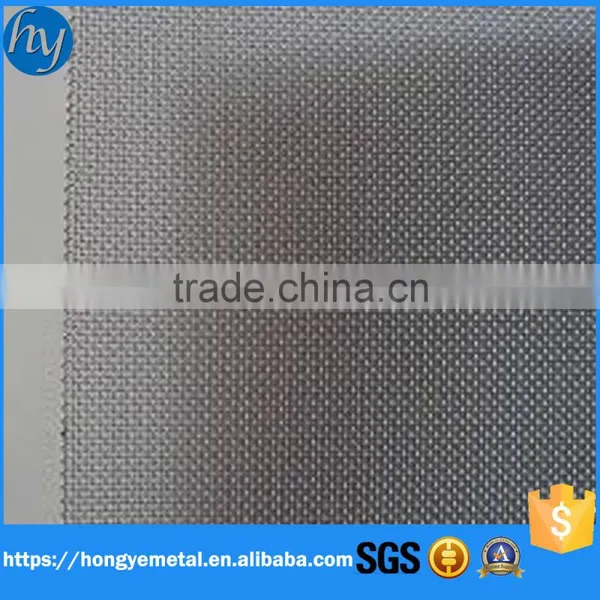

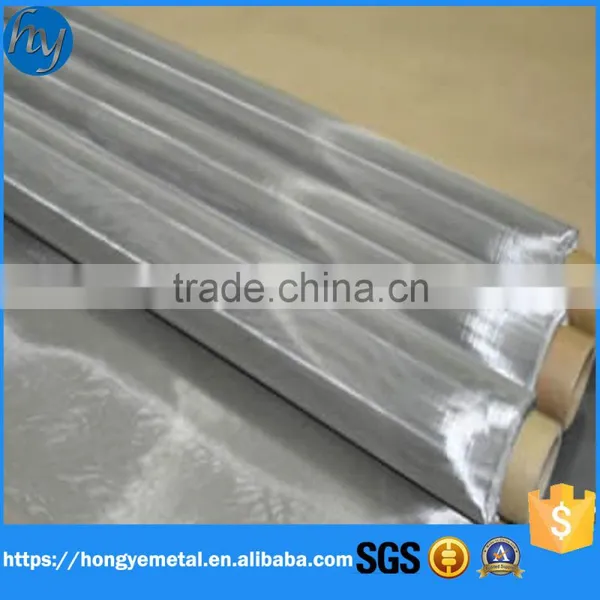

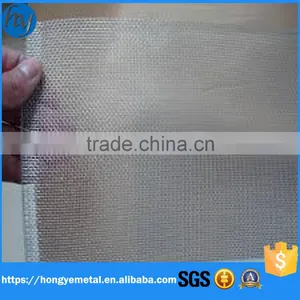

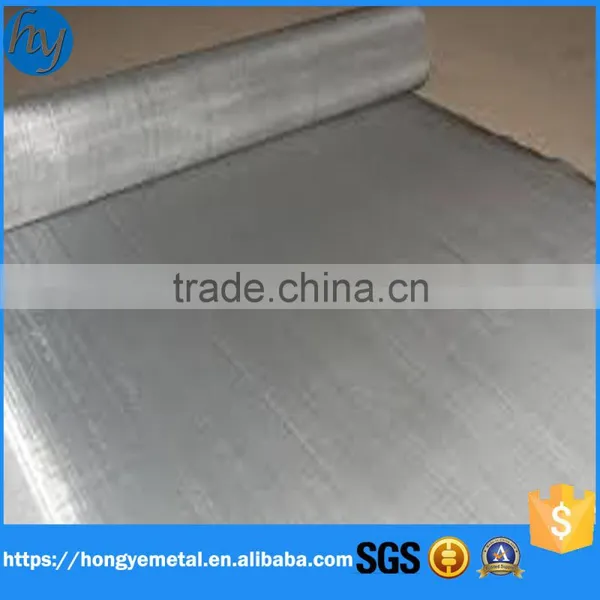

Titanium Woven Wire Mesh
Titanium mesh is light-weight and about 60% of the specific gravity of stainless steel wire mesh, thermal expansion coefficient is about 50% of the stainless steel wire cloth.
characteristics: Chemical resistance is a summary of the nitric acid - strong acid system, and withstand seawater, also wet chlorine gas. For high-strength, corrosion resistance without deterioration due to cold, stress corrosion, has a feature almost no pitting.
Titanium wire mesh is used for living organisms because non-toxic, it can be used such as artificial bone, will also be in direct, fit into the body. And other chemical equipment, oil refining equipment, industrial equipment, etc. It can also be used for pulp and paper.
Specification List of Titanium Wire Mesh | |||||||||
Mesh/Inch | Wire Dia | Mesh | Opening Area | Mesh /Inch | Wire Dia | Mesh Opening | Opening Area |
|
|
3 | 0.800 | 7.670 | 82.0% | 20 | 0.300 | 0.970 | 58.30% |
|
|
4 | 1.000 | 5.350 | 71.0% | 20 | 0.350 | 0.920 | 52.5% |
|
|
4 | 0.890 | 5.460 | 74.0% | 24 | 0.250 | 0.808 | 57.9% |
|
|
5 | 1.000 | 4.080 | 64.5% | 30 | 0.280 | 0.567 | 45.0% |
|
|
6 | 0.800 | 3.433 | 65.8% | 32 | 0.250 | 0.544 | 46.5% |
|
|
8 | 0.810 | 2.365 | 55.40% | 35 | 0.230 | 0.496 | 46.9% |
|
|
9 | 0.800 | 2.022 | 51.3% | 40 | 0.250 | 0.385 | 36.0% |
|
|
10 | 1.000 | 1.540 | 36.8% | 40 | 0.210 | 0.425 | 44.8% |
|
|
10 | 0.635 | 1.905 | 56.2% | 50 | 0.180 | 0.328 | 41.7% |
|
|
12 | 0.600 | 1.517 | 51.3% | 60 | 0.150 | 0.273 | 41.7% |
|
|
14 | 0.406 | 1.408 | 60.2% | 80 | 0.120 | 0.198 | 38.7% |
|
|
16 | 0.450 | 1.138 | 51.3% | 80 | 0.100 | 0.218 | 46.9% |
|
|
18 | 0.254 | 1.157 | 67.2% | 100 | 0.100 | 0.154 | 36.8% |
|
|
Titanium Alloy Wire
Product Type | Wire Dia (mm) | Mark | Standard |
Pure Titanium Wire | 0.1-6.0 | TA1,TA2 | GB/T 3623-2007 |
Titanium Alloy Wire | 0.1-6.0 | TA5,TA7,TC1,TC2,TC3,TC4 | GB/T 3623-2007 |
Hongye is home to a range of wire mesh products dedicated to providing online sales and service, where you can find almost all the related products. Some of the products are manufactured by our factory in Anping (since 1995) and some by our partner factories. All the products have been tested strictly before sales.
Hongye is proud of the people that work for us,the experienced workers, strict inspectors and energetic sales, whose work guarantees the best price, quality products and reliable service for customers.
Hongye is always ready to be your one-stop supermarket for wire mesh.
