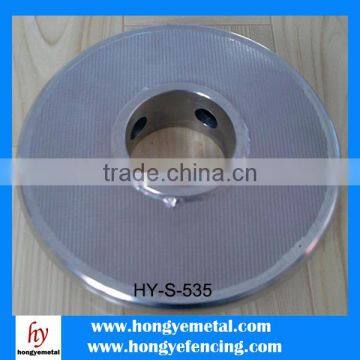

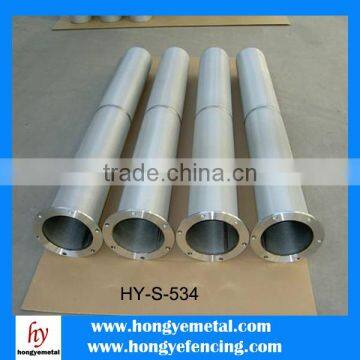

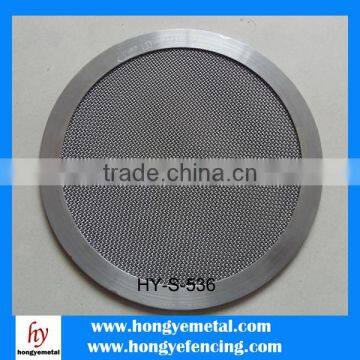

Monel Inconel Alloy Sintered Wire Mesh
Monel Woven Wire Mesh is often used in marine applications such as piping systems and strainer baskets as well as in chemical processing equipment and heat exchangers.
Specification List of Monel Wire Mesh | |||||||||
Mesh/Inch | Wire Dia | Mesh | Opening Area | Weight | Mesh /Inch | Wire Dia | Mesh Opening | Opening Area | Weight |
8 | 0.710 | 2.465 | 60.2% | 2.01 | 30 | 0.279 | 0.567 | 44.8% | 1.167 |
10 | 0.635 | 1.905 | 56.3% | 2.02 | 35 | 0.330 | 0.396 | 29.7% | 1.905 |
12 | 0.584 | 1.532 | 51.8% | 2.04 | 40 | 0.254 | 0.381 | 36% | 1.290 |
14 | 0.417 | 1.397 | 59.0% | 1.217 | 60 | 0.160 | 0.263 | 39% | 0.768 |
16 | 0.376 | 1.212 | 58.0% | 1.131 | 80 | 0.120 | 0.198 | 39% | 0.576 |
18 | 0.406 | 1.005 | 50.7% | 1.483 | 100 | 0.100 | 0.154 | 37% | 0.500 |
20 | 0.406 | 0.846 | 46.2% | 1.648 | 120 | 0.090 | 0.122 | 33% | 0.486 |
24 | 0.274 | 0.784 | 55.0% | 0.901 | 150 | 0.066 | 0.103 | 37.2% | 0.326 |
28 | 0.234 | 0.673 | 55.0% | 0.767 | 200 | 0.053 | 0.074 | 33.6% | 0.281 |
Monel 400 Chemical Composition %
C | Mn | Fe | Cu | Ni | Si | S |
Max | Max | Max | Min/Max | Min | Max | Max |
0.30 | 2 | 2.5 | 28.0-34.0 | 63.0 | 0.5 | 0.024 |
Hongye is home to a range of wire mesh products dedicated to providing online sales and service, where you can find almost all the related products. Some of the products are manufactured by our factory in Anping (since 1995) and some by our partner factories. All the products have been tested strictly before sales.
Hongye is proud of the people that work for us,the experienced workers, strict inspectors and energetic sales, whose work guarantees the best price, quality products and reliable service for customers.
Hongye is always ready to be your one-stop supermarket for wire mesh.
