bridge construction equipment used layher scaffolding stainless steel scaffolding

Safe Durable Frame Scaffolding, Ring Lock Scaffolding System, Scaffolding Prop

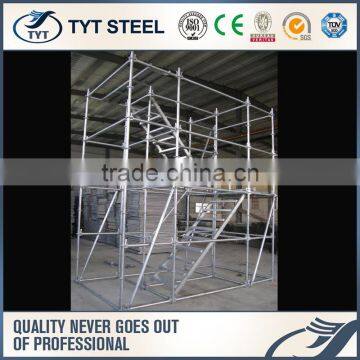

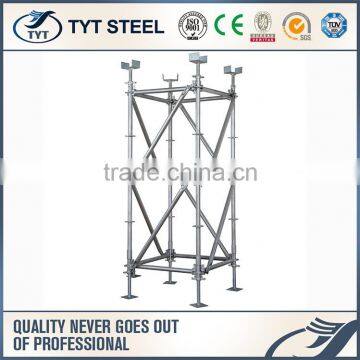

Ringlock scaffolding is the new generation product of cuplock sacffolding.The buckle part is a disc which

diameter 133mm,and thickness 10mm. Scaffold vertical is a tube of D48*3.25mm which material is Q235/Q345B.

On the vertical welded many disc every specific distance ,there is 8 holes on the disc,used to jonit the posts.

On the bottom of vertical post is a base collar used to connect the scaffolding and the ground. Ledger is

made by a tube with two wedge welded on the ends separately

Parts

• props , diagonal brace , cross-bar , other accessories
•  used for construction, meeting platform .

Specification

• Ringlock standard / ledger
• Surface finish: galvanized or powder coated or painted
• Tube diameter : 48mm
• Tube thickness : 3.2mm
• Rosettes at 50mm intervals that accept connections at 8 places around the rosette
• Material : Q235

Ring Lock Standards(Verticals):

Ring Lock Ledgers(Horizontals):

Ring Lock Diagonal Brace:
