Safe Durable Frame Scaffolding, Ring Lock Scaffolding System, Scaffolding Prop

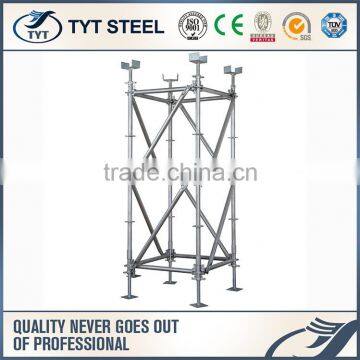

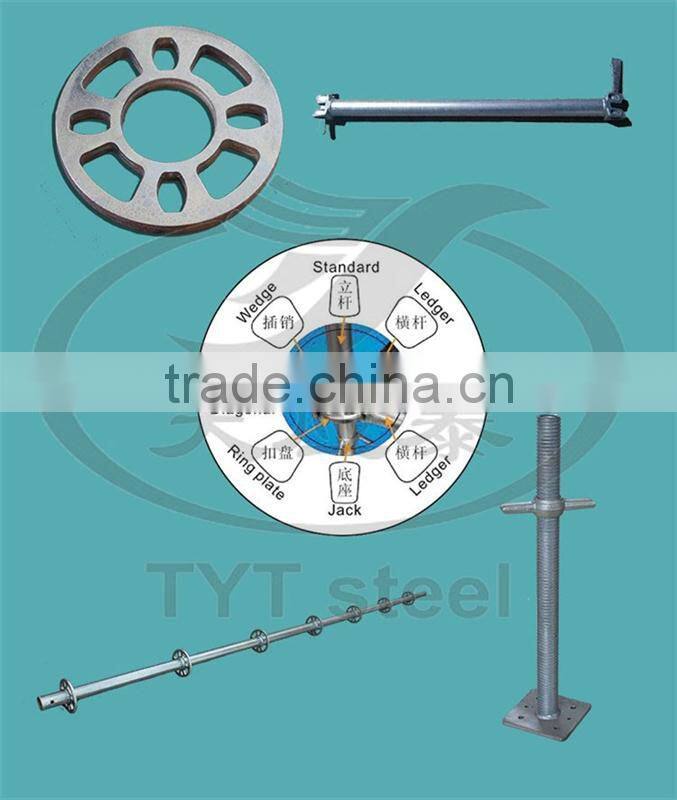

Ringlock scaffolding is the new generation product of cuplock sacffolding.The buckle part is a disc which
diameter 133mm,and thickness 10mm. Scaffold vertical is a tube of D48*3.25mm which material is Q235/Q345B.
On the vertical welded many disc every specific distance ,there is 8 holes on the disc,used to jonit the posts.
On the bottom of vertical post is a base collar used to connect the scaffolding and the ground. Ledger is
made by a tube with two wedge welded on the ends separately

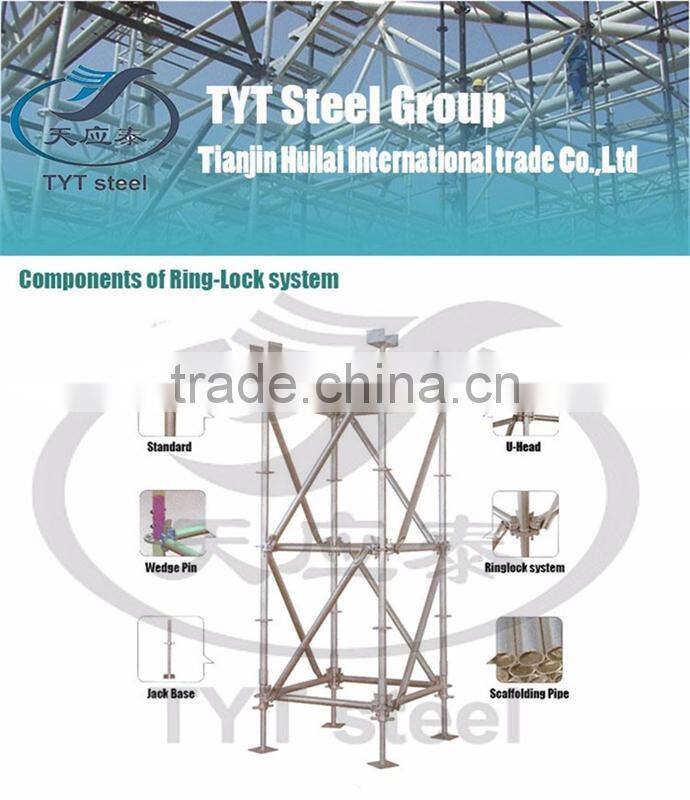

Parts
- props , diagonal brace , cross-bar , other accessories
- used for construction, meeting platform .
Specification
- Ringlock standard / ledger
- Surface finish: galvanized or powder coated or painted
- Tube diameter : 48mm
- Tube thickness : 3.2mm
- Rosettes at 50mm intervals that accept connections at 8 places around the rosette
- Material : Q235

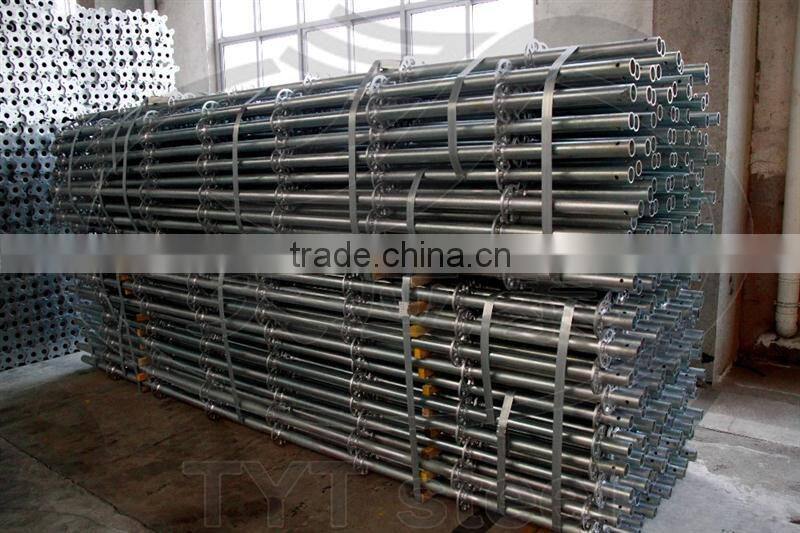

Ring Lock Standards(Verticals):
Code | Length(mm) | Tube Thickness(mm) | Tube Diameter(mm) | Surface Treatment |
RS-S-3000 | 3000 | 3/3.25 | 48 | gi/Painted |
RS-S-2500 | 2500 | 3/3.25 | 48 | gi/Painted |
RS-S-2000 | 2000 | 3/3.25 | 48 | gi/Painted |
RS-S-1500 | 1500 | 3/3.25 | 48 | gi/Painted |
RS-S-1000 | 1000 | 3/3.25 | 48 | gi/Painted |
RS-S-500 | 500 | 3/3.25 | 48 | gi/Painted
|
Ring Lock Ledgers(Horizontals):
Code | Effective Length(mm) | Tube Thickness(mm) | Tube Diameter | Surface Treatment |
QS-L-2000 | 2000 | 3/3.25 | 48 | gi/Painted |
QS-L-1770 | 1770 | 3/3.25 | 48 | gi/Painted |
QS-L1000 | 1000 | 3/3.25 | 48 | gi/Painted
|
Ring Lock Diagonal Brace:
Code | Length(mm) | Tube Thickness(mm) | Tube Diameter(mm) | Surface Treatment |
QS-D-2411 | 2411 | 3 | 48 | gi/Painted |
QS-D-2244 | 2244 | 3 | 48 | gi/Painted
|
