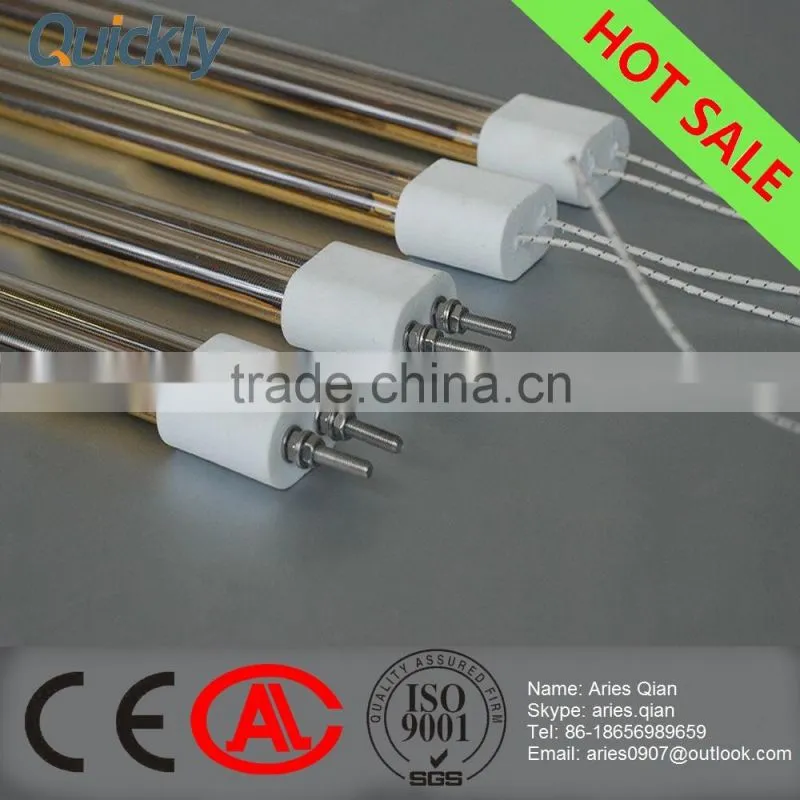

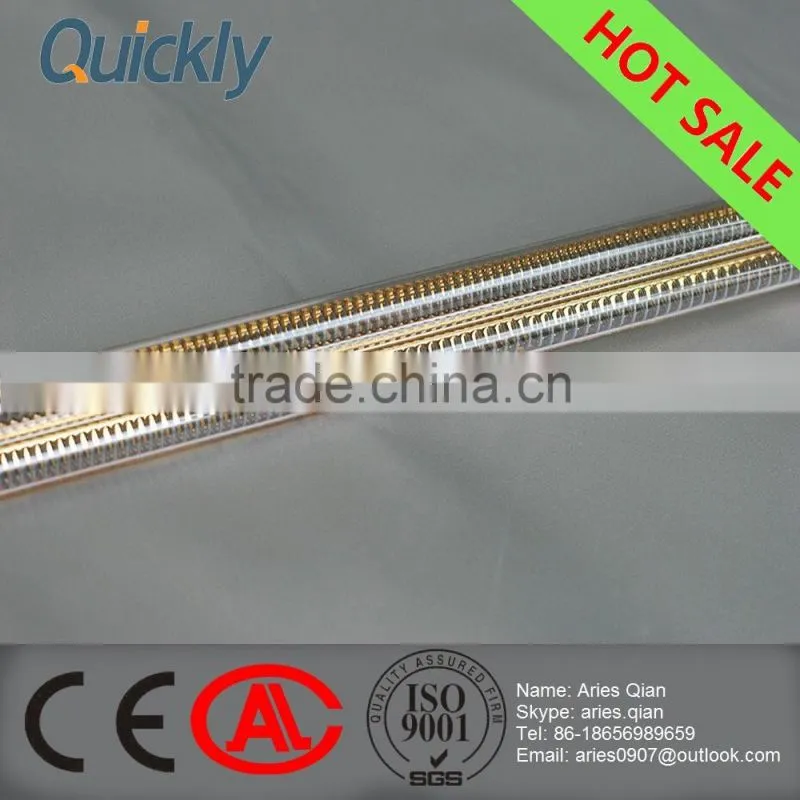

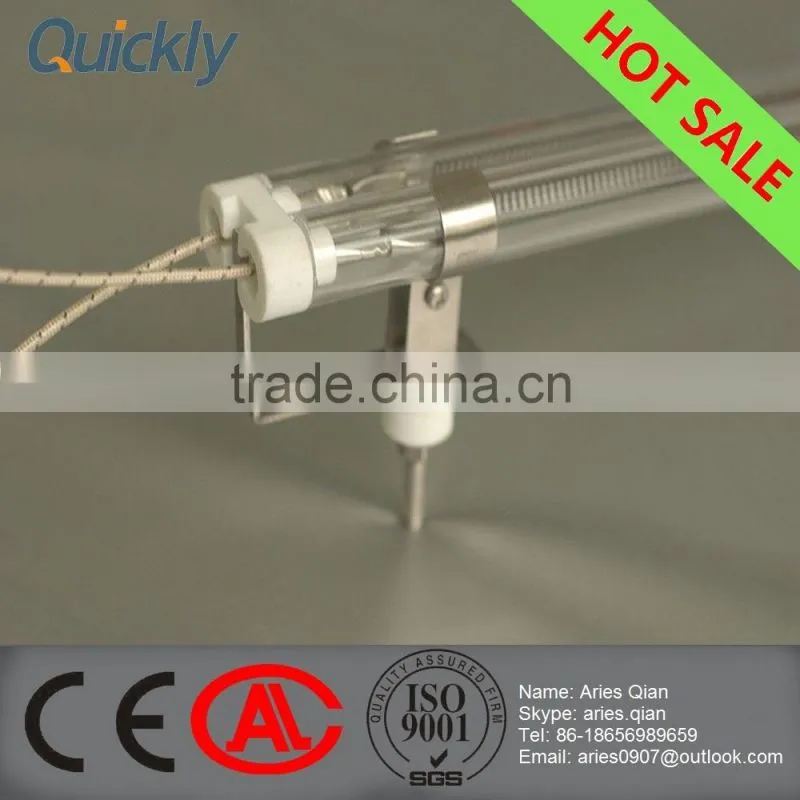

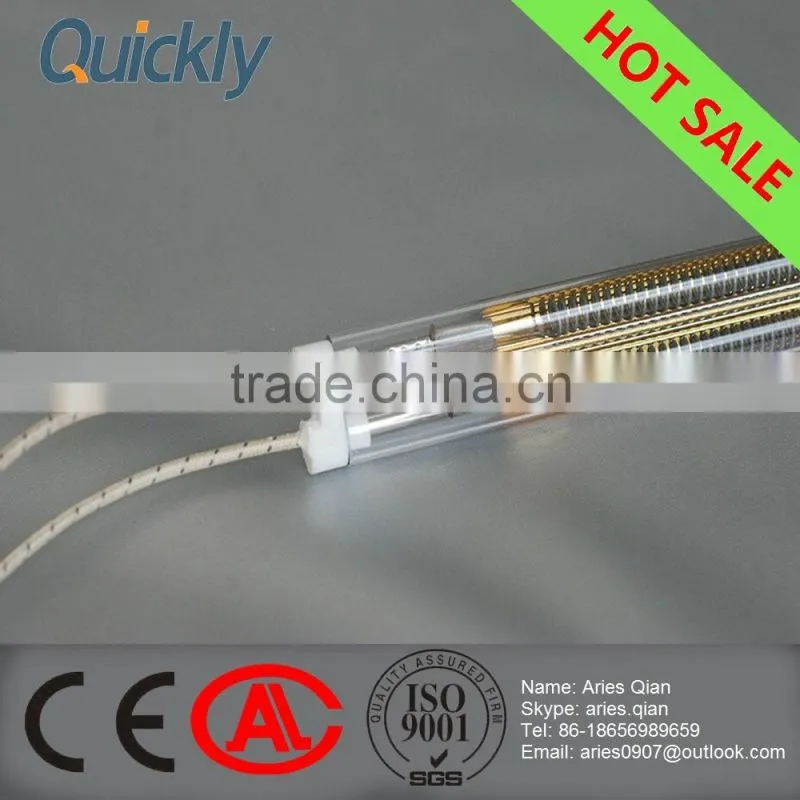

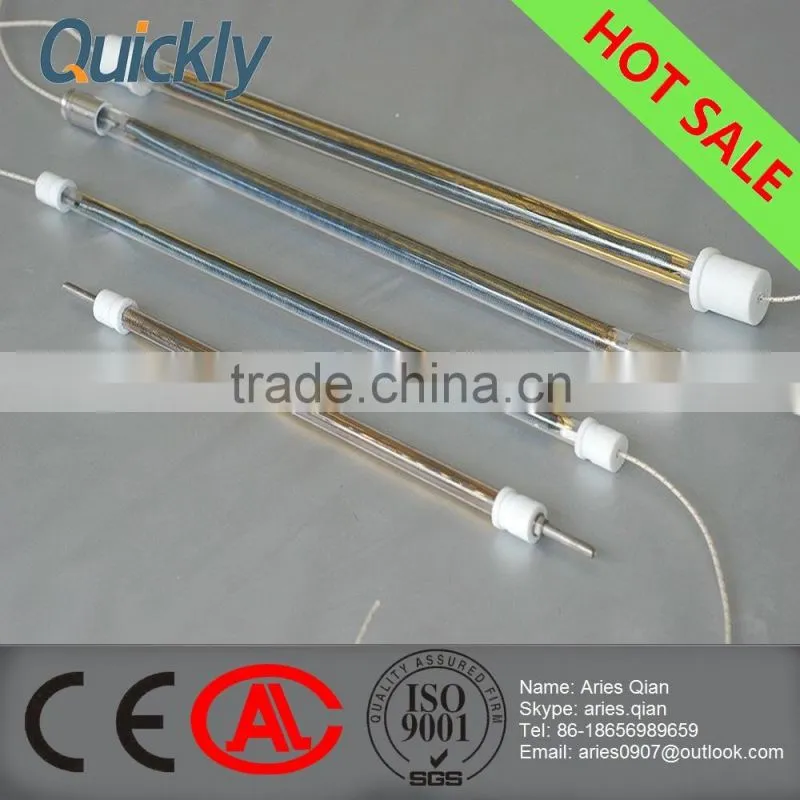

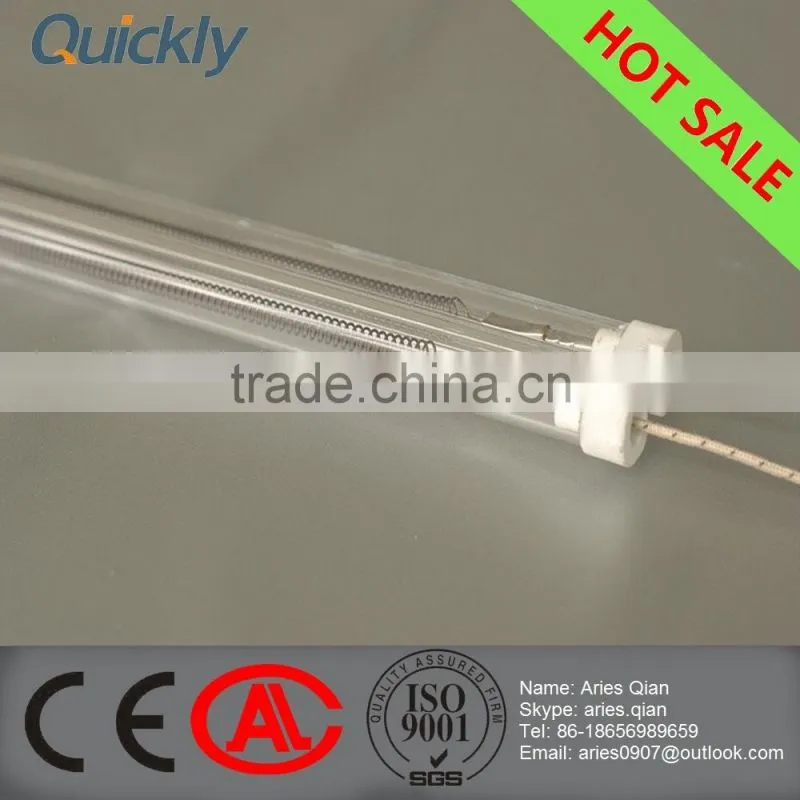

Quartz Heat Element Infrared Heat Bulb 300W

Name: Quartz Heat Element Infrared Heat Bulb 300W
Brand: Quickly
SKU: 141796228
Availability: InStock

US$ 5 - 200 MOQ: 50 Pieces

Key Specifications

Condition:

New

Type:

Other, Infrared Heater, Infrared heating lamp

Power Source:

Electric

Hefei Quickly Electric Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Other, Infrared Heater, Infrared heating lamp

Power Source Electric

Place of Origin Anhui, China

Brand Name Quickly

Model Number KKLDQ-S-005

Dimension(L*W*H) 600*(10*10,18*18, 23*11,33*15)mm

Weight 0.5-6KG

Voltage 45-600V, 110V, 220V, 240V, 380V, customized.

Power(W) 0.3-6KW

Certification CE, MA, AL, CNAL, CE approved by EMC

Warranty 5,000 hours, 5,000 hours

After-sales Service Provided Engineers available to service machinery overseas

1. Infrared heating

Practice has approved infrared heating superior to traditional heating such as hot air,steam,ceramic,gas,or metal radiator.

Infrared heating features: large amounts of energy can be released quickly and accurately,and match the

producing process and production perfectly to heat the objects,infrared heating need no conversion

of intermedium,infrared heating with different wave length can precisely match the heated

material's wave length,get the purpose of heating and drying in

a shorter time,with high quality.Long warranty of heating lamps,reduce the cost ,with no by-

product and pollution,realize green economy,and sustainable development.

Technical Parameters

Voltage	100, 110, 120, 220, 230, 240 V
Wattage	300 -6000W
Dia	10,12,15,20,818,2311,33*15mm
Electricity saving rate	30%
Wavelength	2.0 µm
Response Time	1 - 4 min
Electric heat transformation rate	>98%
Temperature(surface)	900℃
Max heating length	1500/ 2000/ 6500 mm
Wire temperature	800 ° - 950 °C
Max power per unit area	60 kW /m2

IR Benefits and Features

Long life	More than 20000h
Instant heat	within 1-4 min reaction time
High power density	up to 25w/cm
High control ability	neither ballast nor special circuits are necessary for basic usage
No air droughts	because of radiation
Clean	No byproducts, no pollution
Extensive assortment	voltage,wattage,length,base,cables and other specifications are available
High efficiency	more than 85% heat efficiency of full power.
Economical	More than 85% of consumed energy transmitted into infrared heat
Heat can be focused	Same optical properties as light,can be directed by reflectors
Safe	Quartz envelope, heat shock resistant
