Transparent Quartz Halogen Infrared Heating Lamp for Sintering Furnaces and Spary Daying,Ce Certificate,5000 Hours

Transparent Quartz Halogen Infrared Heating Lamp for Sintering Furnaces and Spary Daying,Ce Certificate,5000 Hours photo-1
Transparent Quartz Halogen Infrared Heating Lamp for Sintering Furnaces and Spary Daying,Ce Certificate,5000 Hours photo-2
Transparent Quartz Halogen Infrared Heating Lamp for Sintering Furnaces and Spary Daying,Ce Certificate,5000 Hours photo-3
Transparent Quartz Halogen Infrared Heating Lamp for Sintering Furnaces and Spary Daying,Ce Certificate,5000 Hours photo-4
US$ 42 - 156 MOQ: 100 Meters
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Infrared Heater, transparent short-wave Infrared heating lamp
Power Source:
Other
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Other, Infrared Heater, transparent short-wave Infrared heating lamp
Power Source Other
Place of Origin Anhui, China
Brand Name KKL
Dimension(L*W*H) 23mm*1.5mm*15
Weight 0.5KG
Voltage 110V,220V,380V, 110V, 220V, 240V, 380V, customized.
Power(W) 0.3-6KW
Certification CE, CE, CE approved by EMC
Warranty 5000h, 5,000 hours
After-sales Service Provided No overseas service provided





Infrared lamp

Infrared heating is a kind of radiation heating. It spreads by a kind of infrared radiation

(light)-- infrared light from material in the form of molecular (atomic) resonance absorption,

so as to achieve the purpose of heating. It can be applied in many fields such as the

heating process of industry coating, plastic forming, automotive industry, glass making,

spinning, solar PV, food baking, drying of printing inks, quick drying of primer and paint

on furniture, printed circuit, and so forth.





Specifications:

  • · Infrared quartz tube
  • Lifespan: 5000 hours
  • Certification: CE
  • Suitable for new type quartz tube heaters
  • Voltages: 110, 220 or 380V or other voltage grades needed by users
  • Power: 0.3 to 6kW
  • Length: 300 to 3000mm
  • Outer diameter: 23-33mm
  • Surface temperature of heater divides into three grades:
  •          Low temperature: 400 to 600
  •          Mid temperature: 600 to 800
  •          High temperature: 800 to 1000



  • Wavelength:1.0-1.4um
  • Reaction time:1S





    Advantages:

  • Process, design and products can be customized
  • · 5000 hours lifespan
  • · CE certification
  • · Small order accepted
  • · Science,energy saving,safety and environmental protection
  • · Single-ended wire
  • · Very short time of heating and cooling
  • · Reasonable price
  •

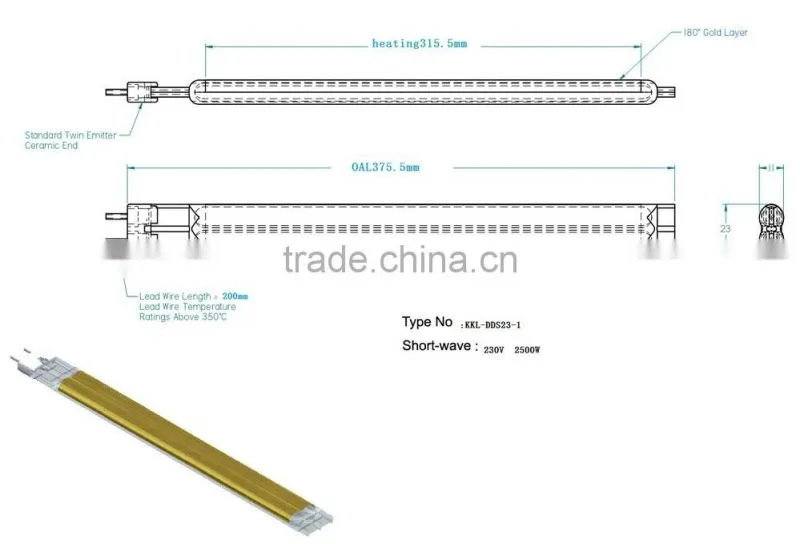

Detailed Images

transparent quartz halogen infrared heating lamp for sintering furnaces and spary daying,Ce certificate,5000 hourstransparent quartz halogen infrared heating lamp for sintering furnaces and spary daying,Ce certificate,5000 hourstransparent quartz halogen infrared heating lamp for sintering furnaces and spary daying,Ce certificate,5000 hourstransparent quartz halogen infrared heating lamp for sintering furnaces and spary daying,Ce certificate,5000 hourstransparent quartz halogen infrared heating lamp for sintering furnaces and spary daying,Ce certificate,5000 hours





Application

transparent quartz halogen infrared heating lamp for sintering furnaces and spary daying,Ce certificate,5000 hourstransparent quartz halogen infrared heating lamp for sintering furnaces and spary daying,Ce certificate,5000 hourstransparent quartz halogen infrared heating lamp for sintering furnaces and spary daying,Ce certificate,5000 hourstransparent quartz halogen infrared heating lamp for sintering furnaces and spary daying,Ce certificate,5000 hourstransparent quartz halogen infrared heating lamp for sintering furnaces and spary daying,Ce certificate,5000 hourstransparent quartz halogen infrared heating lamp for sintering furnaces and spary daying,Ce certificate,5000 hourstransparent quartz halogen infrared heating lamp for sintering furnaces and spary daying,Ce certificate,5000 hours
