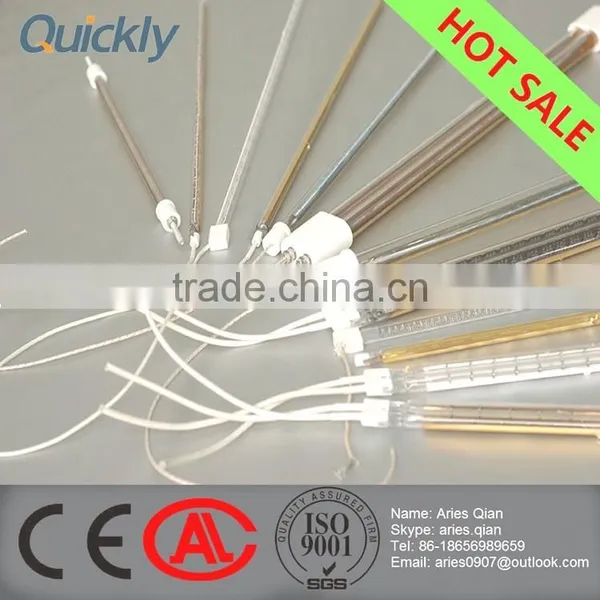

6KW infrared lamp for printing machine, heating element
- 10000 Piece / Pieces per Month
- Shanghai
- T/T Credit Card PayPal
You May Like
-
Infrared halogen heater heat lamp for screen printing
-
Carbon Medium wave quartz heater heating element for screen printing
-
Infrared halogen quartz heater lamp for screen printing heating and drying
-
Short-wave tungsten halogen heater infrared heating lamp for screen printing
-
Quartz heating element infrared heat lamp for silk printing
-
Quartz heating elements infrared heater lamp for screen printing
Product Details
Condition | New | Type | Other, Infrared Heater, 6KW infrared lamp for printing machine, heating element | |
Power Source | Electric | Place of Origin | Anhui, China | |
Brand Name | Quickly | Model Number | KKL-S-005 for 6KW infrared lamp for printing machine, heating element | |
Dimension(L*W*H) | 600*(10*10,18*18, 23*11,33*15)mm | Weight | 0.5-6KG | |
Voltage | 45-600V, 110V, 220V, 240V, 380V, customized. | Power(W) | 0.3-6KW | |
Certification | CE, MA, AL, CNAL, CE approved by EMC | Warranty | 5,000 hours, 5,000 hours | |
After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
6KW infrared lamp for printing machine, heating element
Product Catalog links as follow:
Shortwave heater Medium wave heater Carbon fiber heater
6KW infrared lamp for printing machine, heating element
Voltage | 100, 110, 120, 220, 230, 240, 380, 415 V |
Wattage | 300 -6000W |
Diameter | 10,12,15,20,8*18,23*11,33*15mm |
Electricity saving rate | 30% more |
Wavelength | 0.75-2.0um |
Response Time | 1s |
Electric heat transformation rate | >98% |
Temperature(surface) | 2200℃ |
Max heating length | 6400/ 2400 mm |
Wire temperature | 1800 ° - 2400 °C
|
Max power per unit area | 200 kW /m2 |
|
Application
6KW infrared lamp for printing machine, heating element | |
Automotive | Primer coat,Color coat,Clear coat,Powder coat, Seat de-wrinkling,Head liner forming |
Plastics | Welding,Forming,Softening,Curing,Drying |
Printing | Ink drying,Silk Screening,Bindings,Glue drying |
Food | Baking,cooking,stove,Browning,Dehydrating,Pasteurizing |
Electronics | Re-flow soldering,Water dry-off,Silk screening |
Textiles | Web Drying,Finishing,Pre-shrinking |
Glass- Ceramics | Heating safety glass,Drying mirrors,Drying frit |
Farm | Space heating,Incubating,Brooders |
6KW infrared lamp for printing machine, heating element
1.What kind of customized service will you get?
All kinds of infrared lamps can be customized as you require, including the size,voltage and wattage,reflector and etc.
Besides, we can provide the traditional OEM service. What's more, ODM service is also available!
Wow, sounds great, right?
2.How long is the warranty time?
Short wave infrared lamp:5000 hours;
Medium wave infrared lamp:20000 hours;
Carbon fiber lamp: 10000 hours;
Fast medium wave lamp: 10000 hours.
Remark: man-made and improper operation excluded
Attractive, right? What are you still waiting for?
3.How about the after Sales?
Every infrared lamp will tested by our QC department before shipping.
If the infrared heat lamps have damage in transit or the life time less than we guaranteed(man-made excluded}.We will exchange the infrared heat lamp for the new one.
4.Which terms of payment do you prefer?
T/T, Paypal, Western Union, L/C
Or you would choose Secure Payment
5.How about the delivery time?
Commonly 10-15 working day after receiving the deposit for the infrared heat lamps
Can be shorten if demand is not very big.
We got a reliable delivery line serving for many years.
6.What's the package like?
Outside packed in wood and inside packed in soft EPE soft foam mat for maximum shock absorption, we can do package according to your design.
