Portable Infrared Heater Lamp Quartz Tubular Infrared Heating Element

FOB Price

US$ 1 - 200 / Piece

100 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Certification

CE, Other, CE, CE approved by EMC

Product H

Technical Parameters

Voltage	100, 110, 120, 220, 230, 240 V
Wattage	300 -6000W
Dia	10,12,15,20,818,2311,33*15mm
Electricity saving rate	35%
Wavelength	1.0-1.4um
Response Time	1s
Electric heat transformation rate	>98%
Temperature(surface)	2200℃

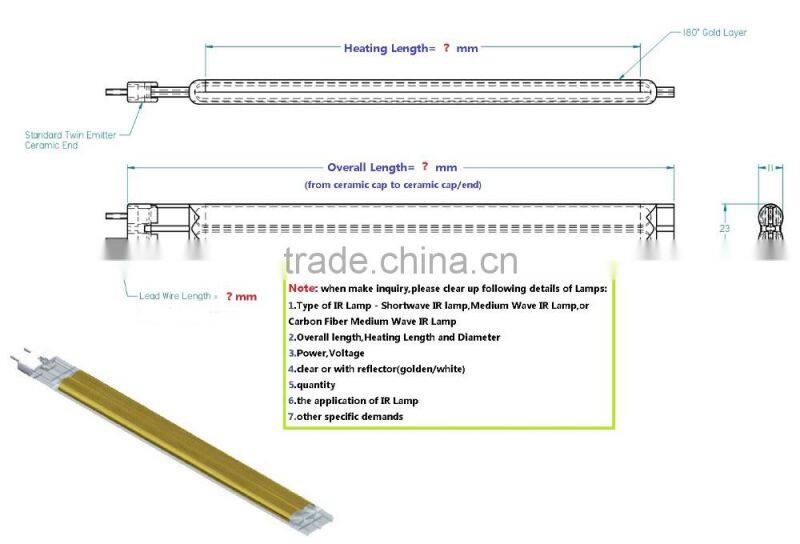

Max heating length	6400/2400mm
Wire temperature	1800 ° - 2400 °C
Max power per unit area	200 kW /m2

IR Benefits and Features

Long life	More than 5000h
Instant heat	within 1 second reaction time
High power density	< 200w/cm
High control ability	neither ballast nor special circuits are necessary for basic usage
No air droughts	because of radiation
Clean	No byproducts, no pollution
Extensive assortment	voltage,wattage,length,base,cables and other specifications are available
High efficiency	more than 85% heat efficiency of full power.
Economical	More than 85% of consumed energy transmitted into infrared heat
Heat can be focused	Same optical properties as light,can be directed by reflectors
Safe	Quartz envelope, heat shock resistant
