Home > Products > Glass Industry IR lamp > Glass making conveyor dryer ir heater lamps 20000 hours

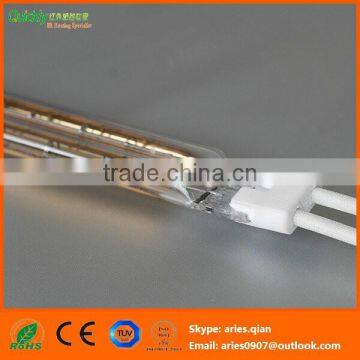

Glass making conveyor dryer ir heater lamps 20000 hours
- 10000 Piece / Pieces per Month
- Shanghai
- T/T Credit Card PayPal
- Heater Core Heater Welding Gun Heater Element
- Industrial Diesel Heater /Agricultural Vegetable Planting/Aquaculture Industry Heater
- Preheating equipment for hardbandig welding
- Heater Core Heater Welding Gun Heater Element
- DL-3 model electric air heater with upper outlet and lower inlet
- DL-2 model electric air heater with Left-Right Circulation
Product Details
Condition: | New | Type: | Other, Infrared Heater, Infrared heating lamp | Power Source: | Electric |
Place of Origin: | Anhui, China | Brand Name: | Quickly | Model Number: | KKL-S-2311 |
Dimension(L*W*H): | 600*(10*10,18*18, 23*11,33*15)mm | Weight: | 0.5-6KG | Voltage: | 45-600V, 110V, 220V, 240V, 380V, customized. |
Power(W): | 0.3-6KW | Certification: | CE, MA, AL, CNAL, CE approved by EMC | Warranty: | 5,000 hours, 5,000 hours |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
1. Infrared heating
Practice has approved infrared heating superior to traditional heating such as hot air,steam,ceramic,gas,or metal radiator.
Infrared heating features: large amounts of energy can be released quickly and accurately,and match the
producing process and production perfectly to heat the objects,infrared heating need no conversion
of intermedium,infrared heating with different wave length can precisely match the heated
material's wave length,get the purpose of heating and drying in
a shorter time,with high quality.Long warranty of heating lamps,reduce the cost ,with no by-
product and pollution,realize green economy,and sustainable development.
Product description
Technical Parameters
Short wave
Voltage | 100, 110, 120, 220, 230, 240 V |
Wattage | 300 -6000W |
Dia | 10,12,15,20,8*18,23*11,33*15mm |
Electricity saving rate | 30% |
Wavelength | 1.0-1.4um |
Response Time | 1s |
Electric heat transformation rate | >98% |
Temperature(surface) | 2200℃ |
Max heating length | 6400/ 2400 mm |
Wire temperature | 1800 ° - 2400 °C
|
Max power per unit area | 200 kW /m2 |
|
|
IR Benefits and Features
Long life | More than 5000h |
Instant heat | within 1 second reaction time |
High power density | up to 200w/cm |
High control ability | neither ballast nor special circuits are necessary for basic usage |
No air droughts | because of radiation |
Clean | No byproducts, no pollution |
Extensive assortment | voltage,wattage,length,base,cables and other specifications are available |
High efficiency | more than 85% heat efficiency of full power. |
Economical
| More than 85% of consumed energy transmitted into infrared heat |
Heat can be focused | Same optical properties as light,can be directed by reflectors |
Safe | Quartz envelope, heat shock resistant |
Picture showcase:
Packing ways: wooden packing
Delivery Time: 10-15 days after receiving the deposit
We have a specialized design team and efficient service department, welcome your any technical question and kind inquiry. We are pleasure to help you! Your precious advice will be appreciated and we are very thankful for it!
1.If you have an urgent question, you can contact our slaes via trade manager of alibaba or email to them!
2.If you have a technic problem, please contact with the online service and they will help you deliver it to the technology department, we will give our solutions once they have it after experiments and discusions.
Hefei Quickly Electric Co., Ltd is a company full of power and thought. With decades of studying on the infrared radiation, we find that heating by infrared light can help us improve the efficiency of producing and save a lot of energy we used to losing. It directly produce a same wavelength as the heated objects so as to ensure the mass use of energy. It breaks the tranditional heating ways and quickly used in every heating process these years. It has been a trend of using it to replace the original heating ways!
Address: No.C34-104,Jia Hai Industrial City, East New Bengbu Road and South Mei Chonghu, Xinzhan Zone, Heifei
HOMEPAGE OF ALIBABA:
1.Can you make custom size lamp?
All of our lamps are customized,the size,voltage and wattage,reflector and etc.Just tell me what you
need,or send us drawing.We will give you the lamp you want.
2.what is the warranty?
Short wave infrared lamp lifespan 5000 hours,Medium wave infrared lamp lifespan 20000 hours,carbon fiber lamp lifespan 10000 hours,fast medium wave lamp lifespan 10000 hours(man-made and improper operation excluded)
3.How about the after Sales?
Every lamp will tested by our QC department before shipping.If the lamps have damage in transit or the life time less than we guaranteed(man-made excluded}.We will send you new lamps for replace.
4.What is the payment term?
We accept T/T,Paypal,Western Union,L/C
5.How about the delivery time?
10-15 working day after receiving the deposit
6.How about the package?
Outside packed in wood and inside packed in soft EPE soft foam mat, we can do package according to your design.
