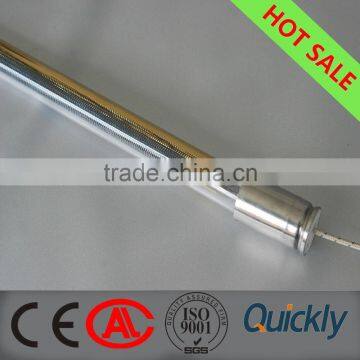

Tubular quartz infrared heating element for flat glass

Tubular quartz infrared heating element for flat glass

Specifications:

• Specifications:

  • infrared quartz tube
  • Lifespan: 20000 hours
  • Certification: CE
  • Suitable for new type quartz tube heaters
  • Voltages: 110, 220 or 380V or other voltage grades needed by users
  • Power: 0.3 to 6kW
  • Length: 300 to 3000mm
  • Outer diameter: 10-18mm
  • Surface temperature of heater divides into three grades:
  • o Low temperature: 400 to 600℃
  • o Mid temperature: 600 to 800℃
  • o High temperature: 800 to 1000℃
  • Wavelength:2.4-2.7um
  • The Max unit area:60kw/sqm
  • Reaction time:1-4s

   Advantages:

• Process, design and products can be customized
• · 20000 hours lifespan
• · CE certification
• · Small order accepted
• · Science,energy saving,safety and environmental protection
• · Single-ended wire
• · Very short time of heating and cooling
• · Reasonable price

Tubular quartz infrared heating element for flat glass

Application

Tubular quartz infrared heating element for flat glass

Delivery time:  about 15 workdays, specific date depends the quantity of order. (Off-day not included).

Way of packing:wooden case(qualified the requirements of exporting)

Way of delivery:chosen by you, International Express and Shipping also available.

Notice:We can exchange the products for you after you provide the supporting information if it is damaged during the warranty time or within 15 days of delivery. (Man-made damage not included)!

Tubular quartz infrared heating element for flat glass

Quality guarantee:The warranty time of Medium-wave heating lamp is 20000 hours. The warranty time of Carbon Fiber Heating Lamp is 10000 hours and the warranty time of Short Wave Halogen Heating Lamp is 5000 hours(with the condition of constantly using for 24 hours per day, Man-made damage not included).

Terms of Payment:Delivery once receiving the deposit (T/T or Western union)

 Hefei Quickly Electric Co., Ltd is a company full of power and thought. With decades of studying on the infrared radiation, we find that heating by infrared light can help us improve the efficiency of producing and save a lot of energy we used to losing. It directly produce a same wavelength as the heated objects so as to ensure the mass use of energy. It breaks the tranditional heating ways and quickly used in every heating process these years. It has been a trend of using it to replace the original heating ways!

Address:  No.C34-104,Jia Hai Industrial City, East New Bengbu Road and South Mei Chonghu, Xinzhan Zone, Heifei

Contact us

Aries Qian

Skype: aries.qian

TEL: 86-0551-65208999

Phone: 86-18656989659

Email: aries0907(at)/quickly2(at)
