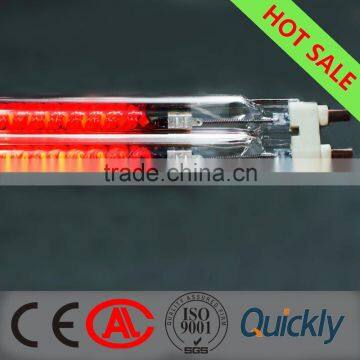

Infrared halogen quartz heater lamp for glass printing heating process
- 10000 Piece / Pieces per Month
- Shanghai
- T/T
- Infrared Heaters Tabletop Heater Electric Outdoor Heaters 1500W
- Far infrared heat lamp 850mm 2000w infrared lamp for paint drying
- Factory direct quartz infrared lamp 850mm 2000w infrared bulb
- 850mm 2000w tungsten near infrared lamp half white coated quartz halogen heat lamp
- Fast Heating 2KW Electric Patio Heater with Quartz Heating Element
- 2000w Portable Outdoor Infrared Quartz Freestanding Patio Heater
Product Details
Place of Origin: | Anhui, China | Brand Name: | Quickly | Model Number: | kkldq-1-20 |
Color: | White | Specification: | Other, CE | Material: | Other, Quartz, high-calss imported quartz sand and heating filament |
Certification: | Other, CE, CE approved by EMC |
Product Description
Infrared halogen quartz heater lamp for glass printing heating process
Technical Parameters
Voltage | 100, 110, 120, 220, 230, 240 V |
Wattage | 300 -6000W |
Dia | 10,12,15,20,8*18,23*11,33*15mm |
Electricity saving rate | 30% |
Wavelength | 2.4-2.7 µm |
Response Time | 1 - 2s |
Electric heat transformation rate | >98% |
Temperature(surface) | 1200℃ |
Max heating length | 6400/ 2400 mm |
Wire temperature | 1400 °C - 1800 °C |
Max power per unit area | 150 kW /m2 |
Long life | More than 10000h |
Instant heat | within 1-4 min reaction time |
High power density | up to 80w/cm |
High control ability | neither ballast nor special circuits are necessary for basic usage |
No air droughts | because of radiation |
Clean | No byproducts, no pollution |
Extensive assortment | voltage,wattage,length,base,cables and other specifications are available |
High efficiency | more than 85% heat efficiency of full power. |
Economical
| More than 85% of consumed energy transmitted into infrared heat |
Heat can be focused | Same optical properties as light,can be directed by reflectors |
Safe | Quartz envelope, heat shock resistant |
Infrared halogen quartz heater lamp for glass printing heating process
Infrared heating lamp application | |
Automotive | Primer coat,Color coat,Clear coat,Powder coat, Seat de-wrinkling,Head liner forming |
Plastics | Welding,Forming,Softening,Curing,Drying |
Printing | Ink drying,Silk Screening,Bindings,Glue drying |
Food | Baking,cooking,stove,Browning,Dehydrating,Pasteurizing |
Electronics | Re-flow soldering,Water dry-off,Silk screening |
Textiles | Web Drying,Finishing,Pre-shrinking |
Glass- Ceramics | Heating safety glass,Drying mirrors,Drying frit |
Farm | Space heating,Incubating,Brooders |
Picture showcase
10-15 working day after receiving the deposit
Outside packed in wood and inside packed in soft EPE soft foam mat, we can do package according to your design.
1.Can you make custom size lamp?
All of our lamps are customized,the size,voltage and wattage,reflector and etc.Just tell me what you
need,or send us drawing.We will give you the lamp you want.
2.what is the warranty?
Short wave infrared lamp lifespan 5000 hours,Medium wave infrared lamp lifespan 20000 hours,carbon fiber lamp lifespan 10000 hours,fast medium wave lamp lifespan 10000 hours(man-made and improper operation excluded)
3.How about the after Sales?
Every lamp will tested by our QC department before shipping.If the lamps have damage in transit or the life time less than we guaranteed(man-made excluded}.We will send you new lamps for replace.
4.What is the payment term?
We accept T/T,Paypal,Western Union,L/C
