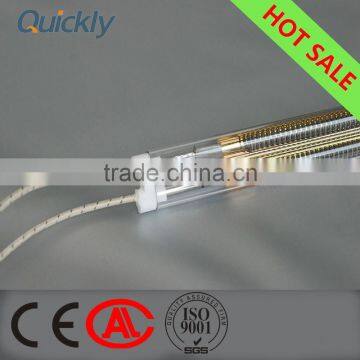

quartz infrared heating element for food warmer
- 10000 Piece / Pieces per Month
- Shanghai
- T/T
- Heater Core Heater Welding Gun Heater Element
- Industrial Diesel Heater /Agricultural Vegetable Planting/Aquaculture Industry Heater
- Preheating equipment for hardbandig welding
- Heater Core Heater Welding Gun Heater Element
- DL-3 model electric air heater with upper outlet and lower inlet
- DL-2 model electric air heater with Left-Right Circulation
Product Details
Brand Name: | quickly | Voltage: | can be customized, 110V, 220V, 240V, 380V, customized. | Power(W): | 300w-6kw |
Certification: | CE, CE approved by EMC | Type: | Other, quartz heating element |
Product Description
Technical Parameters
Voltage | 100, 110, 120, 220, 230, 240 V |
Wattage | 300 -6000W |
Dia | 10,12,15,20,8*18,23*11,33*15mm |
Electricity saving rate | 30% |
Wavelength | 2.0 µm |
Response Time | 1 - 4 min |
Electric heat transformation rate | >98% |
Temperature(surface) | 1200℃ |
Max heating length | 1500/ 2000/ 6500 mm |
Wire temperature | 1200 °C |
Max power per unit area | 60 kW /m2 |
IR Benefits and Features
Long life | More than 20000h |
Instant heat | within 1-4 min reaction time |
High power density | up to 25w/cm |
High control ability | neither ballast nor special circuits are necessary for basic usage |
No air droughts | because of radiation |
Clean | No byproducts, no pollution |
Extensive assortment | voltage,wattage,length,base,cables and other specifications are available |
High efficiency | more than 85% heat efficiency of full power. |
Economical
| More than 85% of consumed energy transmitted into infrared heat |
Heat can be focused | Same optical properties as light,can be directed by reflectors |
Safe | Quartz envelope, heat shock resistant |
Applications
Packing: wooden case(qualified the requirements of exporting)
Shipping: chosen by you, International Express and Shipping also available,ensure goods shipped based on sales order requirement.
1.Reply inquiry within 24hours
2.Customize size are welcome,OEM welcome. Sample order are welcome.
3.The high quality at best price.
4.Delivery goods to our customers, 30 working-day after reciving client's deposit(according the final quantity)
5.Payment:T/T,West Union, Paypal,L/C
6.We can exchange the products for you after you provide the supporting information if it is damaged during the warranty time or within 30 days of delivery. (Man-made damage not included)!
Hefei Quickly Electric Co., Ltd is a qualified manufacturer which specializes in developing
producing and marketing top class infrared heat lamp.With decades of studying on the infrared radiation, we find that heating by infrared light can help us improve the efficiency of producing and save energy we used to losing.
(1)More than 10 years history in manufacturing infrared heat lamp
(2)Approved ISO9001 and international certificate: CE
(3)Specialized in designing, researching, developing, manufacturing and exporting
Address: No.C34-104,Jia Hai Industrial City, East New Bengbu Road ,Xinzhan Zone, Heifei
1.Can you make custom size lamp?
All of our lamps are customized,the size,voltage and wattage,reflector and etc.Just tell me what you
need,or send us drawing.We will give you the lamp you want.
2.How about the after Sales?
Every lamp will tested by our QC department before shipping.If the lamps have damage in transit or the life time less than we guaranteed(man-made excluded}.We will send you new lamps for replace.
3.how to make an order?
when inquire,please inform us followings:
a.type of lamps,shortwave infrared lamp,medium wave infrared lamp or caron fiber medium wave lamp
b.power,voltage,overall and heating length
c.the diameter of tube,10mm,12mm,15mm,18mm,23*11mm,33*15mm,single tube or twin tubes
d.transparent,white-plated or golden-reflector
e.max temperature when working
f.what do lamps used for?
