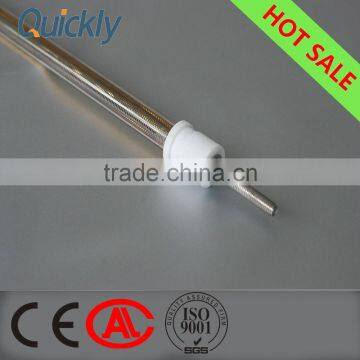

Help CenterInfrared Quartz Heating Lamp for Food Cooking,5000 Hours Warranty,environmental-friendly and Safe
Related Products
-
Infrared Heating Element for Food Warmer and Toster Oven,heat QuicklyUS$ 1 - 200MOQ: 100 Meters -
Infrared Led Heat Lamp 1000w for Oven ,food CookingUS$ 1 - 200MOQ: 300 Pieces
-
Carbon Fiber Infrared Heater Lamp for Food Cooking,factory Sell DirectlyUS$ 1 - 200MOQ: 100 Pieces
-
Infrared Heating Element 220v for Food DryingUS$ 1 - 200MOQ: 300 Pieces
-
Carbon Fiber Heater Far Infrared Heating Element IR Lamp for Food HeatingUS$ 5 - 200MOQ: 50 Pieces
Technical Parameters
Voltage | 100, 110, 120, 220, 230, 240 V |
Wattage | 300 -6000W |
Dia | 10,12,15,20,8*18,23*11,33*15mm |
Electricity saving rate | 30% |
Wavelength | 2.4-2.7µm |
Response Time | 1 - 2s |
Electric heat transformation rate | >98% |
Temperature(surface) | 900℃ |
Max heating length | 6400/ 2400 mm |
Wire temperature | 800 °C - 950 °C |
Max power per unit area | 150 kW /m |
IR Benefits and Features
Long life | More than 10000h |
Instant heat | within 1-4 min reaction time |
High power density | up to 80w/cm |
High control ability | neither ballast nor special circuits are necessary for basic usage |
No air droughts | because of radiation |
Clean | No byproducts, no pollution |
Extensive assortment | voltage,wattage,length,base,cables and other specifications are available |
High efficiency | more than 85% heat efficiency of full power. |
Economical
| More than 85% of consumed energy transmitted into infrared heat |
Heat can be focused | Same optical properties as light,can be directed by reflectors |
Safe | Quartz envelope, heat shock resistant |
| Infrared heating lamp application | ||||||
| Automotive | Primer coat,Color coat,Clear coat,Powder coat, seat de-wrinkling,Head liner forming | |||||
| Plastics | Welding,Forming,Softening,Curing,Drying | |||||
| Printing | Ink drying,Silk Screening,Bindings,Glue drying | |||||
| Food | Baking,cooking,stove,Browning,Dehydrating,Pasteurizing | |||||
| Electronics | Re-flow soldering,Water dry-off,Silk screening | |||||
| Textiles | Web Drying,Finishing,Pre-shrinking | |||||
| Glass- Ceramics | Heating safety glass,Drying mirrors,Drying frit | |||||
| Farm | Space heating,Incubating,Brooders | |||||
1.Can you make custom size lamp?
All of our lamps are customized,the size,voltage and wattage,reflector and etc.Just tell me what you
need,or send us drawing.We will give you the lamp you want.
2.what is the warranty?
Short wave infrared lamp lifespan 5000 hours,Medium wave infrared lamp lifespan 20000 hours,carbon fiber lamp lifespan 10000 hours,fast medium wave lamp lifespan 10000 hours(man-made and improper operation excluded)
3.How about the after Sales?
Every lamp will tested by our QC department before shipping.If the lamps have damage in transit or the life time less than we guaranteed(man-made excluded}.We will send you new lamps for replace.
4.What is the payment term?
We accept T/T,Paypal,Western Union,L/C
5.How about the delivery time?
10-15 working day after receiving the deposit
6.How about the package?

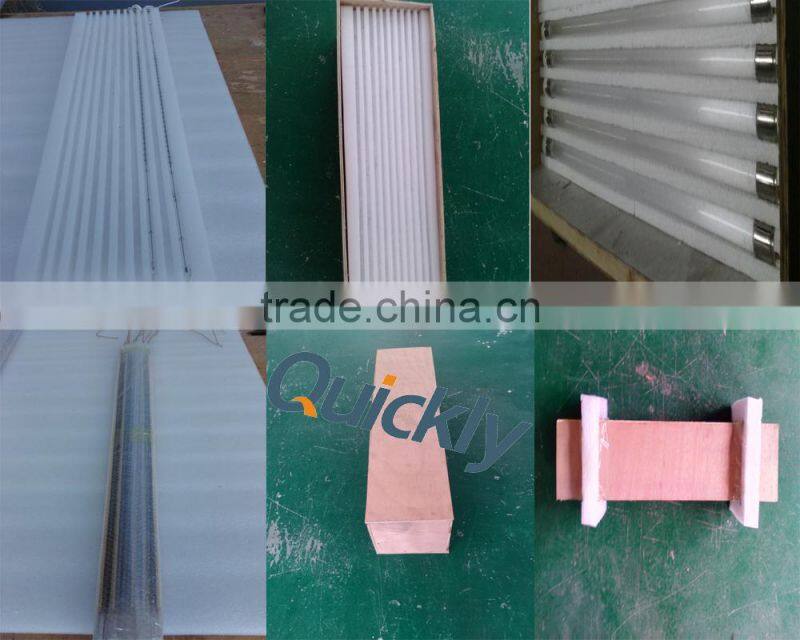

Outside packed in wood case and inside packed in soft EPE soft foam mat, we can do package according to your design.
7.how to make an order?
when inquire,please inform us followings:
a.type of lamps,shortwave infrared lamp,medium wave infrared lamp or caron fiber medium wave lamp
b.power,voltage,overall and heating length
c.the diameter of tube,10mm,12mm,15mm,18mm,23*11mm,33*15mm,single tube or twin tubes
d.transparent,white-plated or golden-reflector
e.max temperature when working
f.what do lamps used for?
8.How to contact Quickly?
Skype: cathy520zjf
QQ:2764732842
wechat: 245162546
Mobile: 86-13767487075
