quartz tubular infrared curing lamp,auto body paint booth drying element
- 10000 Piece / Pieces per Month
- shanghai
- T/T Credit Card
You May Like
-
CE and ISO approved car dry spray paint booth infrared heater lamps
-
car spray paint booth shortwave infrared heater curing lamp
-
car paint drying infrared heat lamp,spray booth heat lamp
-
spray booth car paint infrared paint dryer lamp,infrared paint drying lamps
-
Transparent carbon fiber twin tubes
-
White-coated carbon fiber single tube
Product Details
| Place of Origin | Anhui, China | Brand Name | Quickly | |
| Color | Other, transparent, Yellow, white coated | Specification | Other | |
| Material | Other, quartz, Quartz, high-calss imported quartz sand and heating filament | Certification | Other, CE, CE, CE approved by EMC |
Product Description

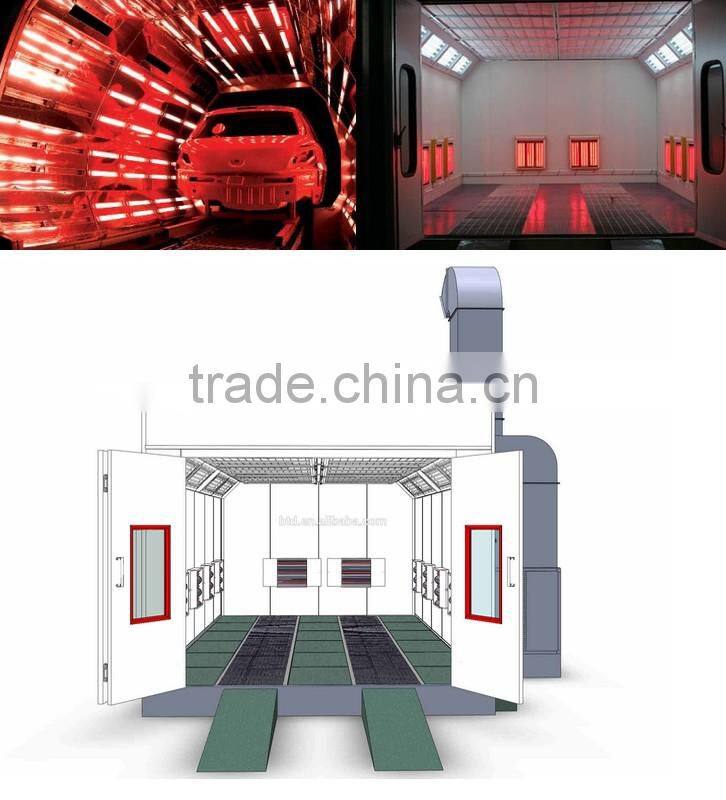

Application in Automobile
Technical Parameters
Voltage | 100, 110, 120, 220, 230, 240 V |
Wattage | 300 -6000W |
Dia | 10,12,15,20,8*18,23*11,33*15mm |
Electricity saving rate | 35% |
Wavelength | 1.0-1.4um |
Response Time | 1s |
Electric heat transformation rate | >98% |
Temperature(surface) | 2200℃ |
Max heating length | 6400/2400mm |
Wire temperature
| 1800 ° - 2400 °C
|
Max power per unit area | 200 kW /m2 |
IR Benefits and Features
Long life | More than 5000h |
Instant heat | within 1 second reaction time |
High power density | < 200w/cm |
High control ability | neither ballast nor special circuits are necessary for basic usage |
No air droughts | because of radiation |
Clean | No byproducts, no pollution |
Extensive assortment | voltage,wattage,length,base,cables and other specifications are available |
High efficiency | more than 85% heat efficiency of full power. |
Economical
| More than 85% of consumed energy transmitted into infrared heat |
Heat can be focused | Same optical properties as light,can be directed by reflectors |
Safe | Quartz envelope, heat shock resistant |
Market in
1.Delivery and Package
2.Payment Terms
3.Reply inquiry within 24hours
4.Customize size are welcome,OEM welcome. Sample order are welcome.
5.Every lamp will be tested by our QC department before shipping. Any damage
before delivery will be replaced right away. Damage caused by delivery
and no man-made reason within guarantee will also send the replacement heaters for you.
