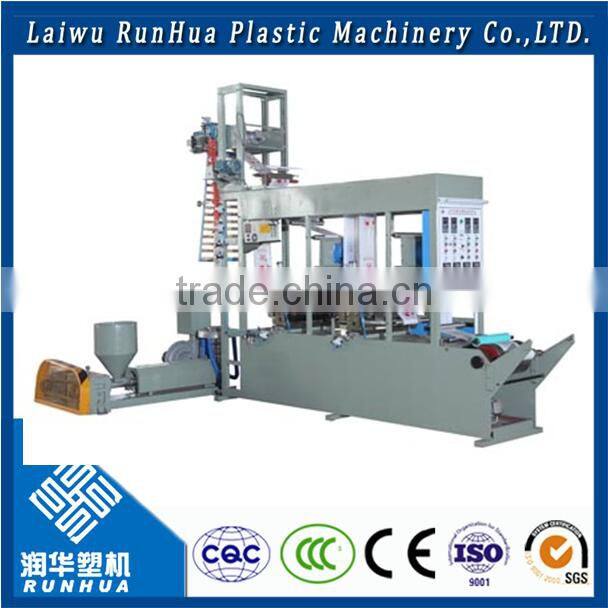

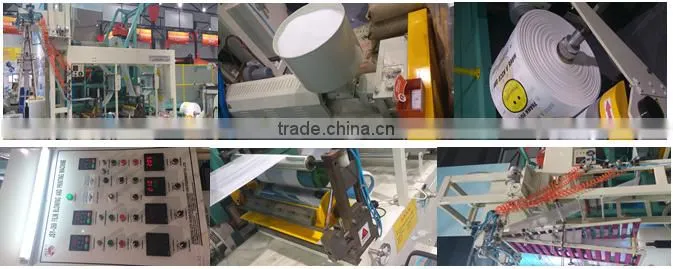

Film blowing and printing machine, plastic shopping bag making machine line
Film blowing and printing machine, plastic shopping bag making machine line
FEATURES
1.Wide application, several purposes serving
2.Advanced structure, easy operation, correct chromatography, easy maintenance
3.Raw material saving, reliable quality
Characteristics contrast to traditional wheel print machine:
a. Bright color, more fastness
b. Blow and color-print at same time, correct chromatography
c. Easy maintenance, reliable and stable quality
d. Less power consumption, less labor, work time saving, less cost
This machine adopt double friction rewinders and cutting device.
It could produce the single layer film and double layers rounded film according to clients’ requirements.
It could double rewind in single layer or single rewind in two layers.
Film blowing and printing machine, plastic shopping bag making machine line
I | FEATURE | Specifications |
1 | Material to be processed: | HDPE,LDPE ,recycle material and degradable material. |
2 | Film width: | 100-350 mm |
3 | Film thickness: | HDPE:0.015-0.03MM,LDPE:0.015-0.1MM |
4 | Extrusion Output: | 10-45KG/H |
5 | Screw speed: | 10-100R/MIN |
6 | Total Power: | 30KW |
7 | Machine weight: | 2500KG |
8 | Overall Dimensions: | 6000*2000*2500MM |
9 | Inverter Brand: | China |
II | EXTRUDER |
|
10 | Screw diameter: | 45MM |
11 | Screw ratio (L/D): | 28:1 |
12 | Screw and Barrel Material: | 38CrMoAL |
13 | Screw treatment: | BY NITRIDATION |
14 | Heaters: | STEEL (FOUR ZONE) |
15 | die head: | Common die |
16 | Die head for: | 35/70MM |
17 | Die head material: | 45 steel,mould cavity and mould centre chromeplate |
18 | Air Ring: | one layer |
19 | Screen changer type: | by hand |
20 | Reduction Gearbox: | HIGH-STRENGTH HARD TOOTH SURFACE |
21 | Motor power : | 11KW |
III | TAKE-UP TOWER |
|
22 | Type of Tower: | RISE AND DOWN FREELY |
23 | Cylinder Of Roller Width: | 420MM |
24 | Effective Roller Width: | 350MM |
25 | Gussets Boards (Include it) | Ok |
26 | Embossing Roller (Include it) | Ok |
27 | Bubble Guide/Stabilizing Ring: | by motor |
28 | Take-Up Control: | Inverter control |
29 | Digital corona treatment | Including |

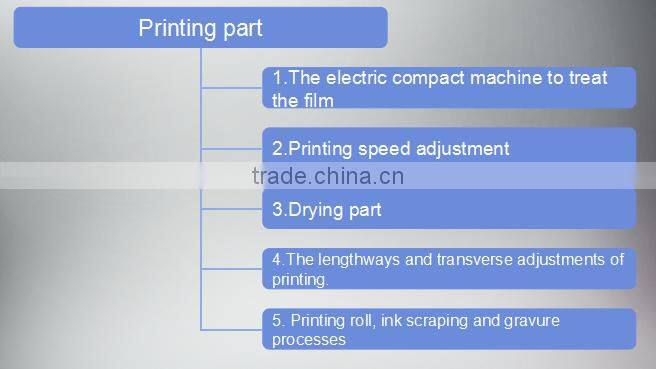

IV | PRINTING PART |
|
30 | Print width | 100-420mm |
31 | Print type | Gravure |
32 | Ink type | Gravure plastic ink with solvent |
33 | Print speed | 0-50m/min |
34 | Print cylinder size | Length 600mm, diameter :75-180mm |
35 | Ink dry type | By electric |
36 | Print color | 1-2 color (max more 6 color for both sides) |
37 | Print face | Only one side/both sides |
V | WINDING UNIT |
|
38 | Winder: | one rewinder |
39 | Winder diameter: | 300MM |
40 | Effective Width: | 420MM |
41 | Banana Roller: | 1 |
42 | Winder Controlling: | BY FRICTION |
Film blowing and printing machine, plastic shopping bag making machine line
12 months' quality guarantee, and we supply top quality and service. Engineers available to serve for customers overseas.
CONSULTING SERVICE
Different customers have different needs, you could tell us your special requirements, our engineer will design the machine as your require.
INSTALLATION SERVICE
Installation service are available with all new machine purchases. We will provide the technical konwledges to help you installing the machine, so you can put the machine into use as soon as possible.
CLIENT TRAINING SERVICE
We can train your staffs to use your equipment. First, we will trian your staffs use the equipment properly. Second, we will tell them how to use the raw materials to produce the film. Different materials and different proportions will lead to different films. After our training, you staff can produce any films you want.
AFTER-SALE SERVICE
We offer the persistent mantainence service and permenate technical assistance. It's benefit to the prevention of the problems and solveing questions as soon as possibe.
