Small-scale Plastic Bag Shopping Bag Making Machine

Name: Small-scale Plastic Bag Shopping Bag Making Machine
Brand: RUNHUA
SKU: 141793526
Availability: InStock

US$ 2,000 - 20,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

RUNHUA

Model Number:

JSY-350

Laiwu Runhua Plastic Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name RUNHUA

Model Number JSY-350

After-sales Service Provided Engineers available to service machinery overseas

small-scale plastic bag shopping bag making machine

Technical data

small-scale plastic bag shopping bag making machine

Film blowing and printing machine

1	Material to be processed:	HDPE,LDPE ,recycle material and degradable material.
2	Film width:	100-350 mm
3	Film thickness:	HDPE:0.015-0.03MM,LDPE:0.015-0.1MM
4	Extrusion Output:	10-45KG/H
5	Screw speed:	10-100R/MIN
6	Total Power:	30KW
7	Machine weight:	2500KG
8	Overall Dimensions:	600020002500MM
9	Inverter Brand:	China
II	EXTRUDER
10	Screw diameter:	45MM
11	Screw ratio (L/D):	28:1
12	Screw and Barrel Material:	38CrMoAL
13	Screw treatment:	BY NITRIDATION
14	Heaters:	STEEL (FOUR ZONE)
15	die head:	Common die
16	Die head for:	35/70MM
17	Die head material:	45 steel,mould cavity and mould centre chromeplate
18	Air Ring:	one layer
19	Screen changer type:	by hand
20	Reduction Gearbox:	HIGH-STRENGTH HARD TOOTH SURFACE
21	Motor power :	11KW
III	TAKE-UP TOWER
22	Type of Tower:	RISE AND DOWN FREELY
23	Cylinder Of Roller Width:	420MM
24	Effective Roller Width:	350MM
25	Gussets Boards (Include it)	Ok
26	Embossing Roller (Include it)	Ok
27	Bubble Guide/Stabilizing Ring:	by motor
28	Take-Up Control:	Inverter control
29	Digital corona treatment	Including
IV	PRINTING PART
30	Print width	100-420mm
31	Print type	Gravure
32	Ink type	Gravure plastic ink with solvent
33	Print speed	0-50m/min
34	Print cylinder size	Length 600mm, diameter :75-180mm
35	Ink dry type	By electric
36	Print color	1-2 color (max more 6 color for both sides)
37	Print face	Only one side/both sides
V	WINDING UNIT
38	Winder:	one rewinder
39	Winder diameter:	300MM
40	Effective Width:	420MM
41	Banana Roller:	1
42	Winder Controlling:	BY FRICTION

Bag making machine

1	Length of bag	50-1999mm
2	Max width of bag	550mm
3	Thickness of film	0.01-0.2mm
4	Speed of line	10-40m/min(single layer)
5	Power	3.5kw
6	Main motor	Controlled by inverter
7	Weight	1300kg
8	Size	260014201700
II	UNWIND
9	Unwind line	one line
10	Driver Motor	DC
III	SEALING AND CUTTING
11	Sealing line	one line
12	Take up motor	Setup motor
13	Knife	One
14	Computer and operate board ,driver	Each one set

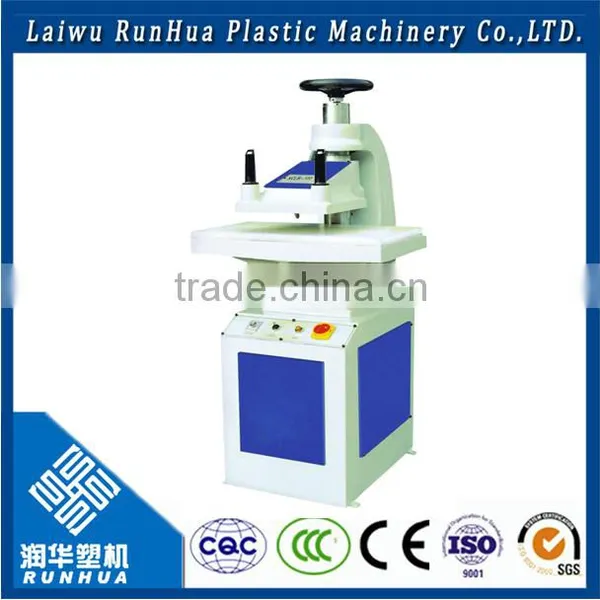

Punching machine

1	Distance between worktable and clamp	150 - 215mm
2	Working pressure	10MT
3	Total power	1.1kW
4	Travel of clamp	28mm
5	Weight of machine	480kg
6	Overall dimensions	900 x 600 x 1,230mm
