PP PE Netted Wire Drawing Line

PP PE Netted Wire Drawing Line photo-1

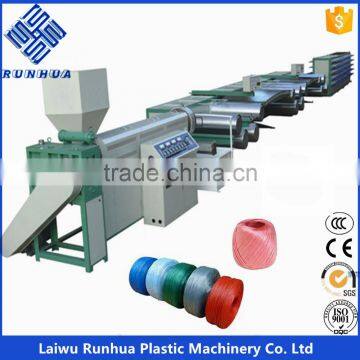

PP PE Netted Wire Drawing Line photo-2

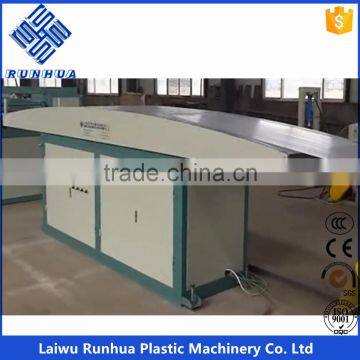

PP PE Netted Wire Drawing Line photo-3

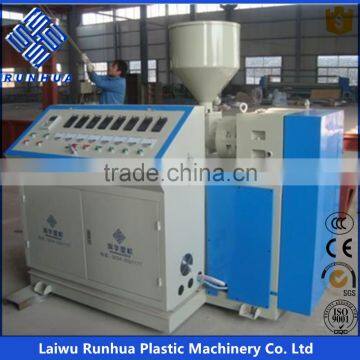

PP PE Netted Wire Drawing Line photo-4
PP PE Netted Wire Drawing Line photo-5
PP PE Netted Wire Drawing Line photo-6
US$ 1,000 - 20,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Other, Wire, round wire, flat wire, tearing film
Plastic Processed:
PP
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Other, Wire, round wire, flat wire, tearing film
Plastic Processed PP
Screw Design Single-screw
Automatic Grade automatic
Place of Origin Shandong, China
Brand Name RUNHUA
Model Number PLW700
Voltage 380V/50HZ(can adjust)
Power(W) 70KW
Dimension(L*W*H) 26500X3200X2600mm
Weight 7000kg
Certification CE, ISO9001, FTA, CO, SGS,
After-sales Service Provided Engineers available to service machinery overseas

PP PE netted wire drawing line

Product Overviews

PP PE netted wire drawing line

The machine unit can take PPPE as the raw materials to make round wire, flat wire, netted wire ( tearing film). You can put reclaimed material into the production, this is really save cost and environmental production, don't worry, this won't effect the quailty of the wire. These wires have a wide range of application. They can be woven into bags and rolled into ropes. Bags and ropes can be usded into every feild.

PP PE netted wire drawing linePP PE netted wire drawing line

Main parameters

PP PE netted wire drawing line



Max. out put

50Kg/h

Extruder screw diameter

65mm

Screw L/D ratio

30/1

screw speed

20-100r/min

Die lip width

700mm

Max. line velocity

70m/min

Draft ratio

4-9

Winding spindle number

20

Total power

100KW

Overall dimensions

32×4×2.5 (m)

Total weight

23~25 kg



 Note:This is a breif introdunction of one machine, all the parameters can be changed as customers' request. If you want to know more, please don't hesitate to contact us. Best regards.



Details show

PP PE netted wire drawing line

PP PE netted wire drawing line
Finished Products

 Our machine can be used to produce plastic round wire, flat wire, tearing film, this wire can be processed into fish net, plastic rope etc.PP PE netted wire drawing line

PP PE netted wire drawing line

Related mechinery

Plastic rope making machine



PP PE netted wire drawing line

Ball making machine



PP PE netted wire drawing line

Plastic wire inverted axis machine.



PP PE netted wire drawing line



Warranty

12 months' quality guarantee, and we supply top quality and service.Engineers available to serve for customers overseas.



Consulting Services

Different customers have different needs, you could tell us your special requirements, our engineer will design the machine as your require.



Installation Services

Installation service are available with all machine purchases. We will provide the technical konwledges to help you installing the machine, so you can put the machine into use as soon as possible.



Client training Services

We can train your staffs to use your equipment. First, we will trian your staffs use the equipment properly. Second, we will tell them how to use the raw materials to produce the wire.



After Sale Service

We offer the persistent mantainence service and permenate technical assistance. It's benefit to the prevention of the problems and solveing questions as soon as possibe.

Company Information



laiwu Runhua plastic Machinery Co., Ltd  is a high technology enterprise which collects departments of Reserach& Development, Production, Sales and Service. We are specialized in plastic extruder, drawing machine, film blowing machine. Our engineers and experts have more than 20 years experiences.

Main items: Agriculture film machine, Geomembrane film machine, Packing film machine, Plastic wire drawing machine.

Our machine can prodcuce various plastic wires,plastic yarns and plastic films. The max. width can reach 30 meters.  Our machine could adopts 1-7 extruders ,can produce monolayer film and multi-layer film,can meet various needs.

Plastic wires: round wires, flat wires, tearing films

Plastic films: POF films, high barrier films, liner bag films , strech film, mulch film, greenhouse film, geomembrane and other films

Our motto: Quality comes first, Customer is the upermost

Address: 123#, Longtan East Street, High-tech Zone, Laiwu city, Shandong Province
