Net Yarn Production Line
- Qingdao
- T/T Credit Card
You May Like
Product Details
| Condition | New | Application | Wire | |
| Plastic Processed | Other, plastic rope | Screw Design | Single-screw | |
| Automatic Grade | Semi-auto | Place of Origin | Shandong, China | |
| Brand Name | RUBHUA | Model Number | LS60/180 | |
| Voltage | 380V, 3-PHRASE, 50HZ | Power(W) | 20KW | |
| Dimension(L*W*H) | 26500X3200X2600 | Weight | about 5000KG | |
| Certification | CE, ISO9001, CO, CIQ, FTA | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

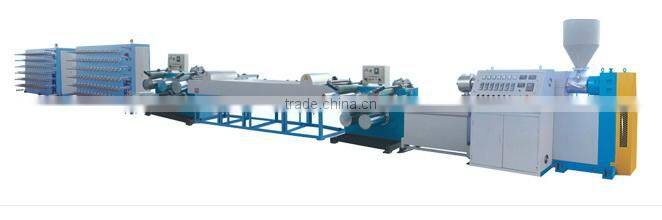

net yarn production line
Parameters for net yarn production line
| Wire drawing root number: PE for 180, PP for 60 (if no special request, factory setted With 180 PE mould ) | Product specification: round wire diameter 0.15-0.25mm winder No.: 96(practical use 90, for change and reserve 6) |

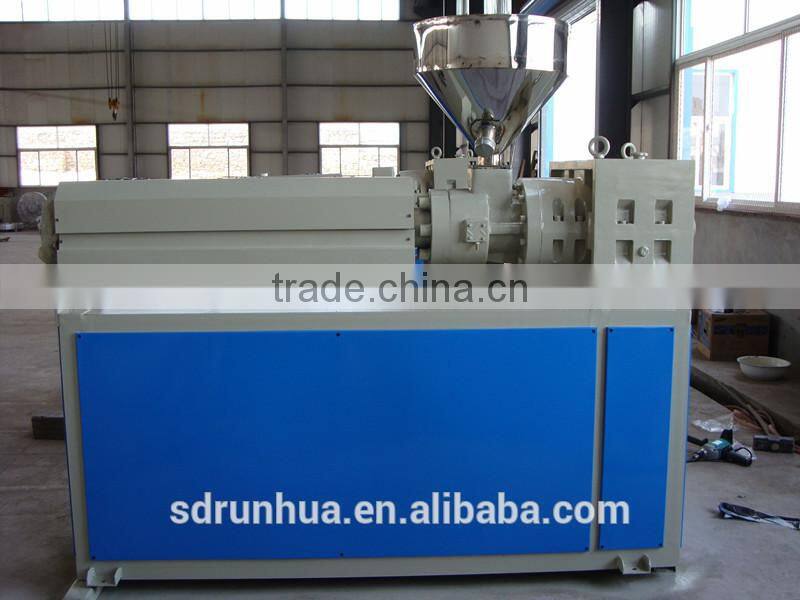

1*EXTRUDER:
TYPE | SJ-65/30 |
SCREW DIAMETRE | 65mm |
L/D RATIO | 30:1 |
2*DIE
Die type | Right-angle dise-type |
Ventage aperture count PP60 | PE180 |
Ventage aperture | PP3.5mm PE1.0mm |
Heating power | 2.8KW |

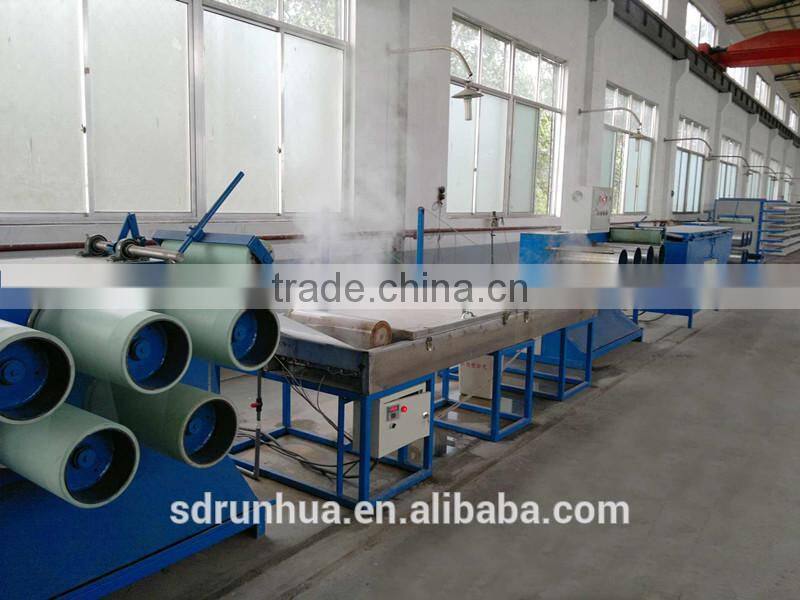

3*COOLING WATER BOX:
Water temperature control way | Cooling circulation |
Overall dimension of the box | 1264*644*545mm |

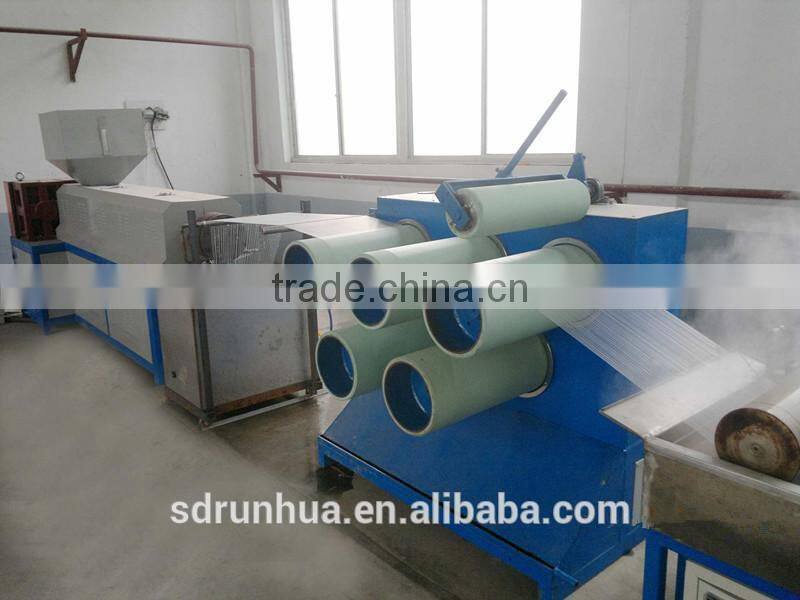

4*FIRST HAUL-OFF MACHINE
Haul-off speed | 5-20m/min |
Haul-off roll specification(diameter *length) | 350*500 |
Haul-off roll No. | 5 |
Driving motor | 5.5KW |
5*HEATER DEVICE
Heater way | PP circulating hot air PE boiling water heating |
Heater power | Hot air circulation type 0.6*36=21.6KW Water heating type 2.0*21=24.0KW |
Circulating hot air | Use air blower power is 4.0KW Air flow 2700m3/h |

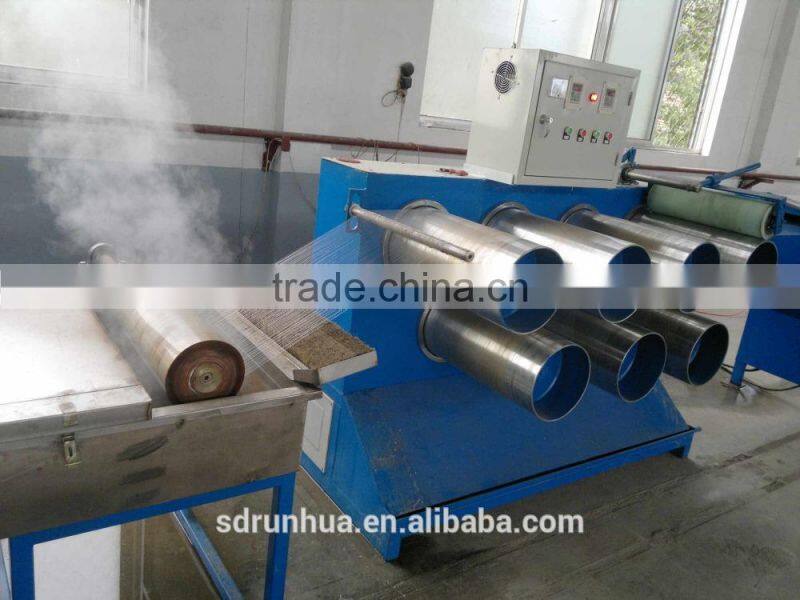

6*SECOND HAUL-OFF MACHINE
Haul-off speed | 50-150m/min |
Haul-off roll specification(diameter *length) | 350*500mm |
Haul-off roll No. | 5 |
Driving motor | 11.0KW |

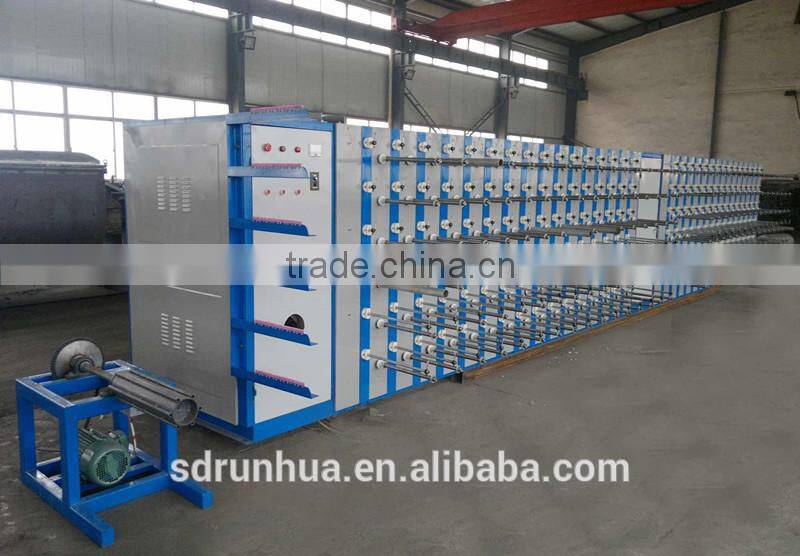

7*WIND-UP MACHINE
Wind-up No. | 96(in fact use 90,change and reserve 6) |
Roll core specification | 60*600mm |
Driving motor type | A75624-10 moment, 10kgcm |
Row silk form ping-pong |
|
Roll silk arrangement shape control | Made a type control |
Winding linear velocity | 50-150(at least)m/min |

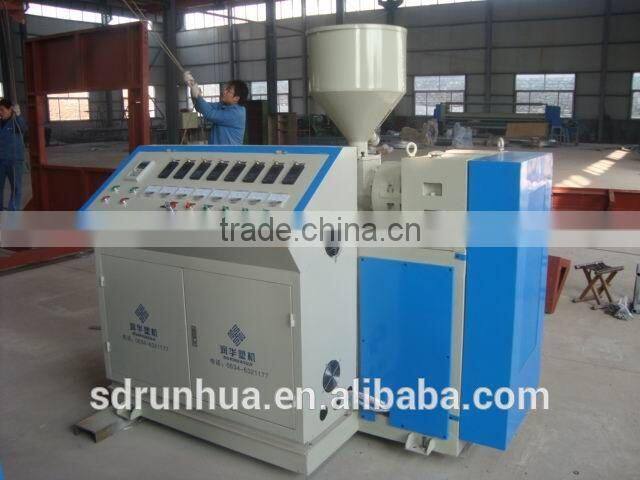

1. EXTRUDERS | |
![]() | ![]() |
2. WATER COOLING AND FIRST HAULING
| 3. HEATER |
4. DETAILS
| 5. REWINDER |
6. ROPE MAKING MACHINE

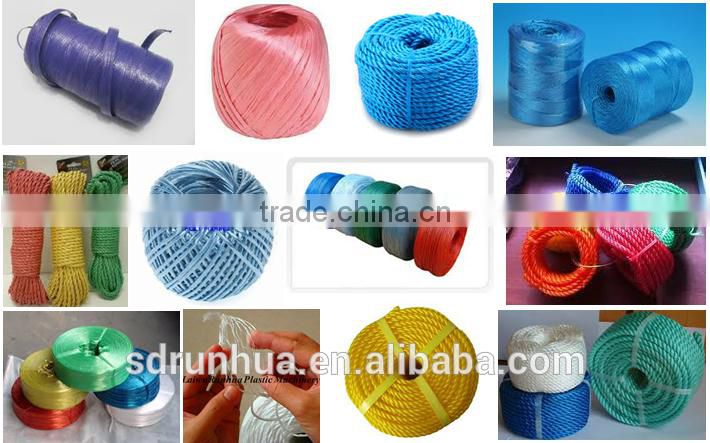

| 7. ROPE SAMPLES |
Business nature: R&D manufacturer. | |
Trade terms: EXW, FOB, CIF, CFR. | |
Payment terms: T/T, L/C, One-touch via Alibaba, 30% deposit in advance.
| |

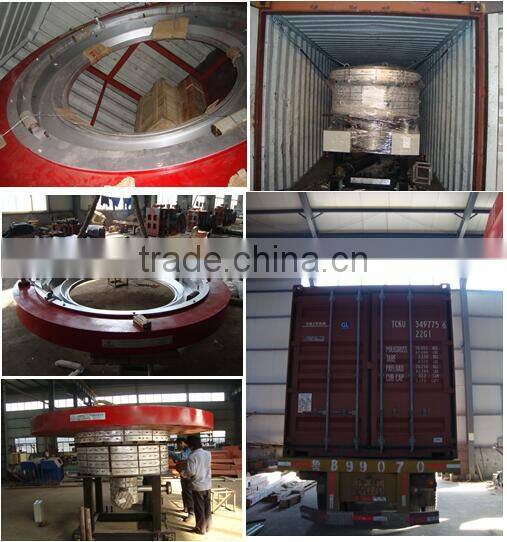

Packaging: standard stretch film packing.
| |
Warranty: 12 months after installation.
| |
Shipping: ocean container transportation.
| |
Delivery detail: within 90 days after advanced deposit received. |
Agricultural film blowing machine made by Runhua Plastic Machinery Company, already successfully widely used by domestic large-scale manufacturer, such as Baishan Xifeng Plastic Limited Liability Company, Tianjin plastic Science & Technology Group Co.,Ltd, Beijing Huadun Snow Plastic Group etc. Therefore, many times win the bidding of large-scale bidding projects, such as CNPC, SINOPEC, Agricultural Bureau of middle west each provinces etc. Due to the improvement of longitudinal and transverse strength, agricultural mulch film made by enjoying good adaptation to severe weather.
Main products of Runhua: Agricultural film machine, Packaging film machine, Geo-membrane film machine, Plastic yarn extrusion machine, Plastic rope making machine, Plastic pipe extrusion machine.
12 months' quality guarantee, and we supply top quality and service. Engineers available to serve for customers overseas.
CONSULTING SERVICE
Different customers have different needs, you could tell us your special requirements, our engineer will design the machine as your require.
INSTALLATION SERVICE
Installation service are available with all new machine purchases. We will provide the technical konwledges to help you installing the machine, so you can put the machine into use as soon as possible.
CLIENT TRAINING SERVICE
We can train your staffs to use your equipment. First, we will trian your staffs use the equipment properly. Second, we will tell them how to use the raw materials to produce the film. Different materials and different proportions will lead to different films. After our training, you staff can produce any films you want.
AFTER-SALE SERVICE
We offer the persistent mantainence service and permenate technical assistance. It's benefit to the prevention of the problems and solveing questions as soon as possibe.
