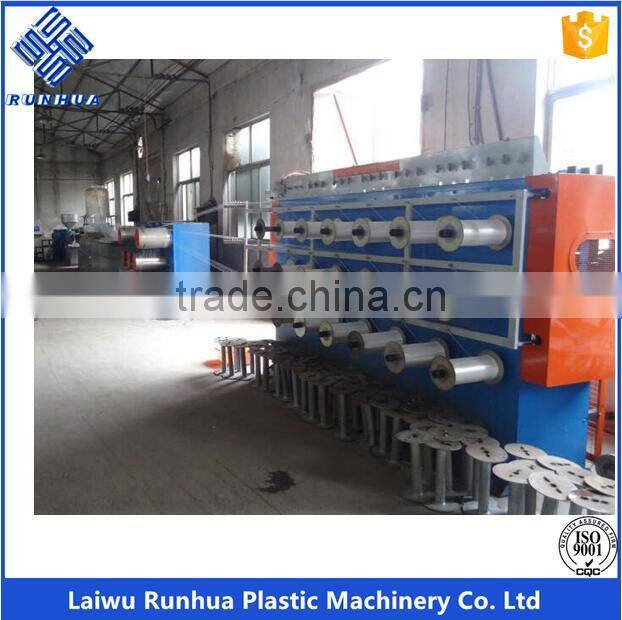

PE flat yarn production line
1. The machine, using material of polypropylene and high density polyethylene, through heating, extruding and drawing, makes tape that is then winded for the weaving of the circular loom.
Having been improved so many times, the machine can use 100% recycled PP and PE granules or powder to produce yarn.
2. The screw and cylinder of extruder are made of 38CrMoAlA alloy steel; the hardness is over HV950 after nitrogenation treatment.
3. Helical gear reducer made of 20CrMnTi alloy steel is applied to the extruder.
4. The extruder adopts aluminum cast heater, which is endurable.
Model | PLW700(FLAT YARN) | PL700(MESH NETS) |
Extruder screw diameter | 65 | 65 |
Extruder screw length-diameter ratio | 30 | 30 |
Driving power | 18.5KW | 18.5KW |
Screw speed | 10-100r/min | 20-100r/min |
Changing sieve mode | Binocular long-term filter | |
Die lip width | 700 | 700 |
Cooling water tank | flooded | |
Net open way | Needle roller | |
Traction mode | roll type, pneumatic clamping | |
Dryer heating | arc plate, electrical heating | |
Stretcher | seven roller, large angle | |
Extruder driving power | 11KW | 11KW |
Extension ratio | 4-10 | 4-9 |
Winding NO. | 20 | 20 |
Dimension | 26500X3200X2600 | 32000×4000×2500 |
Round wire
Wire drawing root number: PE for 180, PP for 60(if no special request, factory setted With 180 PE mould )
Product specification: round wire diameter 0.15-0.25mm
Wind-up No: 96(practical use 90, for change and reserve 6)
1*EXTRUDER
TYPE | SJ-65/30 |
SCREW DIAMETRE | 65mm |
L/D RATIO | 30:1 |
2*DIE
Die type | Right-angle dise-type |
SPINNERET HOLE NO. | PP60; PE180 |
SPINNERET DIAMETER | PP 3.5mm; PE 1.0mm |
Heating power | 2.8KW |
3*COOLING WATER BOX
Water temperature control way | Cooling circulation |
Overall dimension of the box | 1264*644*545mm |
4*FIRST HAULING-OFF MACHINE
Hauling speed | 5-20m/min |
Traction roller spec (diameter *length) | 350*500 |
Hauling roller No. | 5 |
Driving motor | 5.5KW |
5*HEATER DEVICE
Heater way | PP: circulating hot air ; PE: boiling water heating |
Heater power | Hot air circulation type 0.6*36=21.6KW Water heating type 2.0*21=24.0KW |
Circulating hot air | Use air blower power: 4.0KW Air volume 2700m3/h |
6*SECOND HAULING-OFF MACHINE
Hauling-off speed | 50-150m/min |
Hauling-off roller spec (diameter *length) | 350×500mm |
Hauling-off roller No. | 5 |
Driving motor | 11.0KW |
7*WINDING MACHINE
Wind-up No. | 96(in fact use 90, change and reserve 6) |
Roll core specification | 60×600mm |
Driving motor type | A75624-10 torque, 10kgcm |
Roll silk arrangement shape control | Stand type control/ Row silk form ping-pong |
Winding linear speed | Over 50-150m/min |
Consist parts for PE flat yarn production line
1. THE FIRST HAUL PART
| 2. THE SECOND HAUL PART
|
3. THE COOLING PART | 4. THE REWINDING PART
|

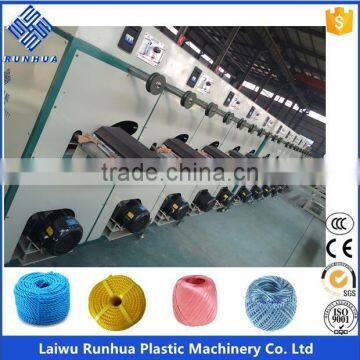

5. PLASTIC ROPE MAKING MACHINE
| |
| |
Business nature: R&D manufacturer. |
|
Trade terms: EXW, FOB, CIF, CFR. | |
Payment terms: T/T, L/C, One-touch via Alibaba, 30% deposit in advance.
| |
Packaging: standard stretch film packing.
| |
Warranty: 12 months after installation.
| |
Shipping: ocean container transportation.
| |
Delivery detail: within 90 days after advanced deposit received. |
Agricultural film blowing machine made by Runhua Plastic Machinery Company, already successfully widely used by domestic large-scale manufacturer, such as Baishan Xifeng Plastic Limited Liability Company, Tianjin plastic Science & Technology Group Co.,Ltd, Beijing Huadun Snow Plastic Group etc. Therefore, many times win the bidding of large-scale bidding projects, such as CNPC, SINOPEC, Agricultural Bureau of middle west each provinces etc. Due to the improvement of longitudinal and transverse strength, agricultural mulch film made by enjoying good adaptation to severe weather.
Main products of Runhua: Agricultural film machine, Packaging film machine, Geo-membrane film machine, Plastic yarn extrusion machine, Plastic rope making machine, Plastic pipe extrusion machine.
12 months' quality guarantee, and we supply top quality and service. Engineers available to serve for customers overseas.
CONSULTING SERVICE
Different customers have different needs, you could tell us your special requirements, our engineer will design the machine as your require.
INSTALLATION SERVICE
Installation service are available with all new machine purchases. We will provide the technical konwledges to help you installing the machine, so you can put the machine into use as soon as possible.
CLIENT TRAINING SERVICE
We can train your staffs to use your equipment. First, we will trian your staffs use the equipment properly. Second, we will tell them how to use the raw materials to produce the film. Different materials and different proportions will lead to different films. After our training, you staff can produce any films you want.
AFTER-SALE SERVICE
We offer the persistent mantainence service and permenate technical assistance. It's benefit to the prevention of the problems and solveing questions as soon as possibe.
