three phase rectifier online ups with output special power transformer

three phase rectifier online ups with output special power transformer

Specifications

1) Low loss 2) Low noise 3) High efficiency 4) Rectifier transformer

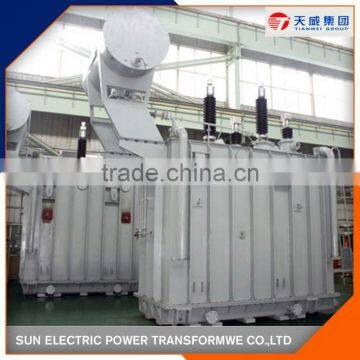

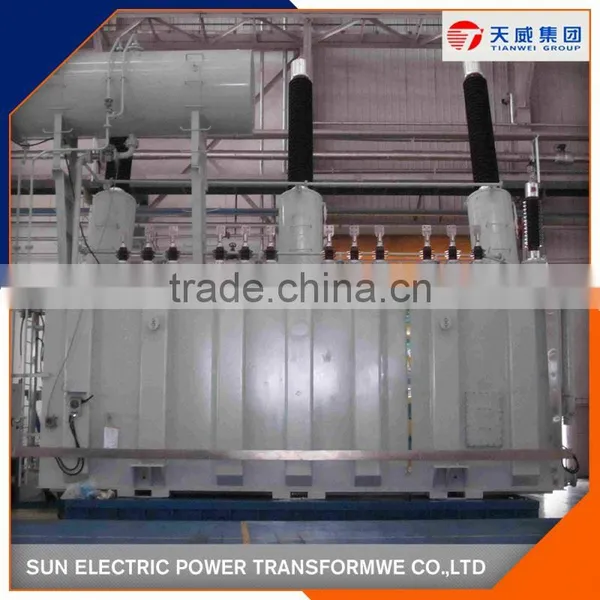

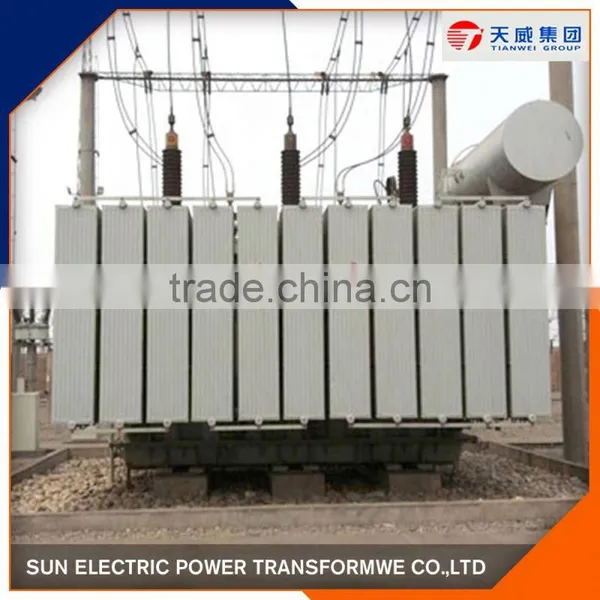

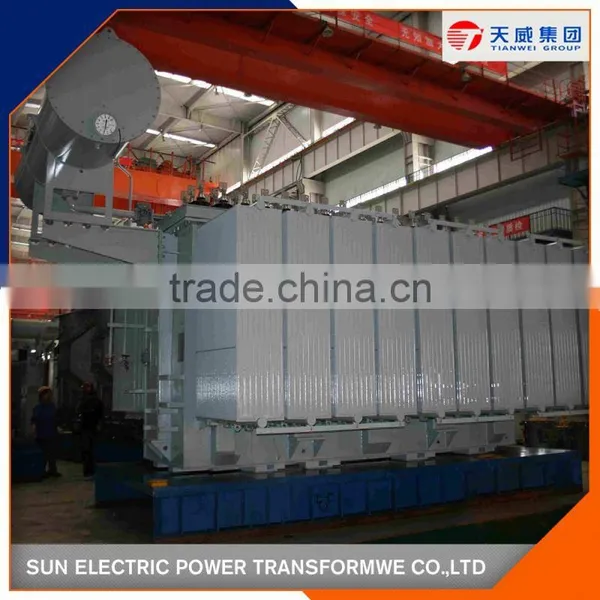

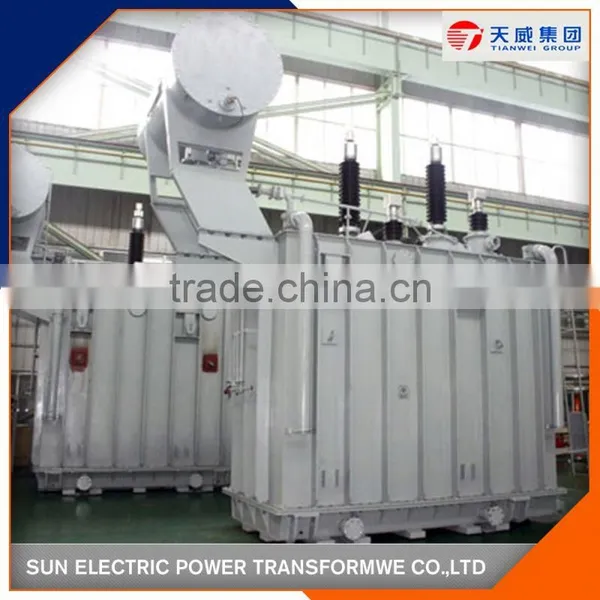

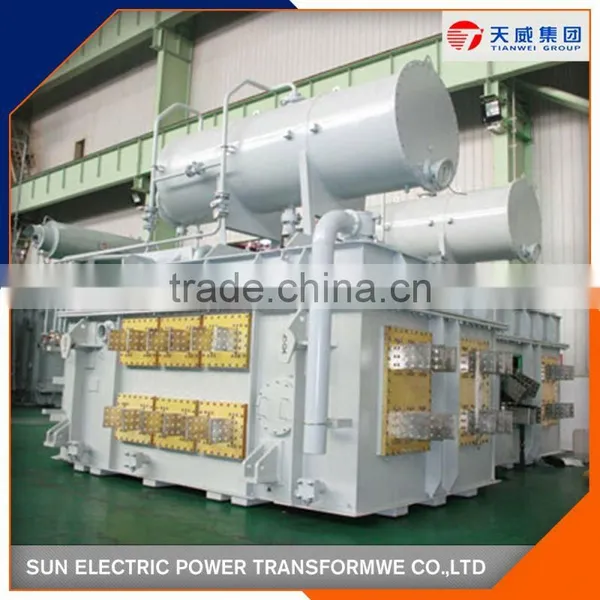

10kV Oil-immersed Rectifier Transformer Features:

1) Low loss

2) Low noise

3) High efficiency

4) Low partial discharge

5) Strong mechanical strength and short-circuit withstand ability .

6) Operation reliability

7) Easy maintenance

8) Pretty outline and compact structure

9) 100% guaranteed no leakage

Brief specification

1) Voltage class: 6~110 KV

2) Capacity : 630 KVA to 120,000 KVA

3) Short-circuit impedance : 4.5~21%

Losses: No-load losses is fully comply with IEC standard requirements Application:

1) Aluminum smelting

2) Magnesium smelting

3) Copper smelting

4) Zinc smelting

5) The largest installations are those for aluminum electrolysis with several transformer/rectifier units in parallel operation to achieve the required DC current, in all cases the rectifier can be with diodes or thyristors

1 .Customized design depends on your requirement. OEM is welcomed.

2 .Reply your inquiry in half of hour,24 hours on line.

3.Special discount and protection of sales area provided to our distributor.

4.Warranty:1year.1.Do you offer the samples of transformer?

Yes,we can provide sample with charge.

2. What is Amorphous Alloy?

An amorphous metal (also known as metallic glass or glassy metal) is a solid metallic material, usually an alloy, with a disordered atomic-scale structure. Most metals are crystalline in their solid state, which means they have a highly ordered arrangement of atoms.Amorphous metals are non-crystalline, and have a glass-like structure. But unlike common glasses, such as window glass, which are typically electrical insulators, amorphous metals have good electrical conductivity.

3.Advantages of Amorohous alloy

The amorphous is more superior to traditional silicon steel sheet in magnetic permeability, excitation current and iron losses, especially in iron losses, only 1/3 to 1/5 when compared with silicon steel sheet.

1. Small space occupy and easy installation. 2. Low loss 3. Better efficiency in power using 4. Long service time 5. Wide application range.
4.Do you take special orders ?

 Yes , We accept customized products.
