High quality 380kva phase-shifting rectifier transformer

High quality 380kva phase-shifting rectifier transformer

Features of High quality 380kva phase-shifting rectifier transformer

Simple Structure, Easy Connection

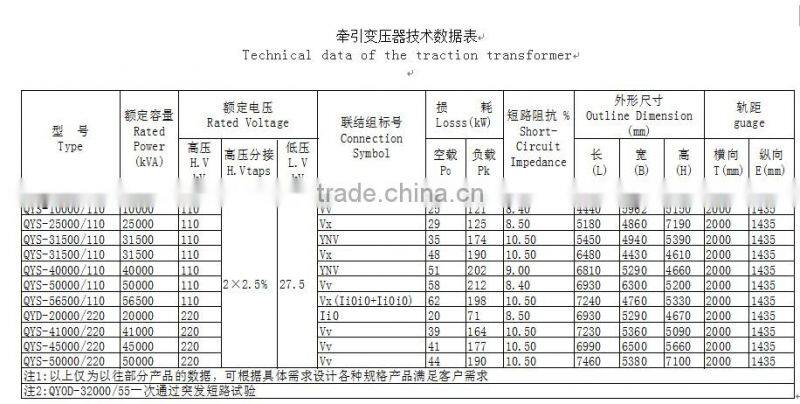

The new three-phase Vv railway traction transformer consists of two single-phase two-circuit transformers with independent magnetic circuit in a tank. The primary winding of two single-phase transformers are connected in series, the middle point of two ends and series wiring is taken as the input end of three-phase source, and the front and back ends of secondary winding of the two single-phase transformers are drawn out for Vv0 or Vv6, easy to use.

Flexible Capacity, High Utilization Rate

The capacity of two single-phase transformers can be the same or different, and can effectively avoid the idle capacity of transformers. The transformer is the same as the single-phase transformer and the utilization rate can reach 100%.

Low No-load Loss

The single-phase transformer of new three-phase Vv railway traction transformer is core structure. It has low no-load loss and reduces more than 30% compared with the shell type structure.

Strong Short-circuit Resistance Ability

The three-phase Vv railway traction transformer has been developed by our company through mature short-circuit resistance technology. The corresponding measures are taken in the aspects of design and technology according to product features and the short-circuit resistance ability is promoted greatly.

High Overload Capacity

The overload capacity analysis software is developed according to the load curve provided by customers and relevant standards. It strictly complies with the relevant regulations, makes calculation and analysis based on the computing methods, meets customer demands, and owns a high degree of safety and high overload capacity.

 OUR SERVICE:

1 .Customized design depends on your requirement. OEM is welcomed.

2 .Reply your inquiry in half of hour,24 hours on line.

3.Special discount and protection of sales area provided to our distributor.

4.Warranty:1year.

FAQ:

1. What is Amorphous Alloy?

An amorphous metal (also known as metallic glass or glassy metal) is a solid metallic material, usually an alloy, with a disordered atomic-scale structure. Most metals are crystalline in their solid state, which means they have a highly ordered arrangement of atoms.Amorphous metals are non-crystalline, and have a glass-like structure. But unlike common glasses, such as window glass, which are typically electrical insulators, amorphous metals have good electrical conductivity.

2.Advantages of Amorohous alloy

The amorphous is more superior to traditional silicon steel sheet in magnetic permeability, excitation current and iron losses, especially in iron losses, only 1/3 to 1/5 when compared with silicon steel sheet.

1. Small space occupy and easy installation. 2. Low loss 3. Better efficiency in power using 4. Long service time 5. Wide application range.

3.Do you take special orders ?

 Yes , We accept customized products.

CONTACT:

Contact person: Ms.Kayla Wang

Tel:       +86-312-6775757

Fax:       +86-312-6775656

Whatsapp: +8615822478551

Skype: sales02(at)

 Click following " Send " for more detailed informaiton and price directly!
 Thank you!!  :)
