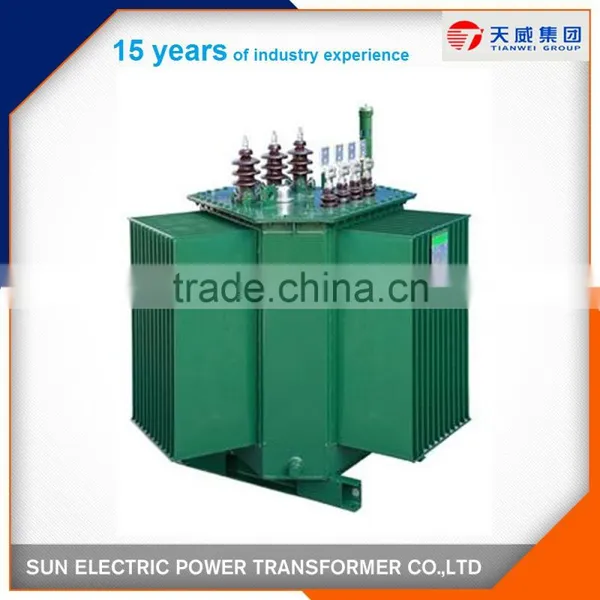

S9-M 400KVA 24KV/0.415KV Oil Immersed Three Phase Electrical Transformer

S9-M 400KVA 24KV/0.415KV oil immersed three phase electrical transformer

S9-M 400KVA 24KV/0.415KV oil immersed three phase electrical transformer advantage:

1.  Low loss, and significantly energy-saving.

2. The core laminations are made up from high-quality cold-rolled grain-oriented silicon steel sheets

3. Zigzag directed flow of oil are provided within the windings

4. The regulating winding is a separate winding which apart from the high voltage main winding

5. The windings of one phase are assembled into an integral phase block before placing into the core.

6. Core frames in the form of a flat plate are used for clamping the core.

7.Transformer tanks are fabricated with steel plates wide enough so that there are no weld joints on each surface.

8.Diaphragm membrane is provided within the conservator, preventing direct contact of oil with air, protecting the oil from aging

9.Reliably sealed, and fine machined for sealed surface.

10. Quality assurance rules are also observed for all insulating parts,and main components.

S9-M 400KVA 24KV/0.415KV oil immersed three phase electrical transformer Details:

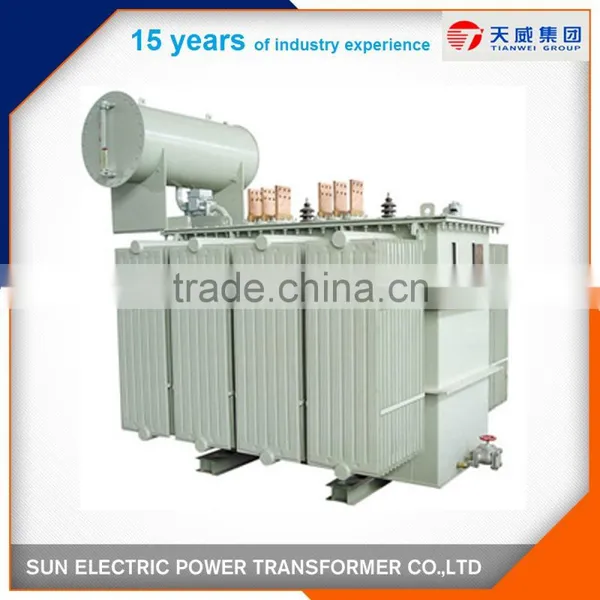

Related Transformer product in our company

Please click the following link for detailed information if there is any interest

 OUR SERVICE:

1. Pre sale service

     a.  make technical solution

     b.  send quotation, technical data sheet and drawing

     c.   make manufacturing plan, testing plan,and shipping plan

2. In sale service

    a. supervise the manufacturing schedule totally in accordance with the plan

    b, send photos to customer during every manufacturing process(hold point)

    c. inform the customer one week before testinng.

    d. book hotel and ticket for customer if they will come do FAT.

3. After sale service

    a. installation and commissioning

    b. training  the workers

    b. quick response within 12 hours any time

    d, provide 12 months gurantee period normally.
