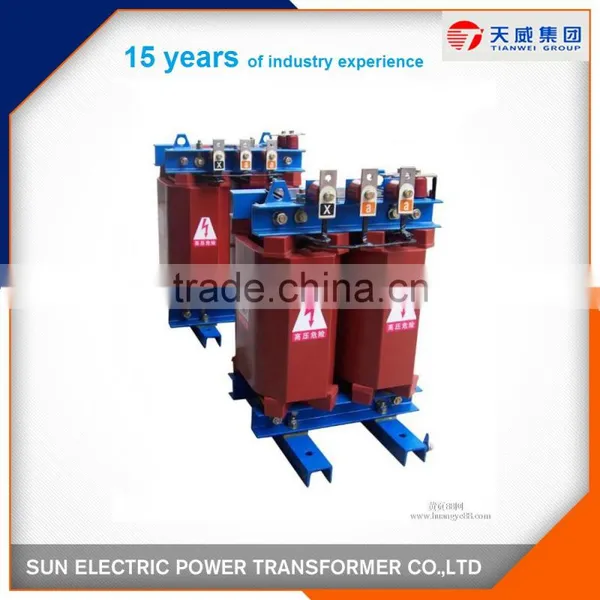

SCB10 11kv 315kva dry type transformer Cast resin power transformer
- 500 Set / Sets per Month
- Tianjin shanghai ningbo qingdao
- T/T Credit Card PayPal
Product Details
Place of Origin: | Hebei, China | Brand Name: | Tianwei | Model Number: | SCB |
Usage: | Power | Phase: | Three | Coil Structure: | Toroidal |
Coil Number: | Other, three |
Product Description
SCB10 11kv 315kva dry type transformer Cast resin power transformer
SCB10 11kv 315kva dry type transformer Cast resin power transformer Details
SCB10 11kv 315kva dry type transformer Cast resin power transformer
Information | Description |
Summary | The dry transformer has following insulation classes: class B , Class F, class H, class C, etc. their thermal-endurance temperature is respectively 130 ºC,150 ºC,180 ºC,and 220 ºC. As adopting new material and new technology of Depont, the model SG(B) dry type transformer has reached class H of thermal endurance , and some of its key location reached class C of thermal endurance |
Safety
| Model SG(B) new products are dry transformer with the highest safety in current market. All of tis insulating materials are of non-combustion supporting , self-extinguishing, nontoxic one. It shows advantages especially when used in those fields where high safety is required, humidity and temperature are high , and ventilation is poor, such as in power sites, underground railways, ships, chemical and metallurgical sites. Outer casing and blower fan cab be provided if required by users. |
Reliability
| The coil of model SG(B) is specially designed and made of special material with special technical process, which renders the product excellent moisture-proof, mildew-proof and salty fog-proof performances, much higher temperature endurance, and permanent chap-free ability. The Nomex-based insulating system can remains at the extraordinary excellent and mechanical performances and compressive strength, therefore its coil can keep a compact and tight structure after many years’ service and the transformer can withstand short-circuit voltage. |
Environmental protection | Model SG(B) product can be disassembled for recovery after life-end, thus meeting clients’ requirements one environmental protection. While those dry transformers made via epoxy cast can’t be disassembled , because the resin glass has cured into an integral one , and therefore is unfavorable for environmental protection. |
Strong overload capacity | Model SG(B) adopts new structure, novel material and up-to-date technology, featuring good heat-sinking capability, long thermal endurance, strong overload capability, it can run stably under 120% rated load for a long period. It can keep a long term running under full-load in IP23 environment without forced air ventilation necessary. |
Related Transformer product in our company
Please click the following link for detailed information if there is any interest
Workshop for Dry Type Power Transformer
Certificate for SCB10 11kv 315kva dry type transformer Cast resin power transformer
Contact person: Ms.Kayla Wang
Tel: +86-312-6775757
Fax: +86-312-6775656
Whatsapp: +8615822478551
Skype: sales02(at)
Click following " Send " for more detailed informaiton and price directly!
Thank you!! :)
