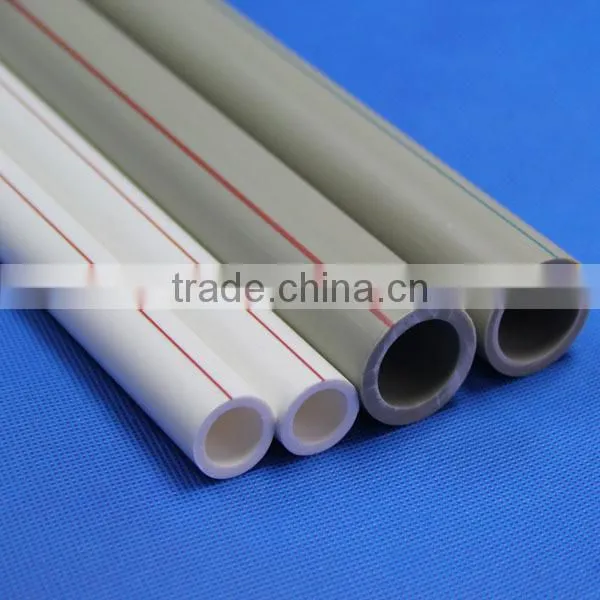

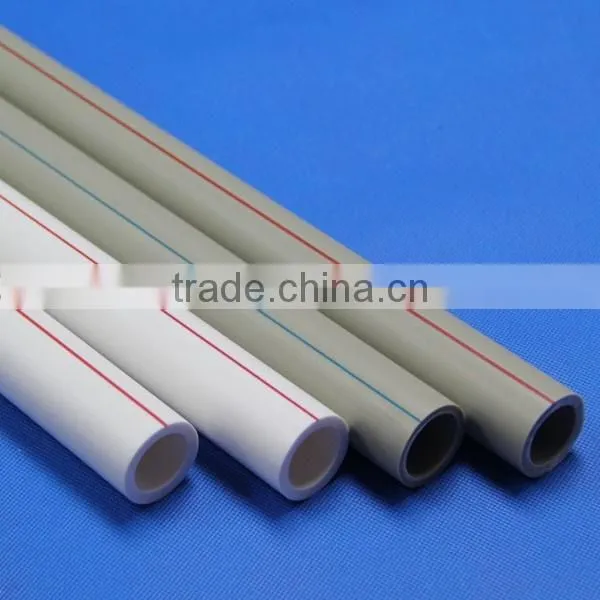

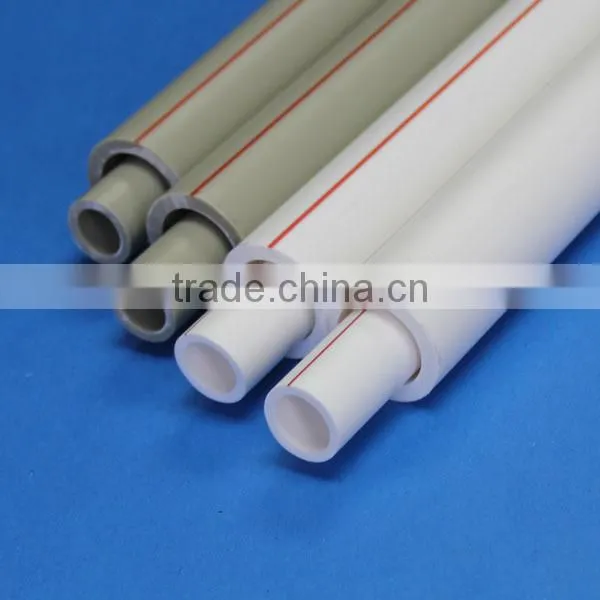

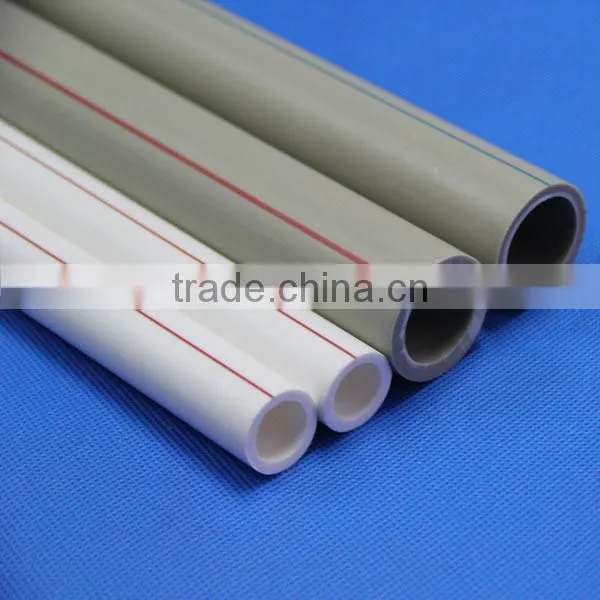

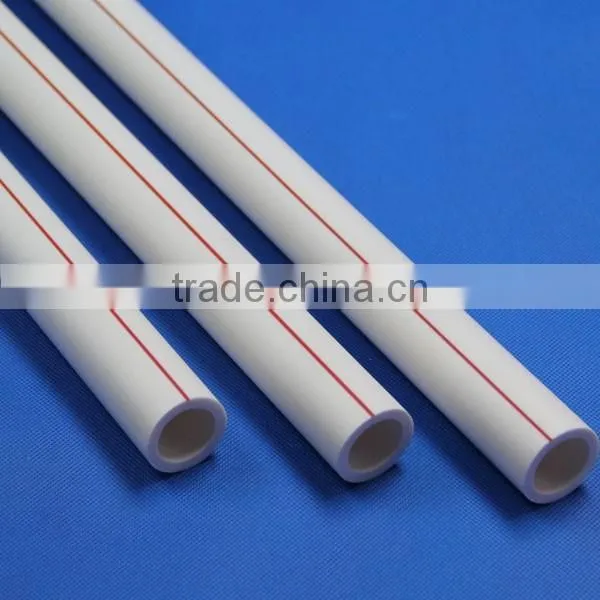

PPR Pipes Manufactured for Water Supply System

 Introduction

The quality of our PPR Pipes is entirely up to the standard of DIN8077/8078 of Germany. Its raw materials, a propylene random copolymer, are imported from Korea. Featured by excellent cleanness, cost effectiveness, applicability and advantage in safety, PPR Pipes is considered as the optimal pipe material for cold and hot water system, water purifying engineering, underground hating system for wooden floor, chemical pipe works and so on.

Dimension of  PPR Water Pipe

	PPR Water Pipe for Cold Water		PPR Water Pipe for Hot Water
Outer  Diameter (mm)	PN 1.25MPa	PN 1.6MPa	PN 2.0MPa	PN 2.5MPa
	Wall Thickness (mm)	Wall Thickness (mm)	Wall Thickness (mm)	Wall Thickness (mm)
20	2	2.3	2.8	3.4
25	2.3	2.8	3.5	4.2
32	2.9	3.6	4.4	5.4
40	3.7	4.5	5.5	6.7
50	4.6	5.6	6.9	8.3
63	5.8	7.1	8.6	10.5
75	6.8	8.4	10.3	12.5
90	8.2	10.1	12.3	15
110	10.0	12.3	15.1	18.3
160	14.6	17.9	21.9	26

 Packaging Details:  25pcs/pack, plastic film packing
 Delivery Detail: 20-25 days after receiving deposit

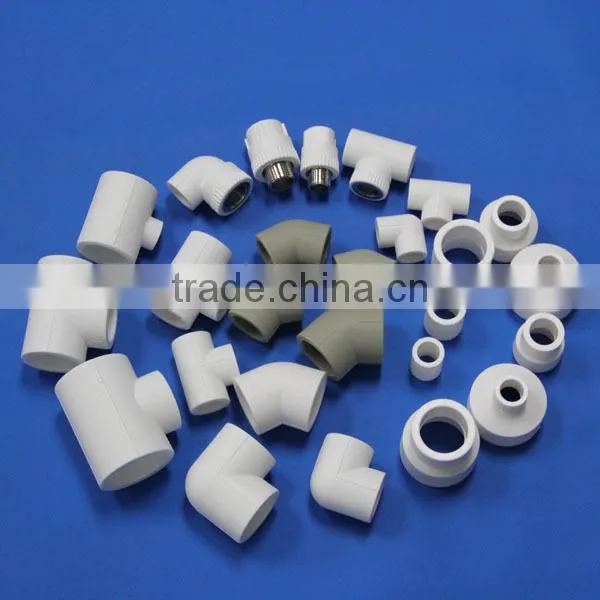

1) PP-R pipe and fitting system both for cold and hot water

2) High temperature, high pressure resistance and good resistance to chemical corrosion

3) Long service life, healthy , non-toxic , sanitary and recyclable

4) Hot welding connection adopted, making pipes and fittings into a whole, leakage effectively prevented

5) Low noise, reduced by 40% compared to common pipes

6) Light weight , easy to handle and transport

Application of PPR water pipe

 1) Cold and hot water supply systems for civil and industrial constructions, e.g.
     in residential buildings, hospitals, hotels, school and office buildings, ship building.
2) Drinking water systems and food industry pipe works
3) Central air conditioning system
4) Irrigating system for gardens and green houses
5) Public and sport facilities such as swimming pools and stadiums

6) For rainwater utilization systems

WHY CHOOSE US

• Autonomous production---we produce products with excellent quality and competitive price
• High Visibility--- We have customers from over 70 countries and religions all over the world, knowing the market well.
• After sales support---- After sales service will be highly satisfied

 G And N Fortune China Limited was founded in 1996, with 55 automated assembly lines, 8 national patents and best service with professional sales team.Our products have been exported to more than 70 countries and regions, And the annual ouyput value up to $30,000,000.
