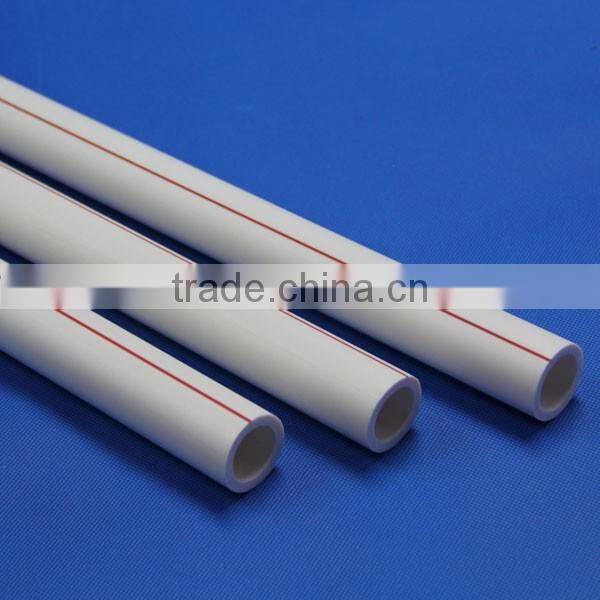

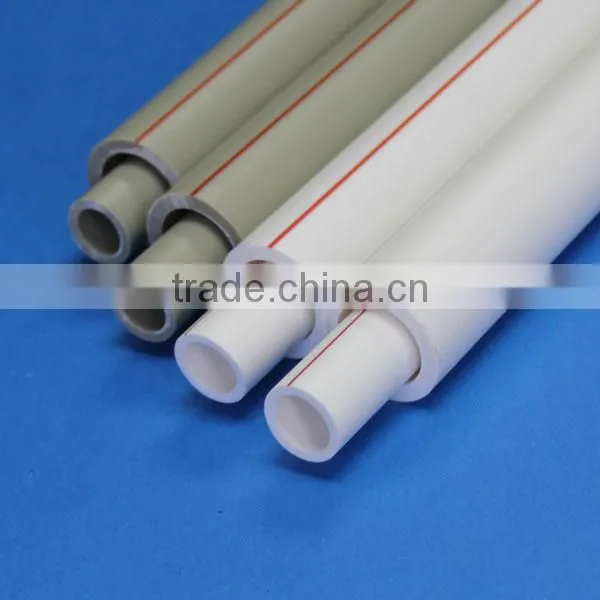

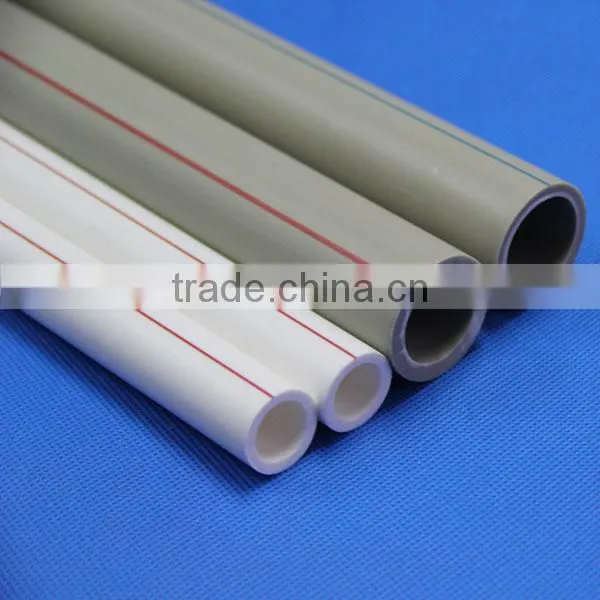

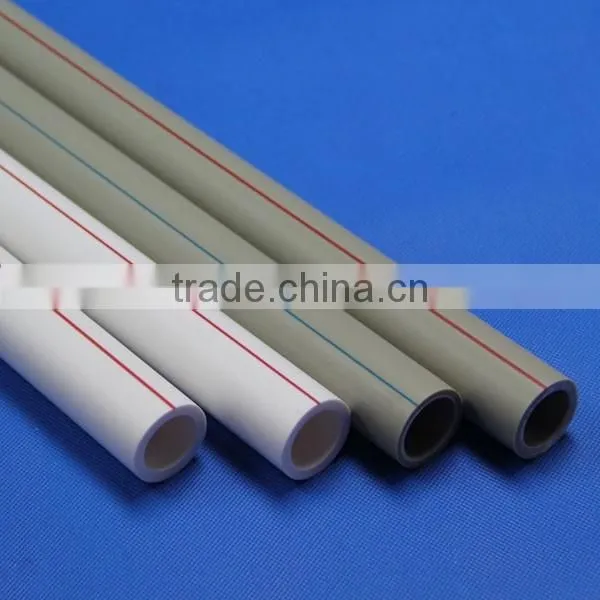

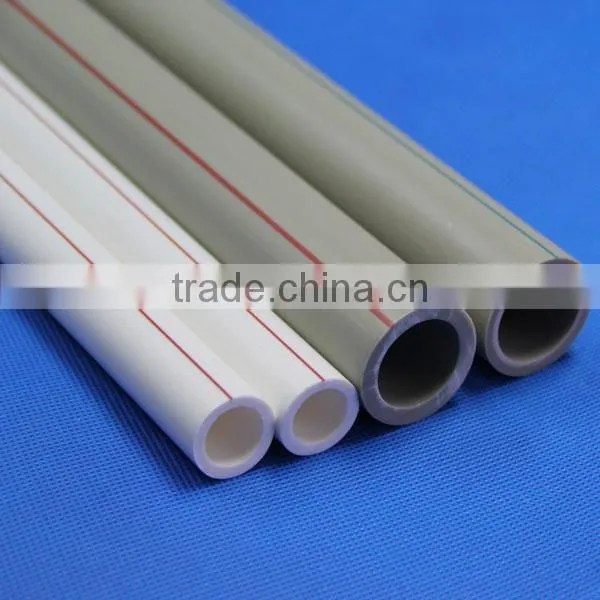

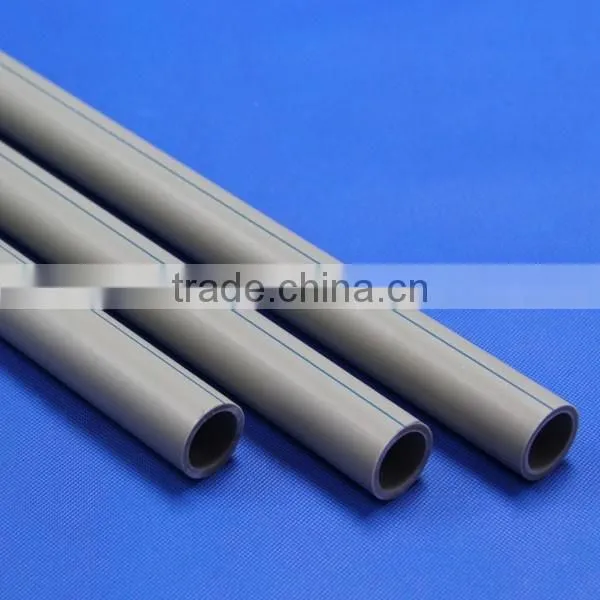

China factory ppr pipe fitting
Introduction of PPR Water Pipe
The quality of our PPR Pipes is entirely up to the standard of DIN8077/8078 of Germany. Its raw materials, a propylene random copolymer, are imported from Korea. Featured by excellent cleanness, cost effectiveness, applicability and advantage in safety, PPR Pipes is considered as the optimal pipe material for cold and hot water system, water purifying engineering, underground heating system for wooden floor, chemical pipe works and so on.
| PPR Pipe For Cold Water Series | PPR Pipe For Hot Water Series | |||
| | |||
| Outer Diameter (mm) | PN 1.25Mpa | PN 1.6Mpa | PN 2.0Mpa | PN 2.5Mpa |
| Wall Thickness(mm) | Wall Thickness(mm) | Wall Thickness(mm) | Wall Thickness(mm) | |
| 20 | 2.0 | 2.3 | 2.8 | 3.4 |
| 25 | 2.3 | 2.8 | 3.5 | 4.2 |
| 32 | 2.9 | 3.6 | 4.4 | 5.4 |
| 40 | 3.7 | 4.5 | 5.5 | 6.7 |
| 50 | 4.6 | 5.6 | 6.9 | 8.3 |
| 63 | 5.8 | 7.1 | 8.6 | 10.5 |
| 75 | 6.8 | 8.4 | 10.3 | 12.5 |
| 90 | 8.2 | 10.1 | 12.3 | 15 |
| 110 | 10 | 12.3 | 15.1 | 18.3 |
| 160 | 14.6 | 17.9 | 21.9 | 26 |
Advantages of PPR Water Pipe
1) PP-R pipe and fitting system both for cold and hot water
2) High temperature, high pressure resistance and good resistance to chemical corrosion
3) Long service life, healthy , non-toxic , sanitary and recyclable
4) Hot welding connection adopted, making pipes and fittings into a whole, leakage effectively prevented
5) Low noise, reduced by 40% compared to common pipes
6) Light weight , easy to handle and transport
PPR WATER SUPPLY PIPES
Related fitting
***Normal Packing
We use inner packing and outer carton for fitting, to be safety and easy tranfer.The packing also can do as request.
***Customized Packing
We provide customized packing for your business, label with logo and trade mark can be printed on carton.
***International transportation
We have our own trading department can find the suitable forwarder and reasonable space used,which will help to save more in transportation.
1. Machinery: More than 20 advanced Extrusion machine for production of PPR supply water Pipes, PVC electrical pipes, PVC-U drainage pipe line and 30 Injectionmachine with max 500T for pipe fittings.
2. Experience: Over 30 years of experience in Thermoplastic Extrusion and Injection, such as running temperature control and continuously formula optimization.
3. Quality Assurance: 24-hour Rigorous QC Team which is in line with ISO 9001 Certification.
4.Large-scaled Mould Workshop: with 4 senior mould designers and a team of experienced mould manufacturing technicians
5.International Projects: Supply building and irrigation Projects in Asia, Africa, Middle East, Russia and other countries.
Please send us your inquiry to get samples and some more details,thank you.
