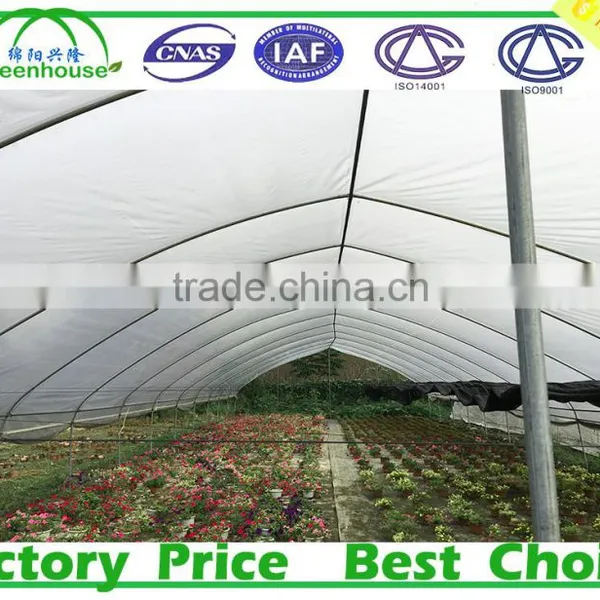

Low Cost Small Greenhouse
• Framework material
| Product Name | MYXL hot galvanized steel pipe for greehouse |
| Thickniss | 1.0mm-2.5mm |
| Size | 15*20mm~100*200mm |
| Length | less than12m |
| Zinc Coating | 50~120g/m2, could be thicker than 80g/m2 if you need |
| Application | Machine structure, water and gas transfer, building structure, agriculture equipment etc. |
Hot galvanized steel pipe. This kind of steel has good anticorrosion and antirust effects, which can help extend the service life of the greenhouse.
l The covering material--plastic inflatable film
The cover material for the plastic greenhouse is 3-Layer UV-Stabilized, Clear, Anti-dripping inflatable film.
The plastic film temperature is -15℃~60℃, it cannot be frost when the temperature lower than 45%.
l The covering material--the film technical data
Specification |
Index |
Product type |
UV Film |
Nominal Thickness |
150, 180, 200 micron |
Light Transmission (%) |
>88 % |
Temperature |
-15 ℃—60 ℃ |
Tensile Strength |
≥30MPa |
Tear Resistance |
≥580% |
l Specifiction for the greenhouse
Specification |
Index |
Cover |
inflatable film |
Style |
Dome |
Framework |
Hot dipped galvanized steel |
Wind load(KN/m2) |
0.60 |
Snow load(KN/m2) |
0.50 |
Constant load plus(Kg/m2) |
15 |
Impact strength |
850J/m |
Light Transmission |
>88% |
Heat Conductivity |
0.2W/(m.K) |
Range of temperature |
-15°C ~60°C |
We can provide the parameters above depends on the local climate.
Size |
Index |
Width(m) |
9.6m |
Length(m) |
40m |
Height(m) |
6m |
And the size can be manufactured as your requests.
Feature for the greenhouse
l UV control, it can create the best sunlight environment for plant and shrimp growth.
l Infrared barrier technology, it can provide plant and shrimp most needed infrared light, and to increase the insulation properties of the films in the winter.
l Ultraviolet efficient shielding technology, protect plant from light damage.
l Low running cost than PC sheet and glass greenhouse.
Complementary Equipment
l Environmental protection l Obvious cooling effect
l Irrigation convenient l Anti-corrosion & Anti-aging
l Execellent appearance l Cost saving & Clean air
l Air volume, little noise l Automatic or manual operation
l Lower energy consumption l Resistance the strong sunlight
l Smooth operation, high efficiency l Anti-dripping
