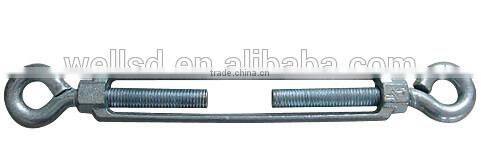

Carbon Steel US Type Turnbuckle
- Material:Carbon Steel
- Fuction:Lifting
- Surface:galv.
- Treatment:Drop Forged
- Size: 1/4"*4"---2-3/4"*24"
- Standard:us type
| Item No | Size(DiameterXTake Up) | Length | Approx Weight | Work load limit Pounds |
| 3001001 | 1/4"x4" | 8-1/4 | 0.3 | 0.5 |
| 3001002 | 5/16"x4-1/2" | 9-9/16 | 0.5 | 0.8 |
| 3001003 | 3/8"x6" | 11-7/8 | 0.75 | 1.2 |
| 3001004 | 1/2"x6" | 13-5/16 | 1.5 | 2.2 |
| 3001005 | 1/2"x9" | 16-5/16 | 1.75 | 2.2 |
| 3001006 | 1/2"x12" | 19-5/16 | 2.18 | 2.2 |
| 3001007 | 5/8"x6" | 15-1/2 | 2.63 | 3.5 |
| 3001008 | 5/8"x9" | 18-1/2 | 3 | 3.5 |
| 3001009 | 5/8"x12" | 21-1/2 | 3.25 | 3.5 |
| 3001010 | 3/4"x6" | 17 | 3.75 | 5.2 |
| 3001011 | 3/4"x9" | 20 | 4.5 | 5.2 |
| 3001012 | 3/4"x12" | 23 | 5.75 | 5.2 |
| 3001013 | 3/4"x18" | 29 | 7 | 5.2 |
| 3001014 | 7/8"x6" | 18 | - | 7.2 |
| 3001015 | 7/8"x12" | 24-5/8 | 8.38 | 7.2 |
| 3001016 | 7/8"18" | 30-5/8 | 10.25 | 7.2 |
| 3001017 | 1"x6" | 20-5/8 | - | 10 |
| 3001018 | 1"x12" | 26-5/8 | 11.25 | 10 |
| 3001019 | 1"x18" | 32-5/8 | 14 | 10 |
| 3001020 | 1"x24" | 38-5/8 | 17 | 10 |
| 3001021 | 1-1/4"x6" | 20 | - | 15.2 |
| 3001022 | 1-1/4"x12" | 29-7/8 | 19 | 15.2 |
| 3001023 | 1-1/4"x18" | 35-7/8 | 24.1 | 15.2 |
| 3001024 | 1-1/4"x24" | 41-7/8 | 25 | 15.2 |
| 3001025 | 1-1/2"x6” | 22-1/8 | - | 21.4 |
| 3001026 | 1-1/2"x12" | 32-3/8 | 27 | 21.4 |
| 3001027 | 1-1/2"x18" | 38-3/8 | 31.2 | 21.4 |
| 3001028 | 1-1/2"x24" | 44-3/8 | 38.2 | 21.4 |
| 3001029 | 1-3/4"x6" | - | - | 28 |
| 3001030 | 1-3/4"x18" | 41-3/4 | 45 | 28 |
| 3001031 | 1-3/4"x24" | 47-3/4 | 48 | 28 |
| 3001032 | 2"x6" | - | - | 37 |
| 3001033 | 2"x24" | 51-3/4 | 90 | 37 |
| 3001034 | 2-1/2"x6" | - | - | 60 |
| 3001035 | 2-1/2"x24" | 51-1/2 | 183 | 60 |
| 3001036 | 2-3/4"x24" | 61-1/2 | 180 | 75 |

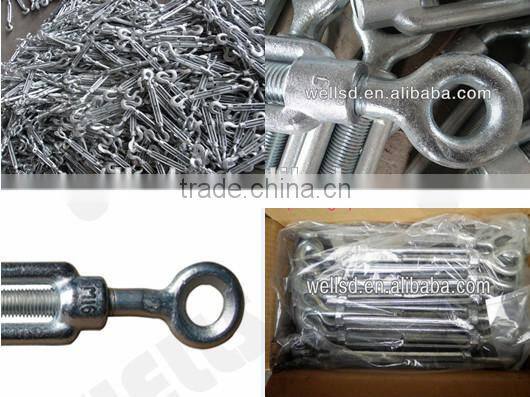

- Product images are in-kind real shoot
- All sizes and types for your choice

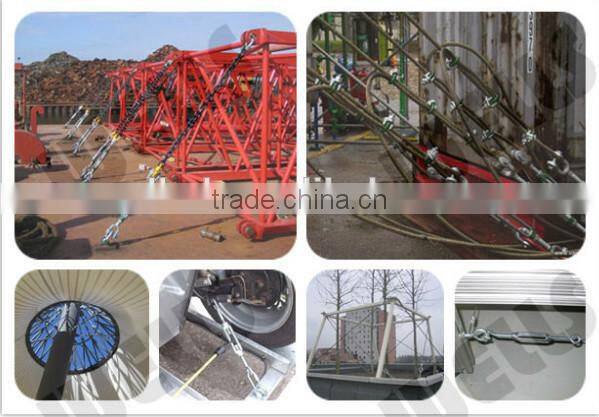

APPLICATION
………………………………………………………………………………………………………………………………………
………………………………………………………………………………………………………………………………………
………………………………………………………………………………………………………………………………………

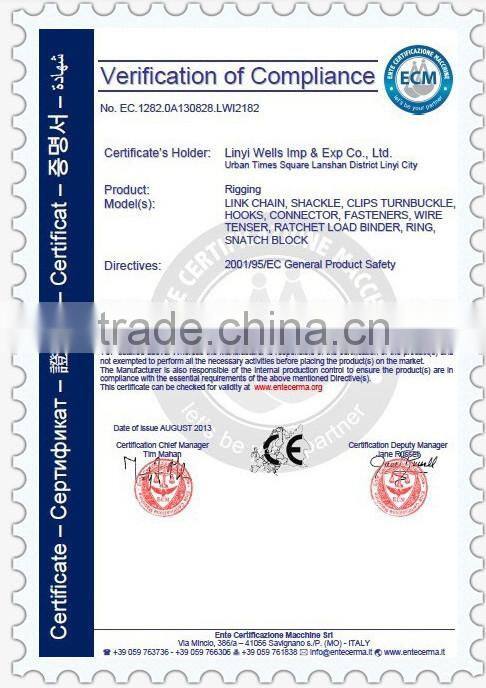

CERTIFICATION
………………………………………………………………………………………………………………………………………
- All turnbuckle can be supplied with test certificates upon request

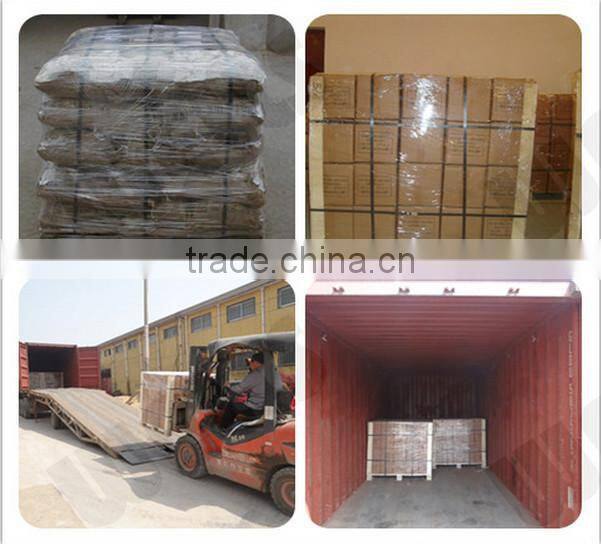

Gunny bag with wooden plate Carton with wooden plate
………………………………………………………………………………………………………………………………………
………………………………………………………………………………………………………………………………………
PAYMENT & SHIPPING
………………………………………………………………………………………………………………………………………
- One-stop shopping
- Before & after service
- ERP system
- Professional trde team
1.Prestige
"Goodwill" covenants us, our work and our supply products to be always in top-quality.
2.Perspective
Every time we emulate to be company with long-time perspective for our customers and also for
our suppliers.
3.Prosperity
We think of it as the integral part of this system. It is directly proportional to first and second condition.
Our 10 years' experience as Rigging Suppliers has given us extensive knowledge and technical expertise
in manufacturing, exporting and distributi...
………………………………………………………………………………………………………………………………………

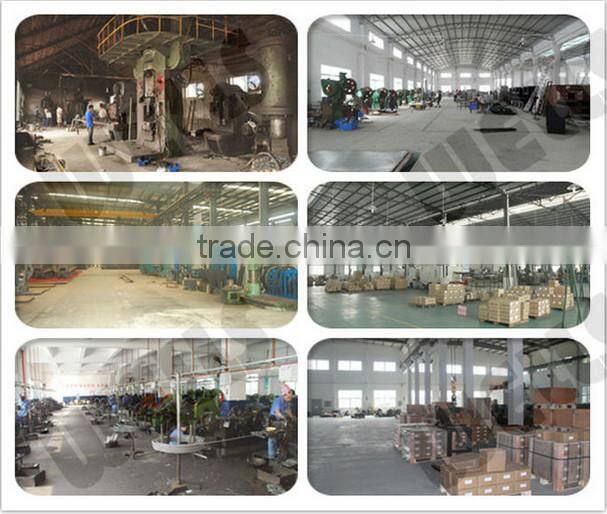

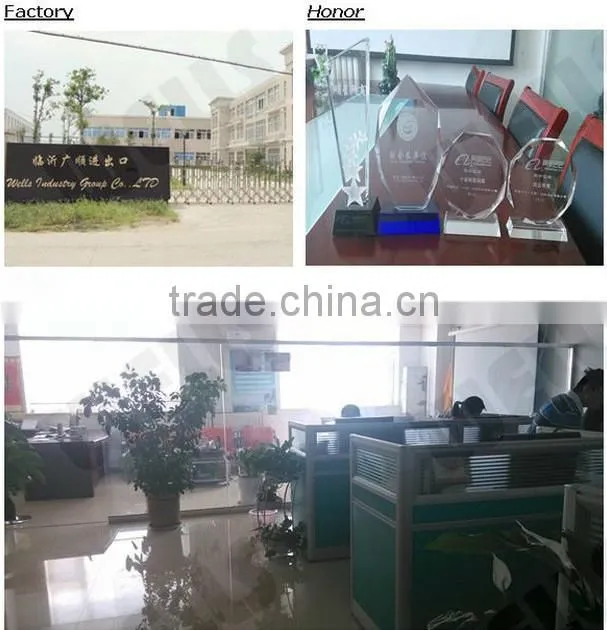

FACTORY VIEW
………………………………………………………………………………………………………………………………………
………………………………………………………………………………………………………………………………………
WORKSHOP
………………………………………………………………………………………………………………………………………
Q-Do you ship worldwide?
A-Yes
Q-What are your dilivery terms?
A- 20-30 days after received deposit 1x20GP Container.
Q-Are you a factory?
A-Yes
Q- Are the measurements and dimensions correct on your products?
A- All sizes are approximates, we always try to keep the dimensions as precise as possible.
Q-What's your payment?
A-Paypal,Visa,L/C,T/T,Escrow etc
Q- Could you supply free samples?
A-Yes
Q-What's transportation do you have?
A- Ocean,air and courier
