Carbon Steel Drop Forged Galvanized Din1480 Turnbuckle
- 5000000 Piece / Pieces per Month
- Qingdao
- T/T Credit Card PayPal
Product Details
Place of Origin: | Shandong, China | Brand Name: | wells, wells | Model Number: | din1480 |
Product Description

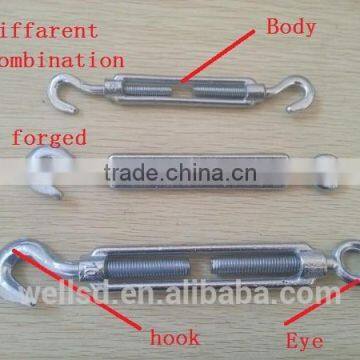

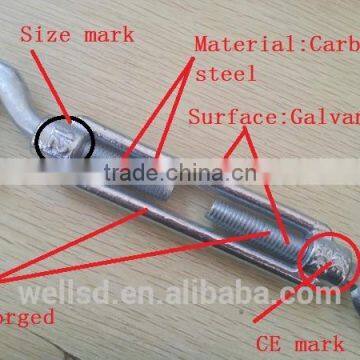

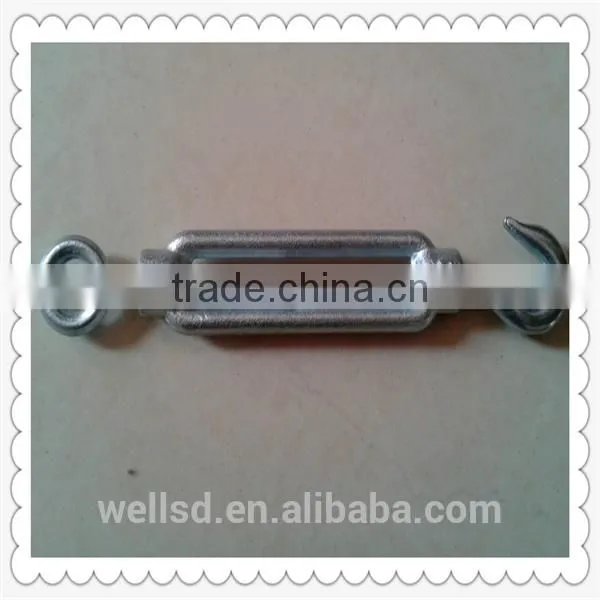

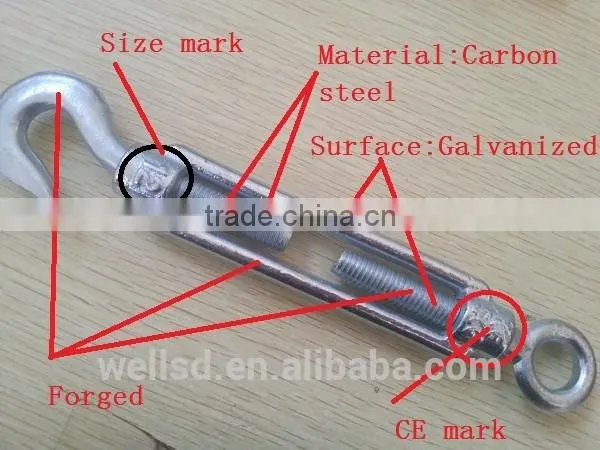

Carbon Steel Drop Forged Galvanized Din1480 Turnbuckle
- Standard: DIN1480
- Surface treatment : hot dip galvanized

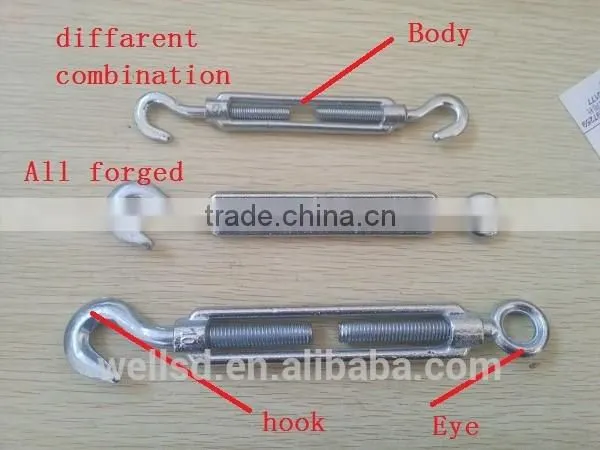

- Technology: drop forged
- Quality Certification: ISO9001:2000 & CE certification
- Material: carbon steel
- Other standard: JIS,BS,GB,AISI,European Type,Korean Type,US Type…
- Delivery time: 15-20 days after received 30% deposit
- OEM and ODM can be available, and free samples are ok
- Packages: in cartons or in gunny bags then on pallets
- Using: wire rope fitting, chain fitting
- Produce process:
Material cutting→ Heating→Forging →Polishing→Production
→Testing→ packing →Delivery
- Samples can be available for free

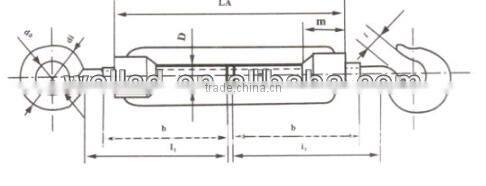

Dimension | Permissible load | Weight | LA | m | 12 | b | di | da | i | |
mm | kg | N | kg/100pcs | mm | mm | mm | mm | mm | mm | mm |

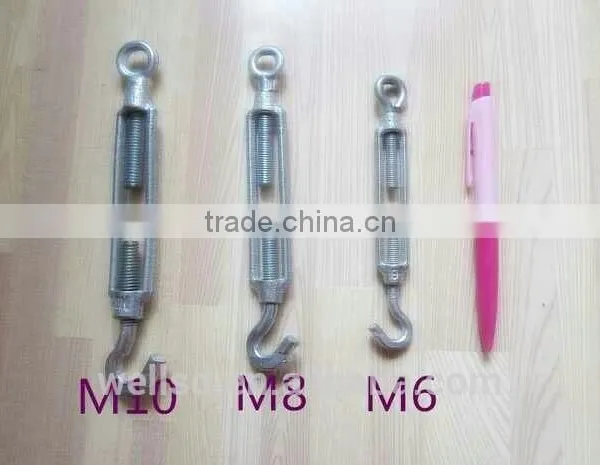

M6 | 230 | 2250 | 7.8 | 110 | 10 | 60 | 53 | 10 | 20 | 4.5 |
M8 | 418 | 4100 | 14.8 | 110 | 14 | 60 | 55 | 12 | 26 | 6.5 |
M10 | 663 | 6500 | 29.4 | 125 | 20 | 65 | 60 | 14 | 30.5 | 8 |
M12 | 948 | 9300 | 36.3 | 125 | 21 | 75 | 70 | 18 | 37.5 | 12.5 |
M16 | 1804 | 17700 | 91 | 170 | 27 | 100 | 90 | 22 | 48 | 13 |
M20 | 2752 | 27000 | 156 | 200 | 34 | 115 | 100 | 25 | 51 | 20 |
M24 | 3996 | 39200 | 325 | 255 | 39 | 140 | 130 | 28 | 66 | 27 |
M30 | 6371 | 62500 | 415 | 255 | 45 | 145 | 130 | 35 | 83 | 31 |
M32 | 6585 | 64600 | 595 | 295 | 55 | 160 | 150 | 36.5 | 88 | 30 |
M36 | 9276 | 91000 | 745 | 295 | 55 | 160 | 150 | 44 | 104 | 40 |
M38 | 9572 | 93900 | 1076 | 330 | 63 | 185 | 170 | 42 | 104 | 39 |

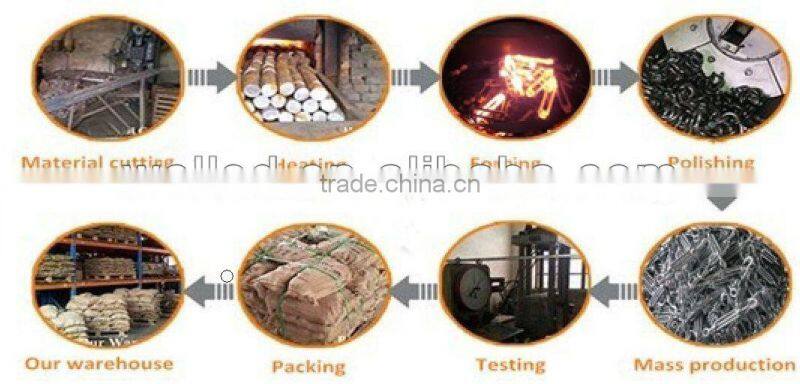

Produce technique:
Material cutting→ Heating→Forging →Polishing→Production
→Testing→ packing →Delivery
Other type of turnbuckles:
Name | Picture | Type | Material | Size | Surface |
US type turnbuckle | Hook&Hook, Eye&Hook, Eye&Eye, Jaw&Eye, Jaw&Jaw | Alloy Steel | 1/4*4, 5/16*4 1/2*6 3/4*12 | hot dip galv | |
JIS turnbuckle | Hook&Eye, Hook&Hook, Eye&Eye | Carbon Steel | 6mm-32mm | hot/elec dip galv | |
Commercial mallealde turnbuckle | Hook&Eye, Hook&Hook, Eye&Eye | Carbon Steel | 5mm-38mm | hot/elec dip galv |

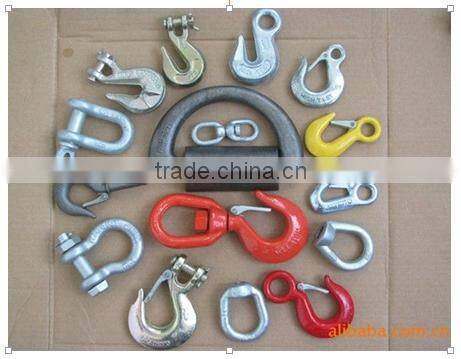

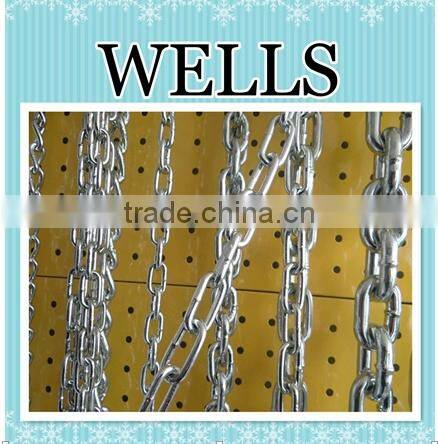

Other products

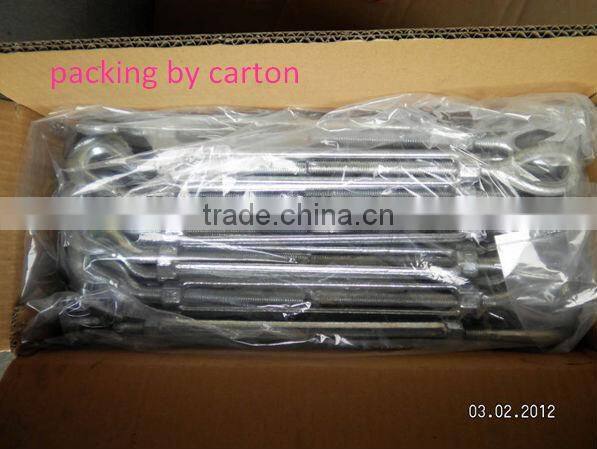

- packing by carton inside use plastic bags
- gunny bags or cartons packing with pallet

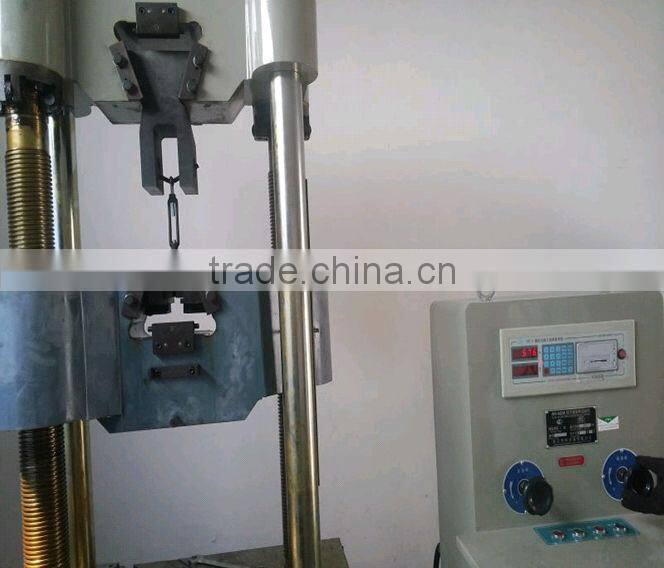

Product testing:
Our CE Certification
Our factory
Our advantage:
- Six produce lines and provide three hundreds tons each month
- Good service, superior quality, and reasonable price
- Authorized by ISO9001:2000, CE certification
- We will give high quality reply within 24 hours
Contact Us
- Linyi Wells Imp&Exp Co., Ltd.
- Contact nameHANNAH Ling
- Phone86-539-7292275
- AddressROOM1627 URBAN TIMES SQUARE LANSHAN DISTRICT LINYI CITY Linyi,Shandong
