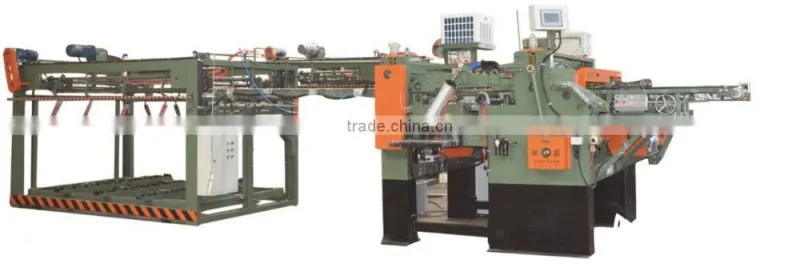

4X8ft automatic plywood core veneer splicing machine / veneer jointing machine
| core veneer composer machine | |||||
| No. | Descriptions | Unit | WELL-VC1 | WELL-VC2 | WELL-VC3 |
| 1 | Knife length | mm | 1350 | 1350 | 1350 |
| 2 | Working veneer width | Max. mm | 1300 | 1300 | 1300 |
| 3 | After jointing size | mm | 1,300x2600mm | 1,300x2600mm | 1,300x2600mm |
| 4 | Veneer thickness | mm | 1.0-4.0mm | 1.0-4.0mm | 1.0-4.0mm |
| 5 | Feeding speed | Max. m/Min | 32(can be adjust) 6-7sheet (4*8ft) | 32(can be adjust) 6-7sheet (4*8ft) | 32(can be adjust) 6-7sheet (4*8ft) |
| 6 | Number of detectors | Point | 14 | 14 | 14 |
| 7 | Total power required | KW | 21 | 21 | 21 |
| 8 | In- feed conveyor (controlled by Servo Motor) | KW | 3 | 3 | 3 |
| 9 | Defect clipper | KW | 2.2 | 2.2 | 2.2 |
| 10 | Waste divider | Air- operated | 50×75 | 50×75 | 50×75 |
| 11 | Out feed conveyor (controlled by Servo Motor) | KW | 3 | 3 | 3 |
| 12 | Dimension clipper | KW | 1.5 | 1.5 | 1.5 |
| 13 | Cooling fan | KW | 0.5 | 0.5 | 0.5 |
| 14 | Water cooler | KW | 0.1 | 0.1 | 0.1 |
| 15 | Water circulation pump | KW | 0.1 | 0.1 | 0.1 |
| 16 | Table lifter for stacker | KW | 2.2 | 2.2 | 2.2 |
| 17 | Transferring conveyor | KW | 0.75 | 0.75 | 0.75 |
| 18 | Stacker belt conveyor | KW | 0.75/0.4 | 0.75/0.4 | 0.75/0.4 |
| 19 | Air consumption | Liter/Min | 60 | 60 | 60 |
| 20 | Total gross weight | Kg | 7600 | 7000 | 5000 |
*Accurate Thickness Control
*Hot Melt Edge - Gluing Applicator
*Automatic Stacker System
*Servo Drive System
Main functions and features
Our factory adopt the Taiwan technology for core veneer composer machine.
And our machines product performance is stable with highly cost effective.
Compared with other factory machine, our advantages as below :
1.The same price for long service life, stable and long-term durability
2.low failure rate with high output, lower frequency for break line and lock veneer
3. high precision trimmed machine and autocorrection system can make precise measure veneer, then the finidhed veneer won not have overlap, crevice.
4. The frame for machine is not easy to distorted, with good after-sale
5. Mainly market : Vietnam Indonesia Turkey, Italy
Veneer Splicing Process
I. Core Veneer Joint
1. After tenderized using PLC controller to cut the edge, joint the core and piece cutting.
2. After the core has been tenderized. The strong blower device can remove the dust one the core veneer.
3. The PLC controller enables cutting more precise, it can available reduce the odd core. It helps
control, monitor and maintenance more convenient.
4. The back-feeding wheel device is synchronizing with feeding speed, to avoid overlap or gap of
the jointing core.
5. It is equipped with hot melt glue yarn for help jointing. Cooling water tank of glue yarn is circle well by the cooler. It gets the best joint.

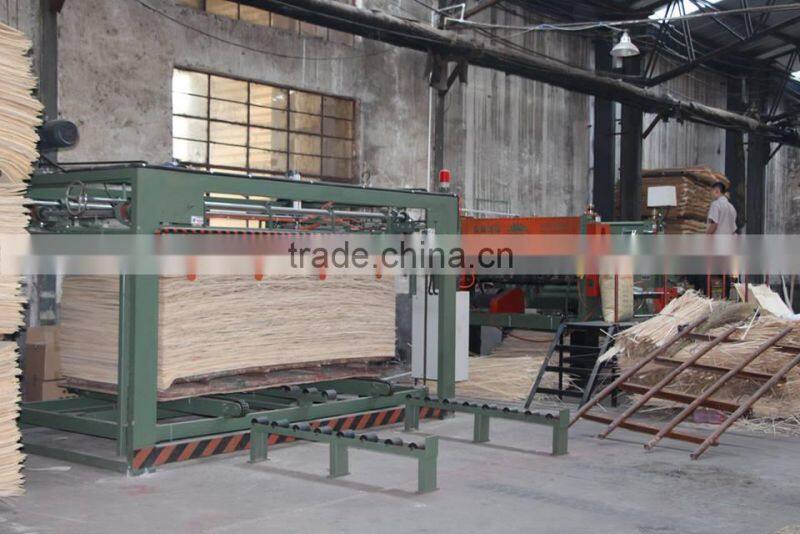

II. Stacker
Composed veneer after cutting, clearing dust, received by stacker.
1. In front of stacker, there is a strong blower to clear dust and clip for after stacking the core can be send to glue spread process directly.
2. The mid pressing bar and the side stacking wheel rack can be moved free for easy adjustment
in the dimension easy to collection.
- ERP system
- One-stop shopping
- Before & after service
- Professional trde team
Prestige
"Goodwill" covenants us, our work and our supply products to be always in top-quality.
Perspective
Every time we emulate to be company with long-time perspective for our customers and also for our suppliers.
Prosperity
We think of it as the integral part of this system. It is directly proportional to first and second condition.
Our 10 years' experience as Rigging Suppliers has given us extensive knowledge and technical expertise
in manufacturing, exporting and distributi...
FAQ
Q-Do you ship worldwide?
A-Yes
Q-What are your dilivery terms?
A- 30-40 days after received deposit 1x20GP Container.
Q-Are you a factory?
A-Yes
Q- Are the measurements and dimensions correct on your products?
A- All sizes are approximates, we always try to keep the dimensions as precise as possible.
Q-What's your payment?
A-Paypal,Visa,L/C,T/T,Escrow etc
Q-What's transportation do you have?
A- Ocean, courier
