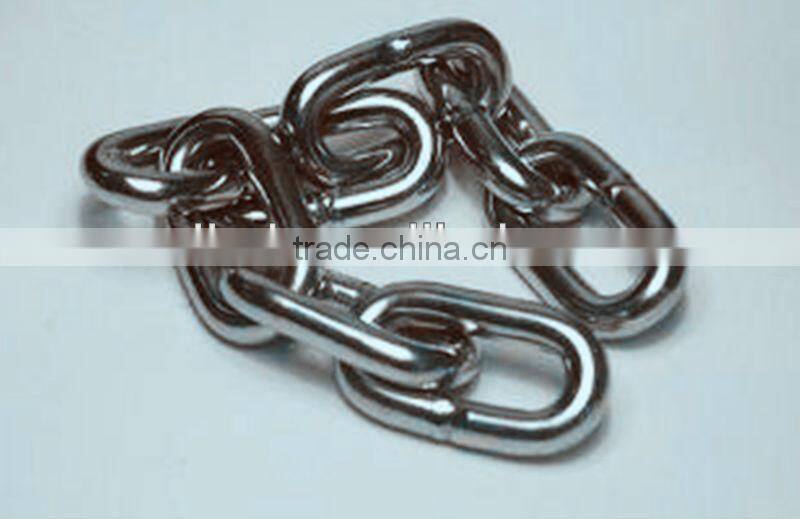

3/16 medium link chain,galv medium chain,gal medium chain
Long link chain standard
Our Advantages: 1.Low MOQ 2.StrictQualityControl 3.Effective Services 4.Trustworthy, Open-mind & Creative Staffs | | ||||||
LINK SPECIFICATION | TEST LOAD | BREAKING LOAD | NET WT PER 200FT(kg) | ||||
D | L | W | |||||
in | mm | mm | mm | kg | kg | B.F. | H.D.G |
1/8 | 3.20 | 23 | 12 | 200 | 400 | 10.40 | 10.7. |
5/32 | 4.00 | 27 | 15 | 300 | 600 | 16.60 | 17.50 |
3/16 | 4.7 | 31 | 17 | 400 | 800 | 22.40 | 23.30 |
7/32 | 5.5 | 32 | 19 | 550 | 1100 | 32.00 | 33.00 |
1/4 | 6.35 | 33 | 21 | 750 | 1500 | 43.50 | 44.80 |
5/16 | 7.94 | 48 | 31 | 1200 | 2400 | 68.00 | 70.00 |
3/8 | 9.50 | 60 | 37 | 1700 | 3400 | 96.00 | 99.00 |
7/16 | 11.11 | 71 | 41 | 2300 | 4600 | 126.00 | 129.00 |
1/2 | 12.70 | 85 | 48.5 | 3000 | 6000 | 167.00 | 172.00 |
5/8 | 15.80 | 114 | 61.5 | 4700 | 9400 | 256.00 | 264.00 |
3/4 | 19.00 | 125 | 75 | 6800 | 13600 | 381.00 | 392.00 |
7/8 | 22.20 | 140 | 88 | 9250 | 18500 | 527.00 | 543.00 |
1 | 25.40 | 155 | 100 | 12150 | 24300 | 696.00 | 716.00 |
short link chain standard
Our Advantages: 1.Low MOQ 2.Strict Quality Control 3.Effective Services 4.Trustworthy, Open-mind & Creative Staffs |
| ||||||
LINK SPECIFICATION | TEST LOAD | BREAKING LOAD | NET WT PER 200FT(kg) | ||||
D | L | W | |||||
in | mm | mm | mm | kg | kg | B.F. | H.D.G |
1/8 | 3.20 | 16 | 12 | 200 | 400 | 11.40 | 11.74 |
5/32 | 4.00 | 18.5 | 14.5 | 300 | 600 | 18.6 | 19.00 |
3/16 | 4.7 | 19 | 17 | 400 | 800 | 26.2 | 27.00 |
7/32 | 5.5 | 20 | 19 | 550 | 1100 | 36.80 | 38.00 |
1/4 | 6.35 | 22 | 21 | 750 | 1500 | 50.00 | 51.50 |
5/16 | 7.94 | 26.5 | 27.2 | 1200 | 2400 | 80.00 | 82.40 |
3/8 | 9.50 | 30 | 32 | 1700 | 3400 | 122.00 | 125.70 |
7/16 | 11.11 | 34 | 36 | 2300 | 4600 | 164.00 | 169.00 |
1/2 | 12.70 | 39 | 43 | 3000 | 6000 | 210.00 | 216.00 |
5/8 | 15.80 | 45 | 53 | 4700 | 9400 | 334.00 | 344.00 |
3/4 | 19.00 | 55 | 63 | 6800 | 13600 | 485.00 | 499.00 |
7/8 | 22.20 | 64 | 74 | 9250 | 18500 | 656.00 | 656.00 |
1 | 25.40 | 73 | 84 | 12150 | 24300 | 870.00 | 870.00 |
Ordianry mild steel link chain include short/medium/long link chain,other specification will be see from our website,
if you need ,we will be pleased to give you other information.
Product View

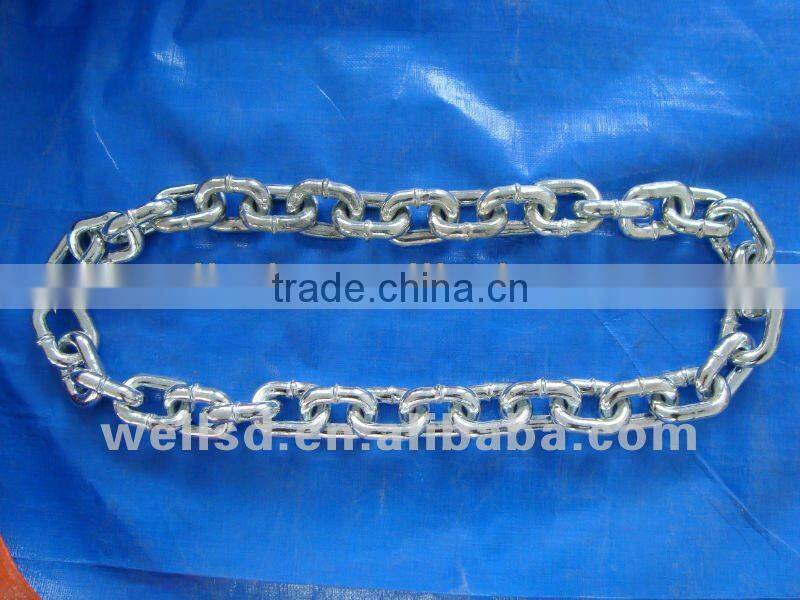

ordinary mild steel short link chain
Yellow belt hook short chain

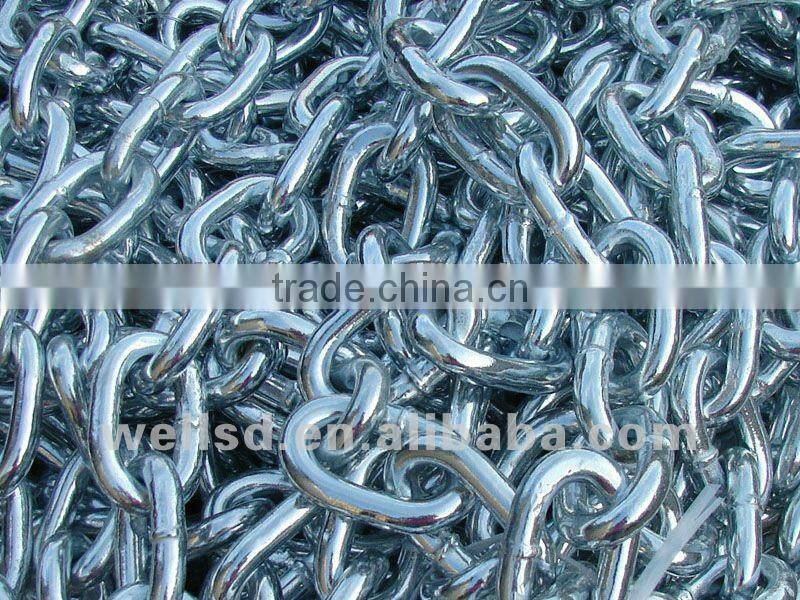

medium link chain
Blue medium link chain

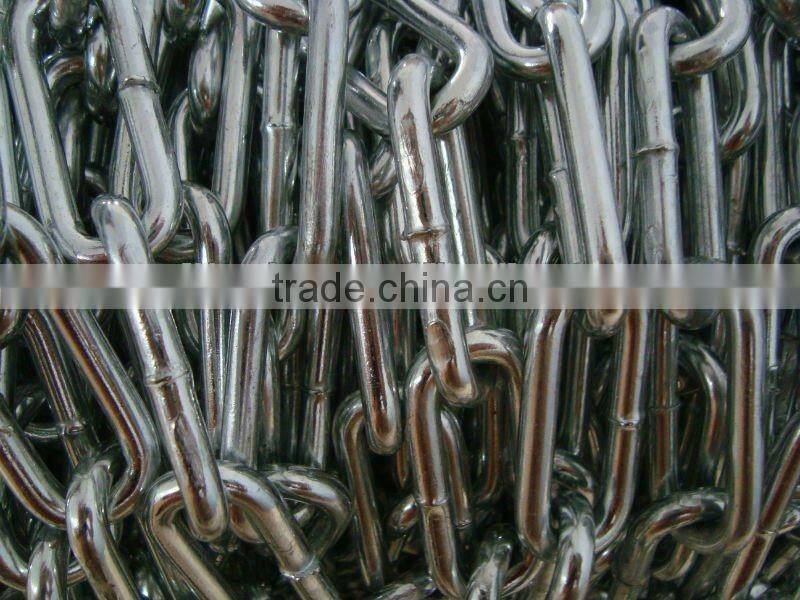

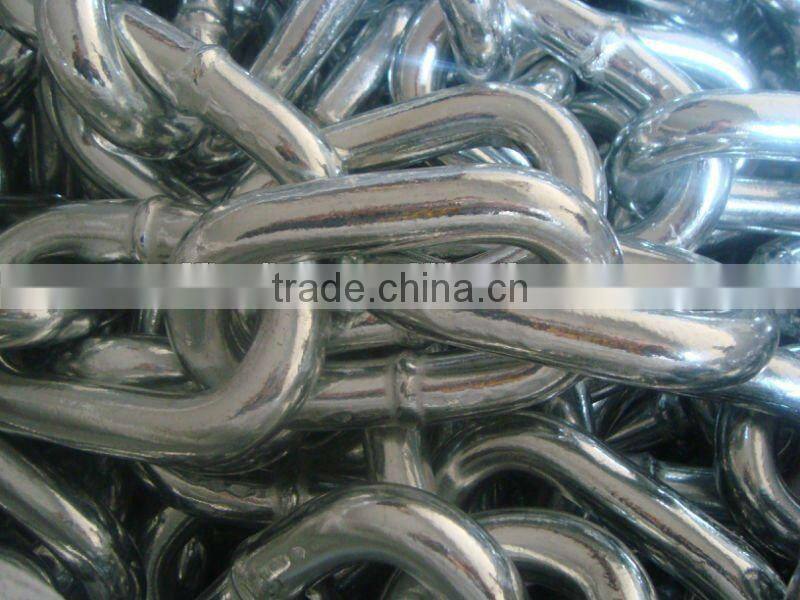

long link chain
-------------------------------------------------------------------------------------------------
Advantage:
Design special sizes if the drawings or pictures are supplied.
OEM and sample order is accepted.
Cut chains into length to meet local market’s preference.
A new business model supply clients with competitive price & reliable quality
Small quantity and trial order can be accepted./Sample order accepted.
We have confidence about the quality of the product.
We can manufacture according to your detail requestments,
when you order our products pleasegive us your detail requestments
------------------------------------------------------------------------------------------------

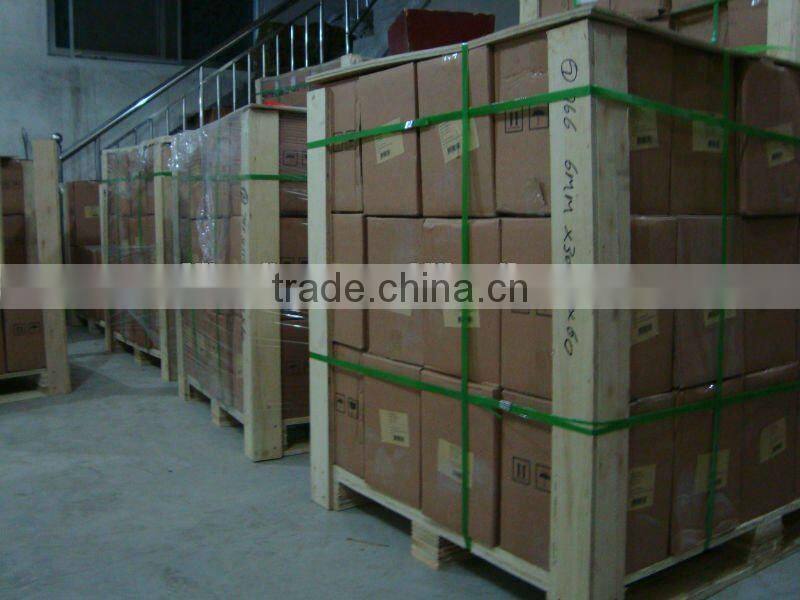

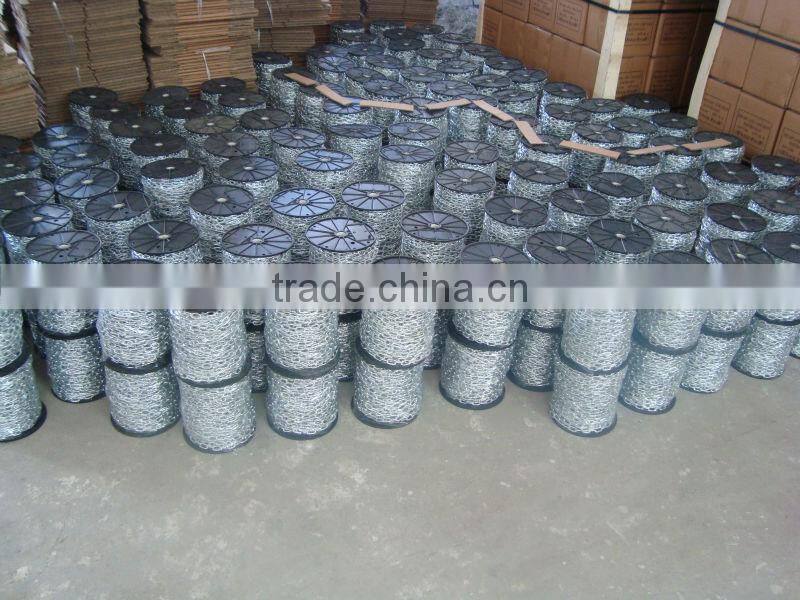

Packing
plastic reel and carton

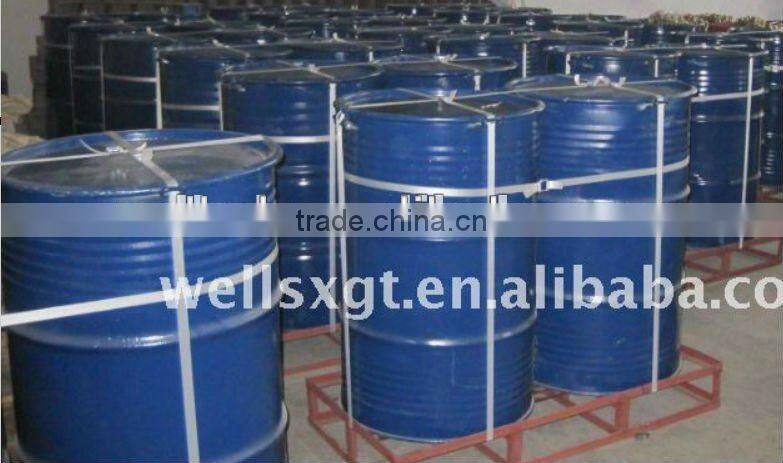

iron drums and pallet
carton and wooden pallet

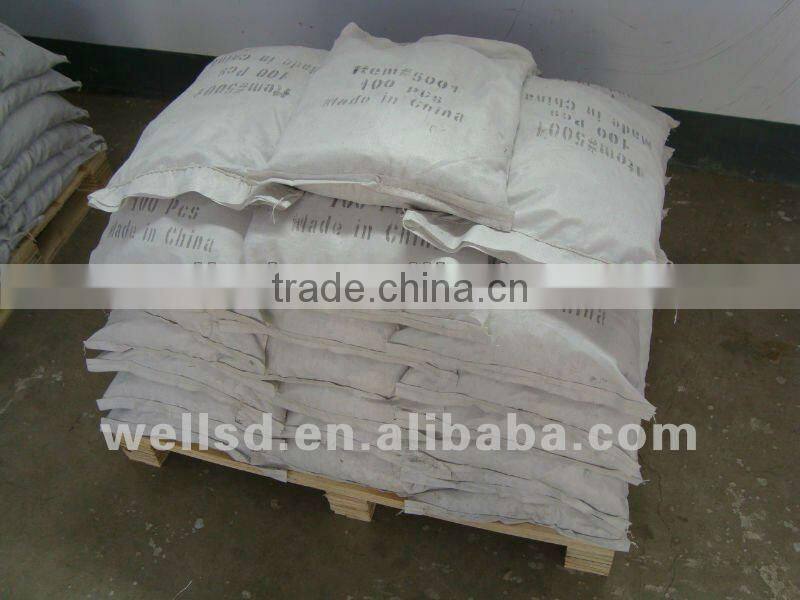

gunny bag and free-fumigate

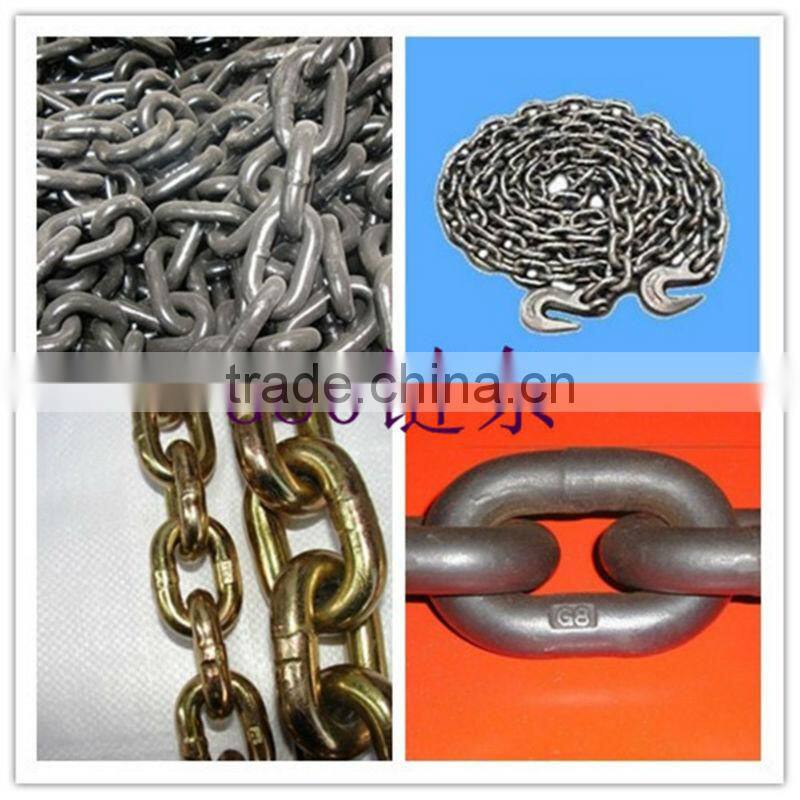

The company other product display
DIN766 link chain

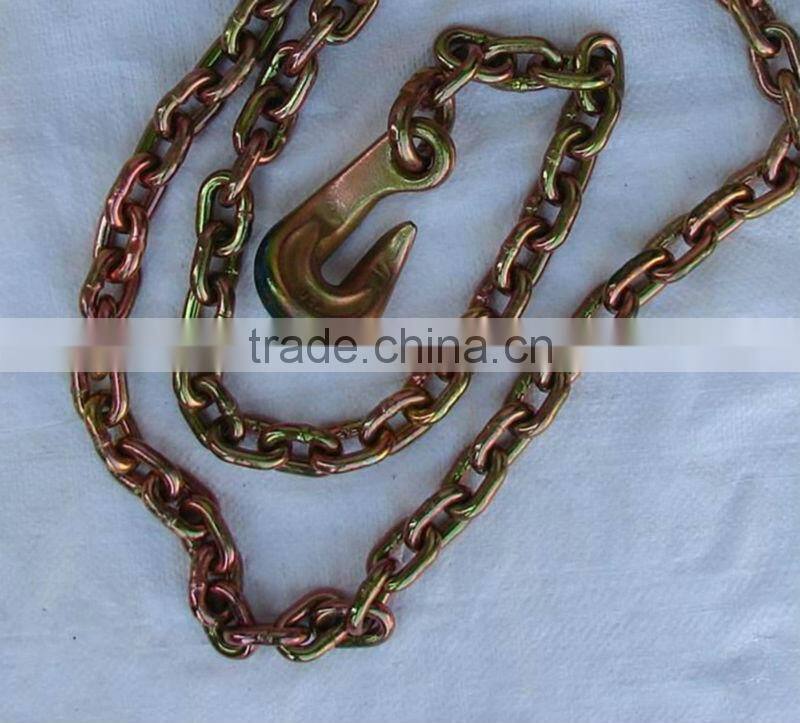

G80 link chain

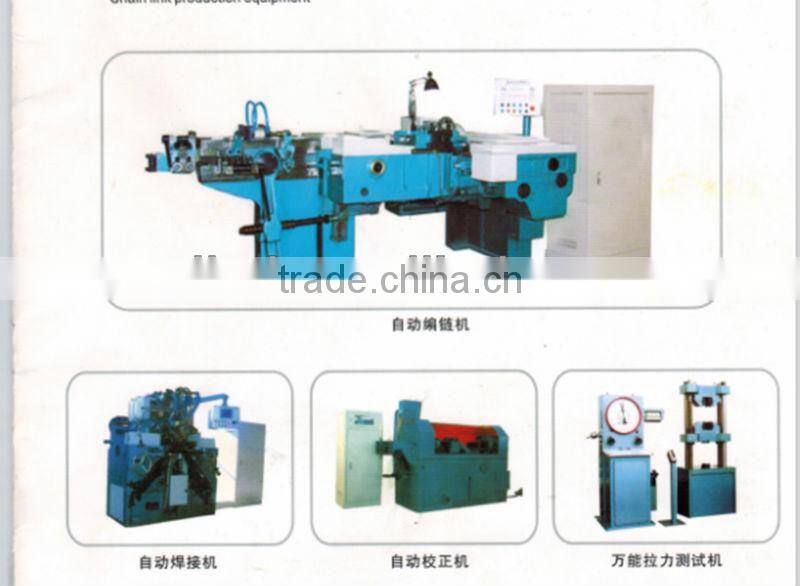

Company Machine
Card
Company introduction
----------------------------------------------------------------------------------------------------------------
Linyi Wells Imp&Exp Co.,LTD is a manufacturer as well as a trading company, which mainly exporting link chain, pipe wrench, bolt cutter, turnbuckle, etc riggings with 8 years experiences.
Link chain catalogue:
including 8 series:welded link chains , open(weldless) link chains , stainless steel link chains , iron/steel link chain animal chains , twisted chains , knotted chains , plastic chains , etc. The diameter ranges from 2.0mm to 32mm.
Link chain function:
Used for hoisting, pulling, enlacing, fishnet falling, decoration and balance for elevator.
Link chain main market:
Including Europe, America, Russian, Asia, the Middle East etc. about 30 countries and regions around the world.
"Quality, Credit and Reputation come first" is the aim of our company.
Welcome new and regular customers to visit our factory, and business negotiations.
-------------------------------------------------------------------------------------------
...
