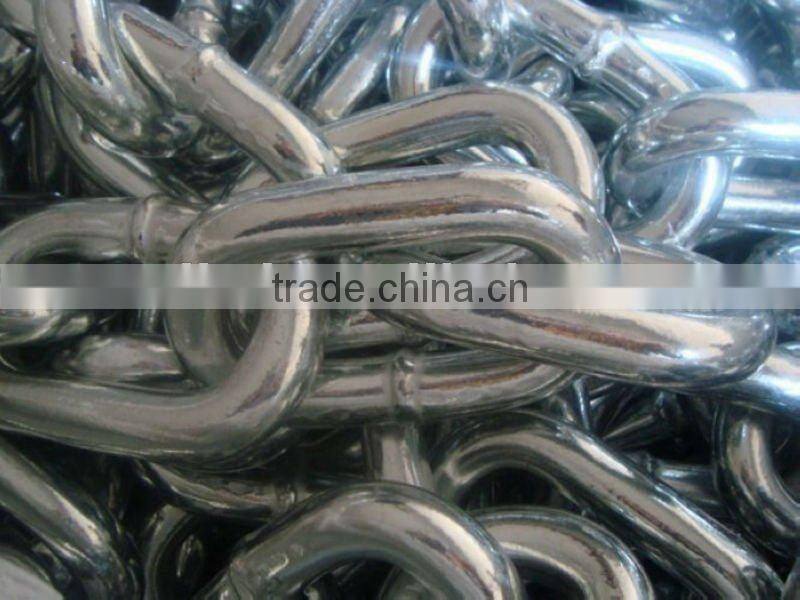

Australian standard long link chain
1.Material: Q195 , Q235 , carbon steel
2.Standard: Australian standard long link chain
3.Surface: electric galvanized , hot galvanized ,black painted , self color
4.Grade: g30 , g43 , g80
5.Price terms: fob , c&f , cif
6.Delivery time: about 30 days after confirmed order
7.OEM is welcome
CHAIN SIZE | WORKING LOAD | LINK DIMENSION | LINKS PER M | LENGTH PER 100KG | |||
S | R | F | B.F | H.D.G | |||
MM | MT | MM | MM | MM | PC | M | M |
5 | 0.19 | 5.00 | 29.3 | 21.8 | 34.1 | 217.0 | 206.0 |
6 | 0.32 | 6.30 | 34.5 | 26.1 | 29.0 | 135.0 | 128.0 |
8 | 0.53 | 8.00 | 41.2 | 31.9 | 24.3 | 82.2 | 78.1 |
10 | 0.83 | 10.00 | 49.0 | 38.7 | 20.4 | 52.9 | 50.2 |
We estimate it even from one piece of drawing.
We produce the product according to needs of the customer from a design .
If there is some annoyance, please talk with us.

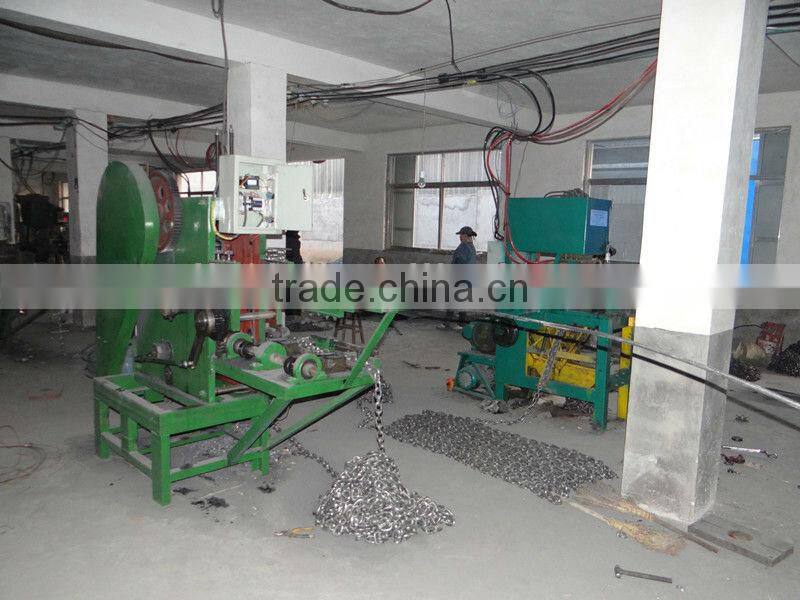

1. Factory workshop
2. Production Process
Raw materials: purchased must pass strict physical, chemical composition of test, after inspection only the qualified raw materials can be used . | |
Heat knitted chain: the heating system of the heating apparatus composed of a heating transformer, the two heating heads and temperature control device . Heating head when in use, both on the loading and unloading are carried out alternately. after the conduction heating, short material parts achieve the predetermined heating temperature, after heating time , raw material rod will conveyed to the flat chain model automatically, when it encounter limit switch, knitted chain equipment will knitted chain automatically. | |
Welded: The welded use flash welding , it will from four directions to the opening portion of chain ring and make electric conduction partly . when the temperature reaches a certain heat degree, turn up metal solution surface , the pressure is applied on both welded junction ends , so that both ends which have reached melting temperature can be fused together . | |
Galvanized: first step is self color roll light, use the plating method, the zinc layer is formed on the surface of the chain , the zinc layer not only beautiful , but also preventing rusting . | |
3. Product View

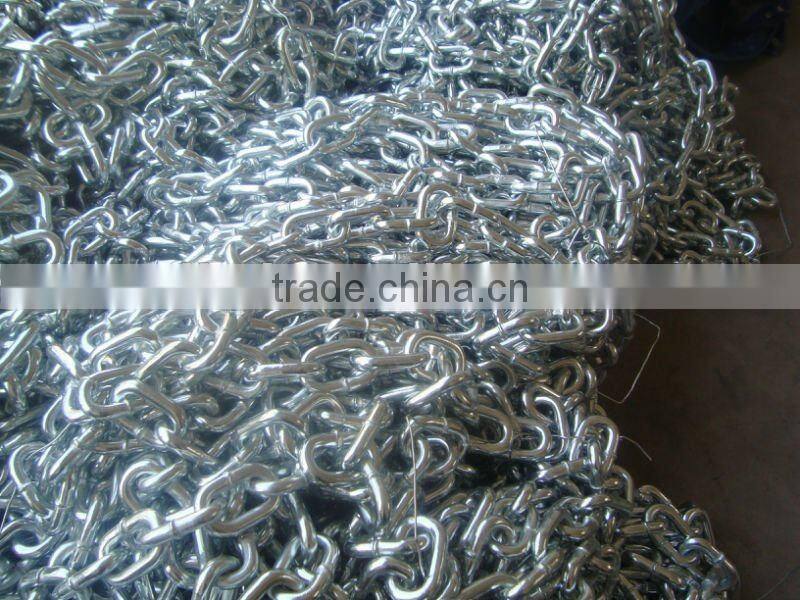

3.1 ordinary mild short link chain

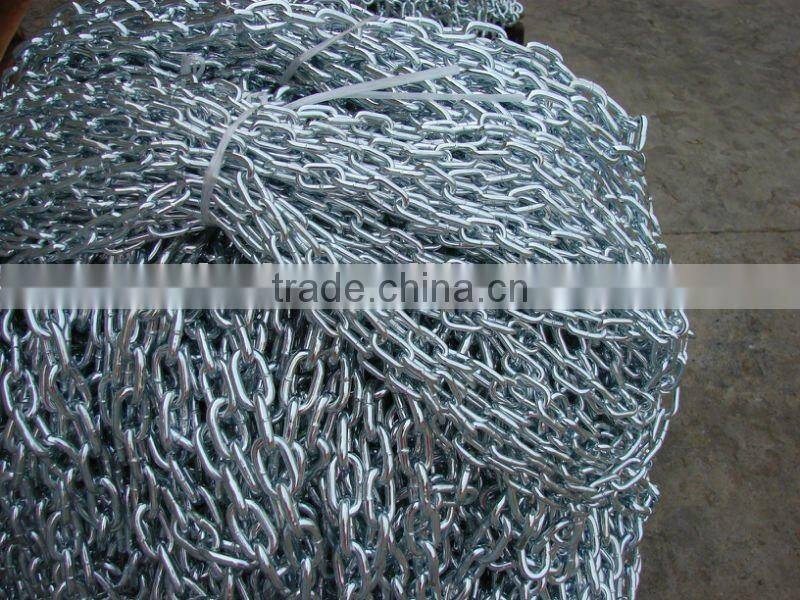

3.2 medium link chain

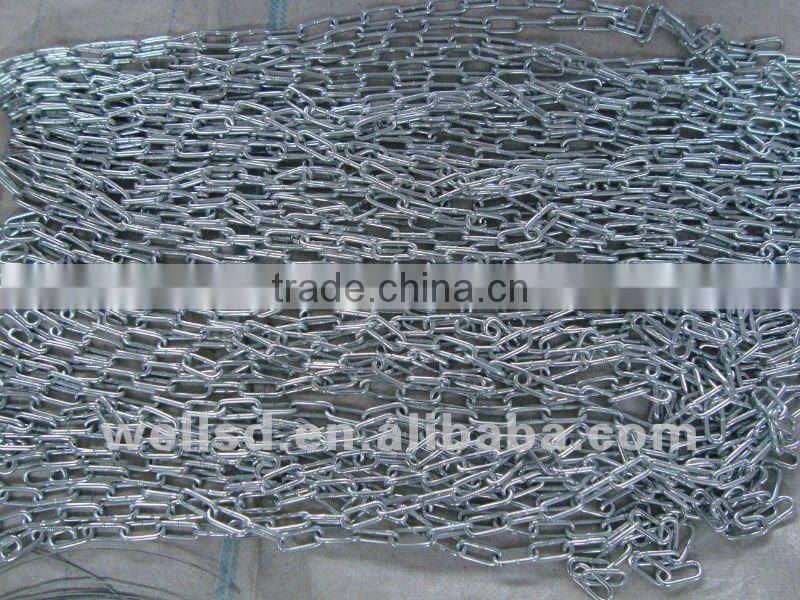

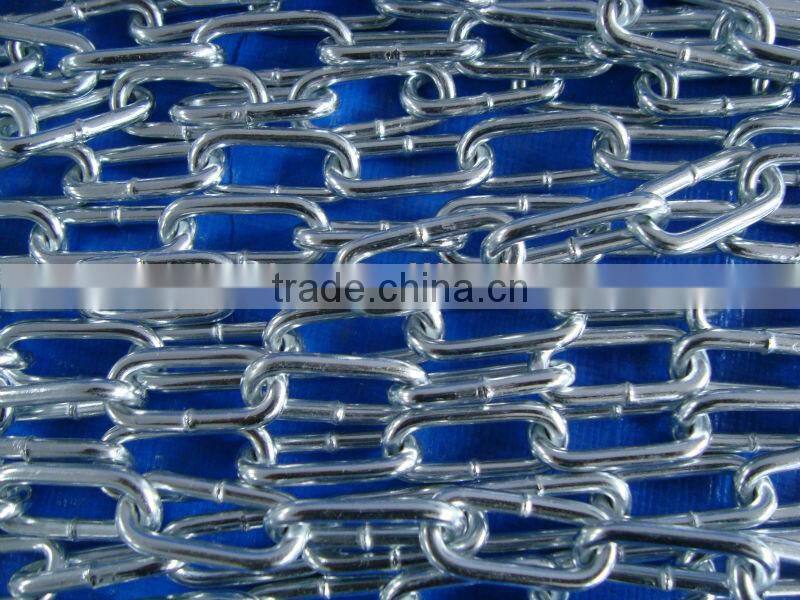

3.3 long link chain
3.4 din5685 link chain
3.5 din763 link chain
4.Packing

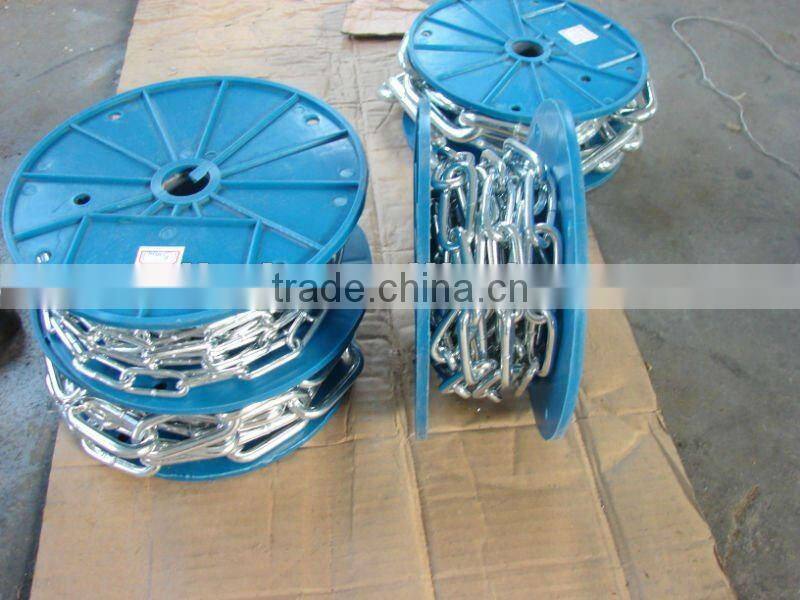

4.1 plastic reel
4.2 carton and wooden pallet
4.3 plastic drums and wooden frame

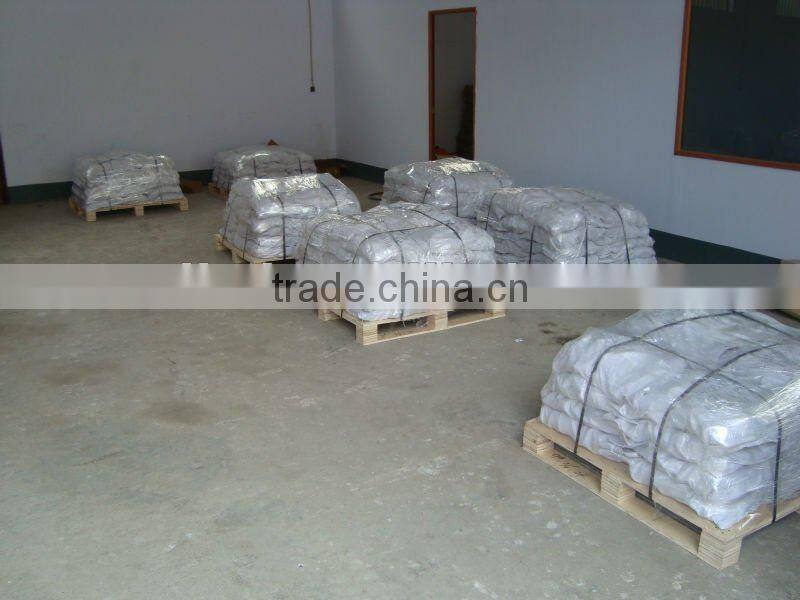

4.4 plastic bag and wooden pallet
....
