7/16 ordinary medium mild steel link chain
1.Diameter: 1/8 to 1
2.Surface: electric galvanized , hot galvanized , blue-white zinc plated , yellow zinc plated , black painted , self color
3.Grade: g30 , g43 , g60 , g70 , g80
4.Price terms: fob , c&f , cif
5.Delivery time: about 30 days after confirmed order
Size | Material Diameter | Working Load Limit | Proof Test | Breaking Force Minimum | Max Length Per 100 Links | Max Weight Per 100 Feet |
| |||||
inch | inch | mm | lbs | kg | lbs | kn | lbs | kn | inch | m | lbs | kg |
1/4 | 0.281 | 7.1 | 2600 | 1180 | 4300 | 19.1 | 7750 | 34.5 | 98 | 2.49 | 84 | 38 |
5/16 | 0.343 | 8.7 | 3900 | 1770 | 6400 | 28.5 | 11600 | 51.6 | 110 | 2.79 | 120 | 54 |
3/8 | 0.406 | 10.3 | 5400 | 2450 | 8900 | 39.6 | 16200 | 72.1 | 134 | 3.4 | 176 | 80 |
7/16 | 0.468 | 11.9 | 7200 | 3260 | 11900 | 52.9 | 21500 | 95.6 | 140 | 3.55 | 230 | 104 |
1/2 | 0.531 | 13.5 | 9200 | 4170 | 15300 | 68.1 | 27600 | 122.8 | 150 | 4.06 | 300 | 136 |
5/8 | 0.656 | 16.7 | 14200 | 6200 | 21200 | 94 | 42400 | 188 | 194 | 4.92 | 425 | 193 |

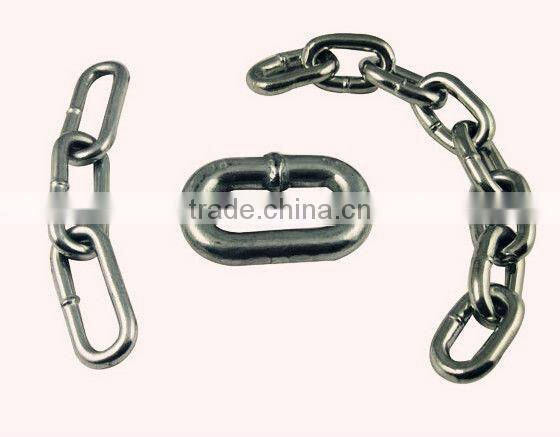

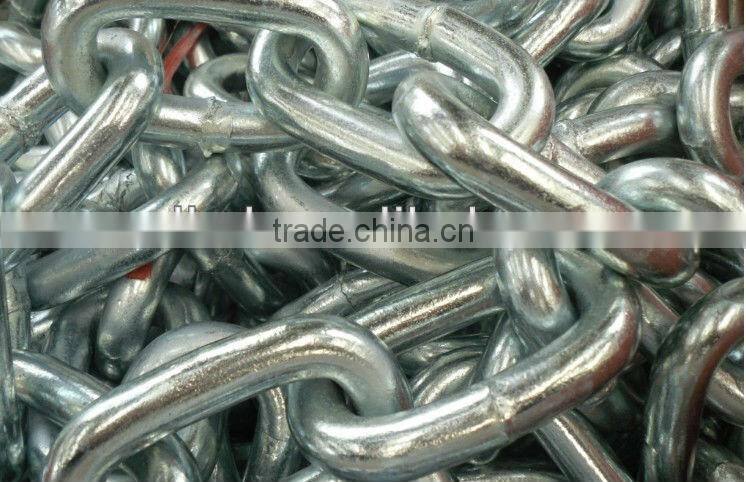

Picture Show of 7/16 ordinary medium mild steel link chain
Q-Do you ship worldwide?
A-Yes, 7/16 ordinary medium mild steel link chain can be shipped worldwide.
Q-What are your dilivery terms?
A- 20-30 days after received deposit 1x20GP Container.
Q-Are you a factory?
A-Yes, we are a 7/16 ordinary medium mild steel link chain factory.
Q- Are the measurements and dimensions correct on your products?
A- All 7/16 ordinary medium mild steel link chain sizes are approximates, we always try to keep the dimensions as precise as possible.
Q-What's your payment?
A-Paypal,Visa,L/C,T/T,Escrow etc.
Q-What's transportation do you have?
A- Ocean,air and courier
