Bigger link European type master link
product data
--------------------------------------------------------------------------------------
Material | alloy steel |
| Feature | Weldless,Painted & self-colored |
| MOQ | 500 pcs |
| Use | Mining, machinery, ports, building, etc. The lifting and hoisting |
| Payment | T/T,L/C |
| Origin | China mainland |
| Quality certification | ISO9001 |
| Business type | Manufacturer |
| Category | Lifting |
| Size | all size (customers' special need is welcomed ) |
| Supply Ability | 500000 piece/pieces per month |
| Packing | carton, or as the clients' request |
| Delivery time | 20-30 days after received deposit |
| Free sample time | in one week |
| OEM | ok |
| process | tempered and quenched |

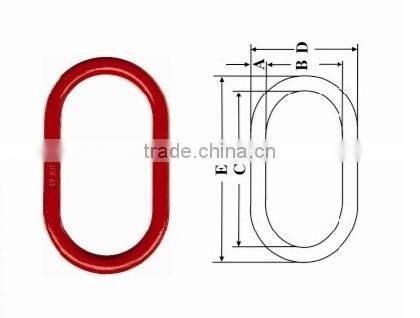

A-342 Master Link
| Size(in.) | Working load limit(1bs) | Weight Each(1bs) | Dimensions(in.) | ||||
| A | B | C | D | E | |||
| 1/2 | 4920 | .82 | .50 | 2.50 | 5.00 | 3.50 | 6.00 |
| 5/8 | 6600 | 1.52 | .63 | 3.00 | 6.00 | 4.25 | 7.25 |
| 3/4 | 10320 | 2.07 | .75 | 2.75 | 5.50 | 4.25 | 7.00 |
| 7/8 | 14300 | 4.20 | .88 | 3.50 | 7.00 | 5.25 | 8.75 |
| 1 | 24360 | 4.85 | 1.00 | 3.50 | 7.00 | 5.50 | 9.00 |
| 1 1/4 | 35160 | 9.57 | 1.25 | 4.38 | 8.75 | 6.88 | 11.25 |
| 1 1/2 | 47800 | 16.22 | 1.50 | 5.25 | 10.50 | 8.25 | 13.50 |
| 1 3/4 | 62520 | 25.22 | 1.75 | 6.00 | 12.00 | 9.50 | 15.50 |
| 2 | 97680 | 37.04 | 2.00 | 7.00 | 14.00 | 11.00 | 18.00 |

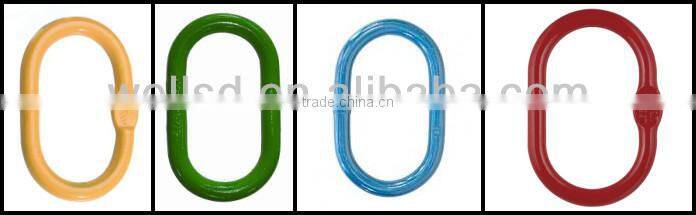

Close-up
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------
- Self-colored,The color can be customized
- All kinds of sizes
- The material of alloy steel
- Forged carbon steel-Quenched and Tempered

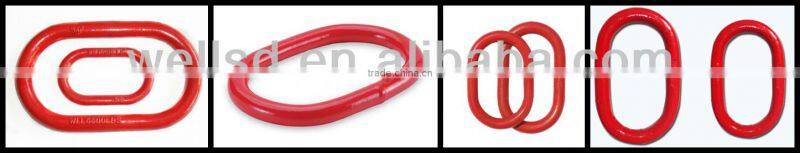

Over View
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------
- Different size for your choice, welcome to consult staff in detail.
- Strict Quality Control
Product use
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------
- Mining, machinery, ports, building, etc. The lifting and hoisting

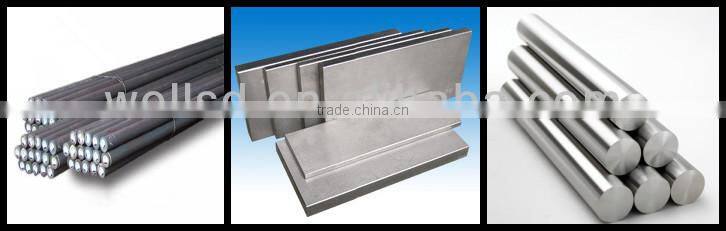

Raw material
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------
- Adopt high quality alloy steel

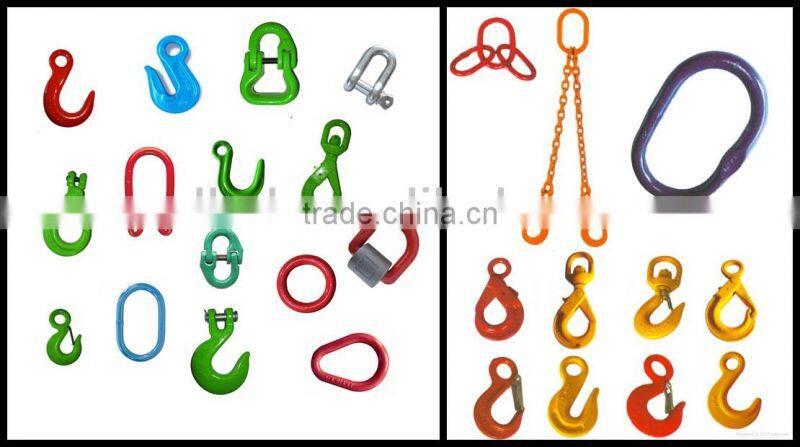

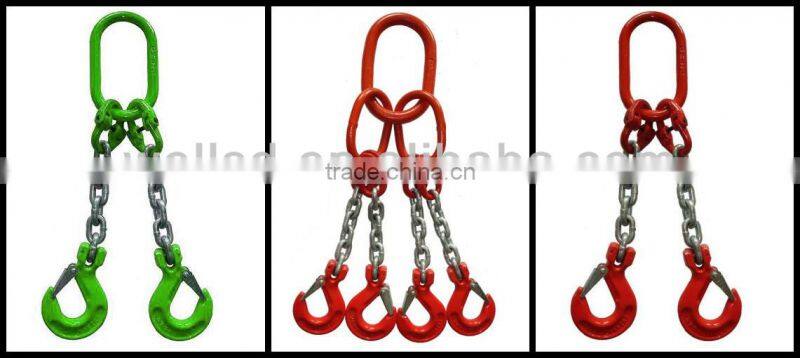

Our other items
------------------------------------------------------------------------------------------------------------------------------------------

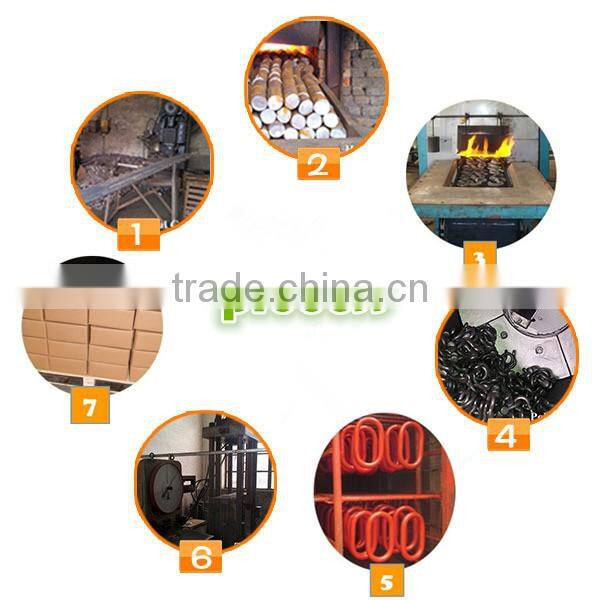

Production process
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------
- Specification of the manufacturing process
- We guarantee the quality of each product
Package
Company profile
--------------------------------------------------------------------------------------
1.Prestige
"Goodwill" covenants us, our work and our supply products to be always in top-quality.
2.Perspective
Every time we emulate to be company with long-time perspective for our customers and also for our suppliers.
3.Prosperity
We think of it as the integral part of this system. It is directly proportional to first and second condition.
Our 10 years' experience as Rigging Suppliers has given us extensive knowledge and technical expertise in manufacturing, exporting and distributi...
Factory view
-------------------------------------------------------------------------------------------------------------------------------------------
- Our factory is located in the beautiful city, linyi city ,shandong province
- Perfect production equipment
- Aggressive, initiative, enthusiasm of the employees
Certificate
-------------------------------------------------------------------------------------------------------------------------------------------
Payment & Shipping(sample)
-------------------------------------------------------------------------------------------------------------------------------------------
Our serinciple: reliable quality,competitive price,prompt delivery
Our service: any mail & enquiry will be replied within 24 hours
Our aim: Always take the customer as the center
Please feel free to ask me if any questions...
